Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new O-ring seal (3) on the vehicle speed sensor (1).
  2. Coat the O-ring seal (3) with clean transmission fluid.
  3. Install the vehicle speed sensor (1) into the transmission case.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolt (2).

    Tighten

    Tighten the bolt to 11 N.m (97 lb in).

  5. Connect the wiring harness electrical connector to the vehicle speed sensor.
  6. Remove the drain pan.
  7. Lower the vehicle.
  8. Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to TRANSMISSION FLUID CHECKING PROCEDURE .

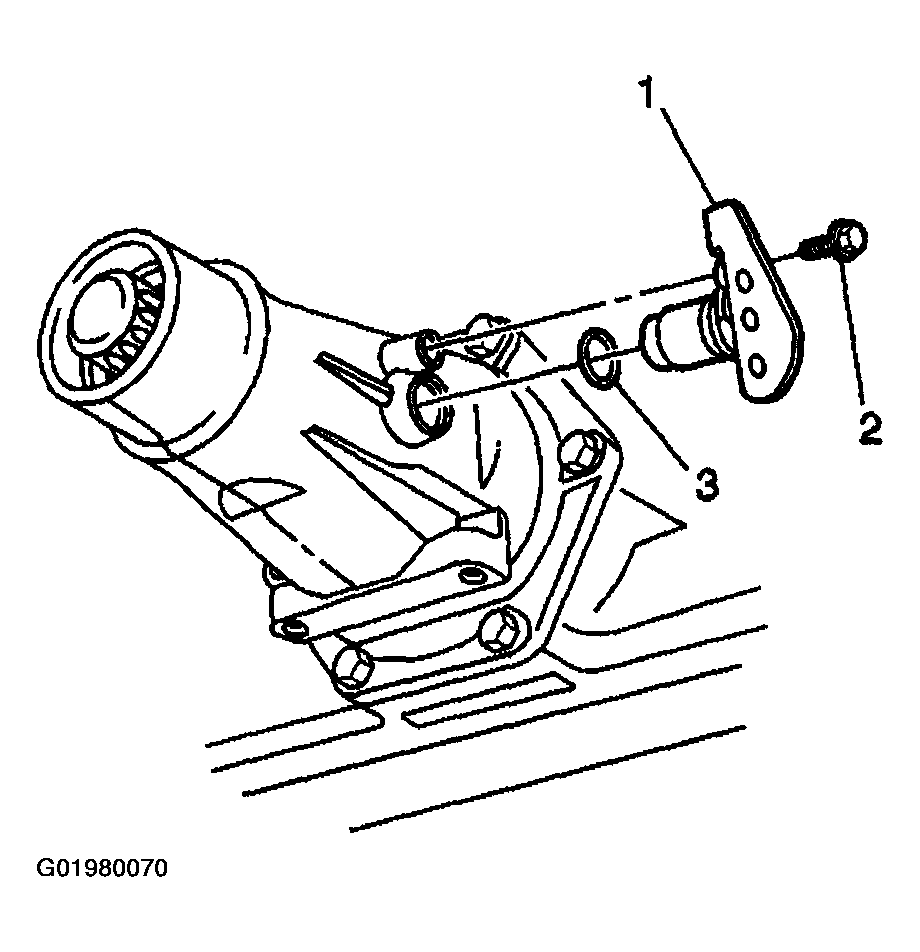

    Fig 1: Installing New O-Ring Seal On Vehicle Speed Sensor
    G01980070Courtesy of GENERAL MOTORS CORP.
