Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the transmission oil pan and filter. Refer to AUTOMATIC TRANSMISSION FLUID/FILTER REPLACEMENT .
  3. Compress the reverse boost valve sleeve into the bore of the oil pump to release tension on the reverse boost valve retaining ring.
  4. Remove the reverse boost valve retaining ring, then slowly release tension on the reverse boost valve sleeve.

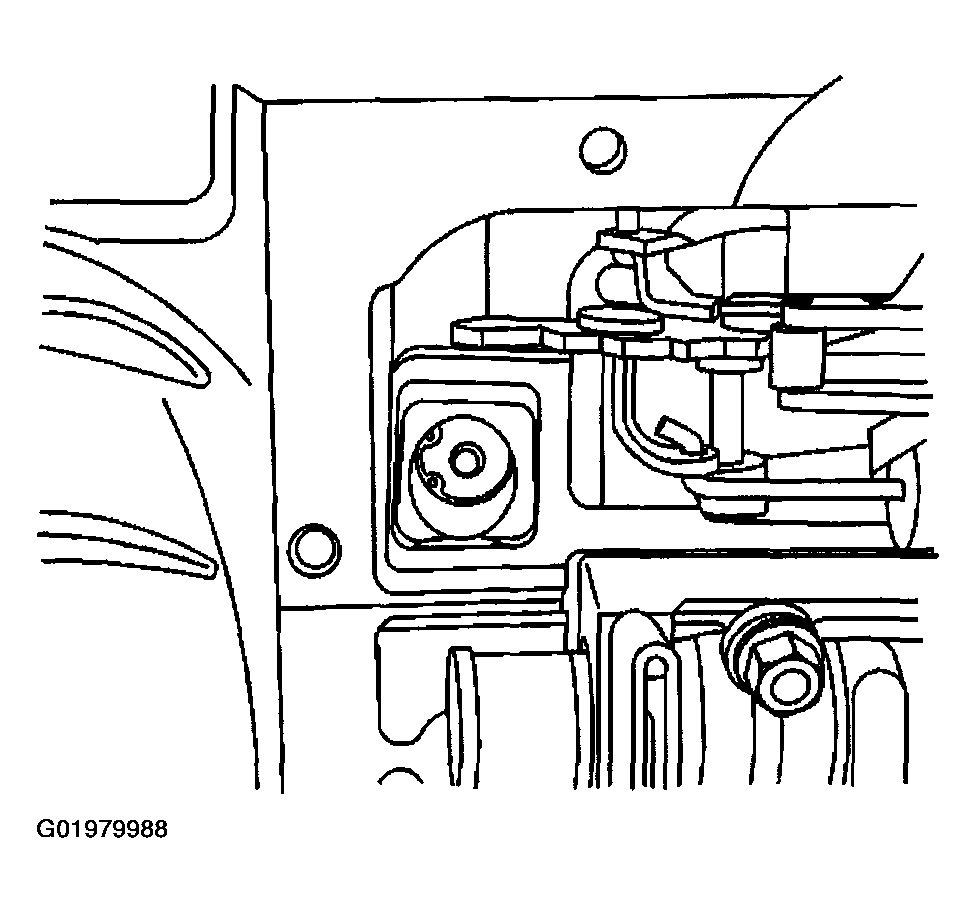

    Fig 1: Transmission Oil Pan & Filter
    G01979988Courtesy of GENERAL MOTORS CORP.
  5. Remove the reverse boost valve sleeve (5) and the reverse boost valve (4).
  6. Remove the pressure regulator isolator spring (3) and the pressure regulator valve spring (2).
  7. Remove the pressure regulator valve (1).

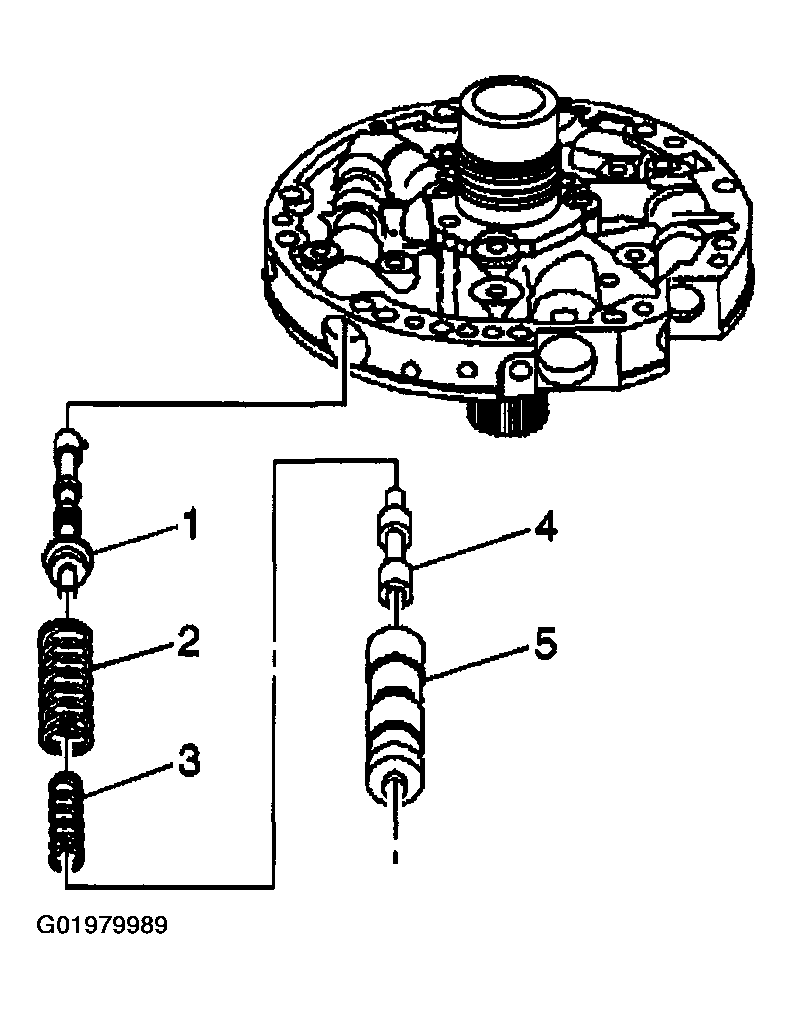

    Fig 2: Pressure Regulator Valve
    G01979989Courtesy of GENERAL MOTORS CORP.
