Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift lever handle and boot. Refer to FLOOR SHIFT CONTROL BOOT REPLACEMENT .
  2. Remove the center console assembly. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (AUTO TRANS)) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (ENVOY)) or CONSOLE REPLACEMENT -- FRONT FLOOR (NON-FULL LENGTH) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (MANUAL TRANS)) in Instrument Panel, Gages and Console.
  3. Disconnect the range selector cable from the shift control assembly. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE REPLACEMENT (COLUMN SHIFT)  or AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE REPLACEMENT (CONSOLE SHIFT) .

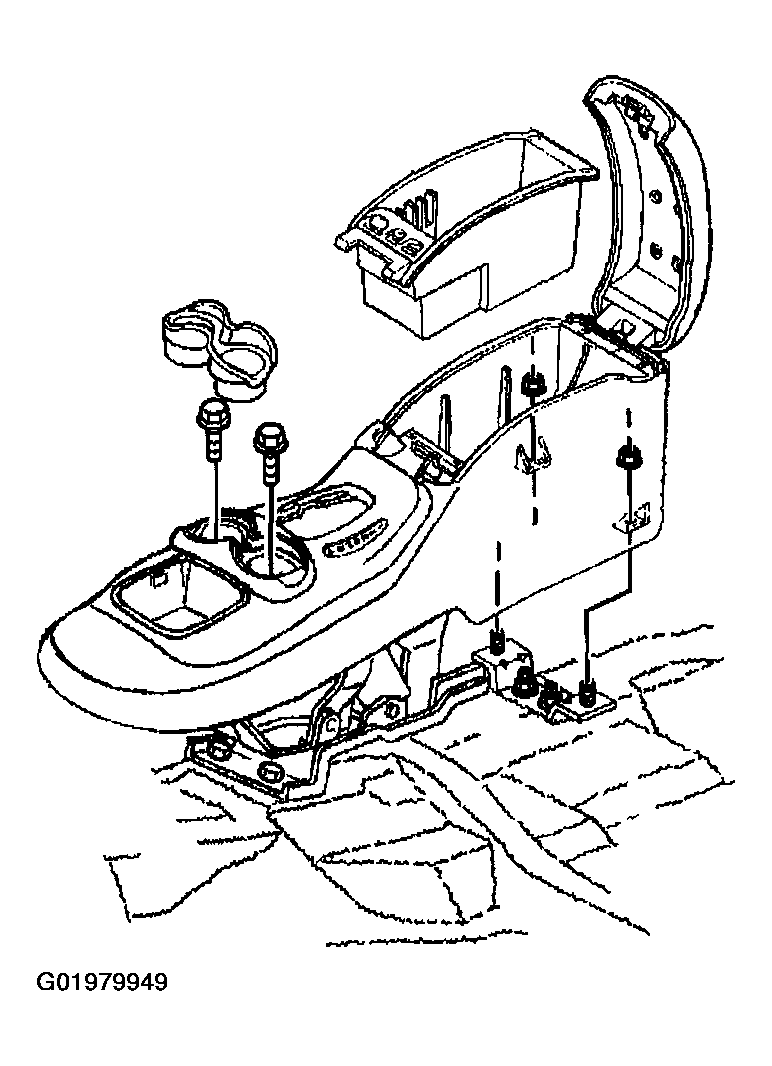

    Fig 1: Center Console Assembly
    G01979949Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts securing the shift controller to the floor panel.
  5. Remove the shift control assembly from the vehicle.

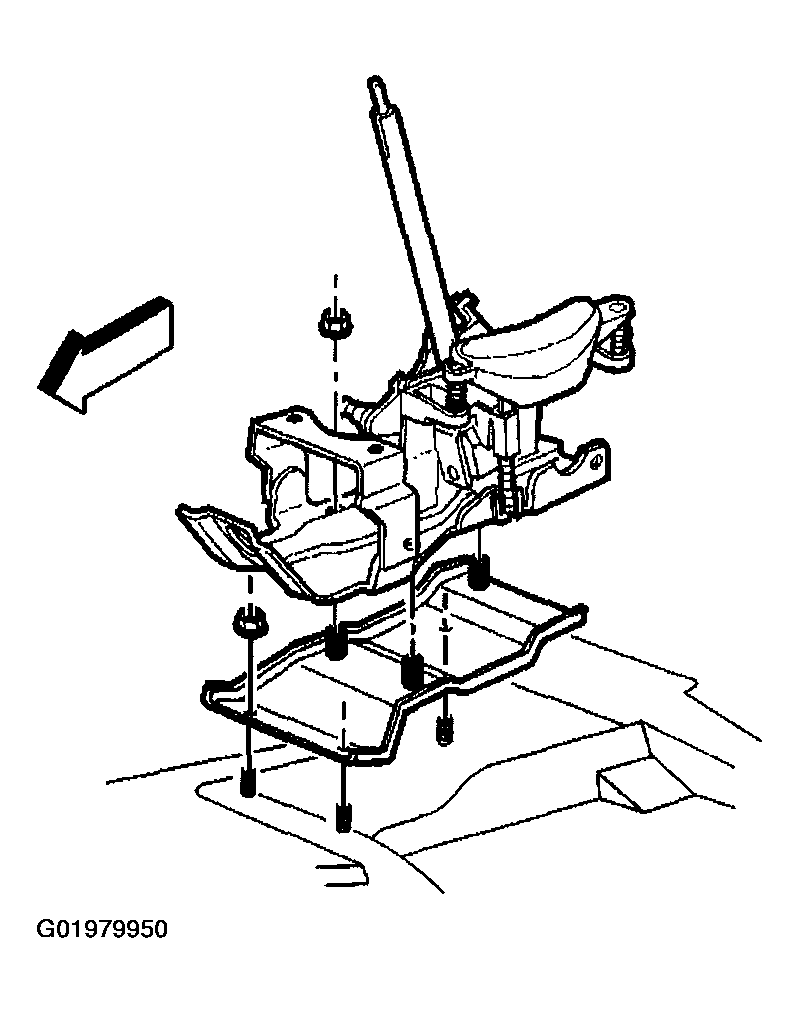

    Fig 2: Removing Nuts Securing Shift Controller To Floor Panel
    G01979950Courtesy of GENERAL MOTORS CORP.
