Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift control assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts securing the shift control assembly to the floor panel.

    Tighten

    Tighten the nuts to 25 N.m (18 lb in).

  3. Install the range selector cable to the shift control assembly. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE REPLACEMENT (COLUMN SHIFT)  or AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE REPLACEMENT (CONSOLE SHIFT) .

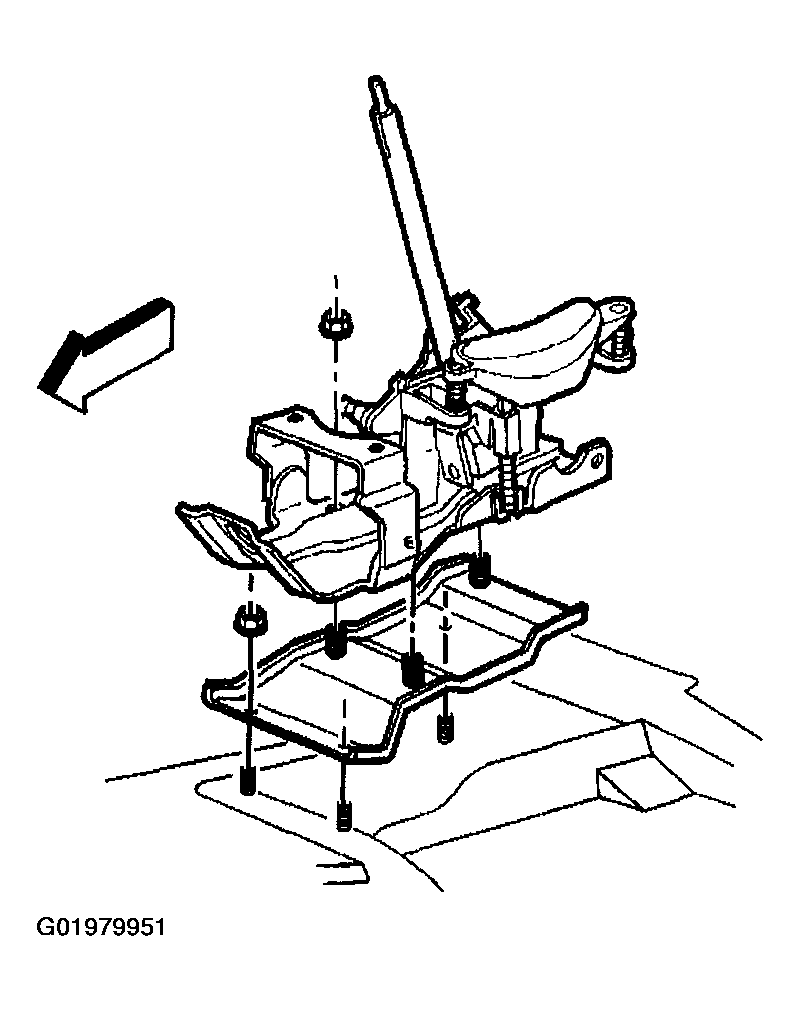

    Fig 1: Installing Nuts Securing Shift Control Assembly To Floor Panel
    G01979951Courtesy of GENERAL MOTORS CORP.
  4. Install the center console assembly. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (AUTO TRANS)) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (ENVOY)) or CONSOLE REPLACEMENT -- FRONT FLOOR (NON-FULL LENGTH) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (MANUAL TRANS)) in Instrument Panel, Gages and Console.
  5. Install the shift lever handle and boot. Refer to FLOOR SHIFT CONTROL BOOT REPLACEMENT

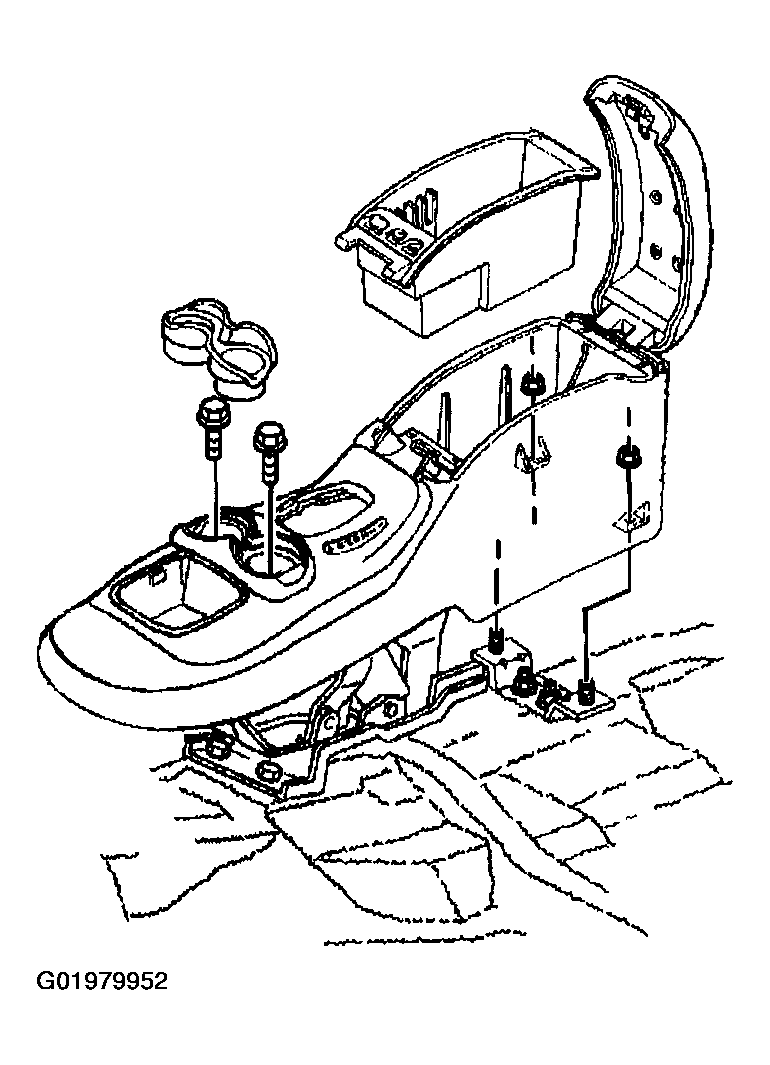

    Fig 2: Center Console Assembly
    G01979952Courtesy of GENERAL MOTORS CORP.
