Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new seal into the transmission case.
  2. Lubricate the seal with transmission fluid and install the filler tube into the seal.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolt securing the filler tube to the transmission torque converter housing.

    Tighten

    Tighten the bolt to 47 N.m (35 lb ft).

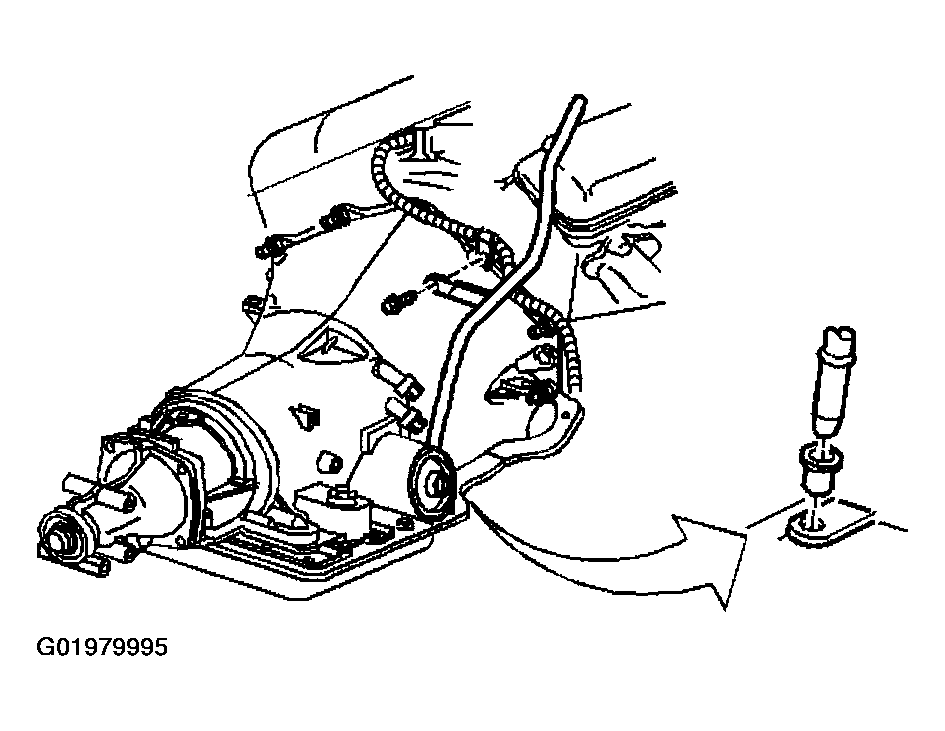

    Fig 1: Installing Filler Tube & Seal To Vehicle
    G01979995Courtesy of GENERAL MOTORS CORP.
  4. Raise the transmission.
  5. Install the transmission support. Refer to TRANSMISSION SUPPORT REPLACEMENT (RWD) or TRANSMISSION SUPPORT REPLACEMENT (4WD) in Frame and Underbody.
  6. Remove the transmission jack.
  7. If the vehicle is equipped with a 2.2L engine, proceed to step  9.
  8. Install the rear output shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE or PROPELLER SHAFT REPLACEMENT - TWO PIECE in Propeller Shaft.
  9. Install the exhaust manifold pipe. Refer to EXHAUST MANIFOLD PIPE REPLACEMENT in Engine Exhaust.
  10. Lower the vehicle.

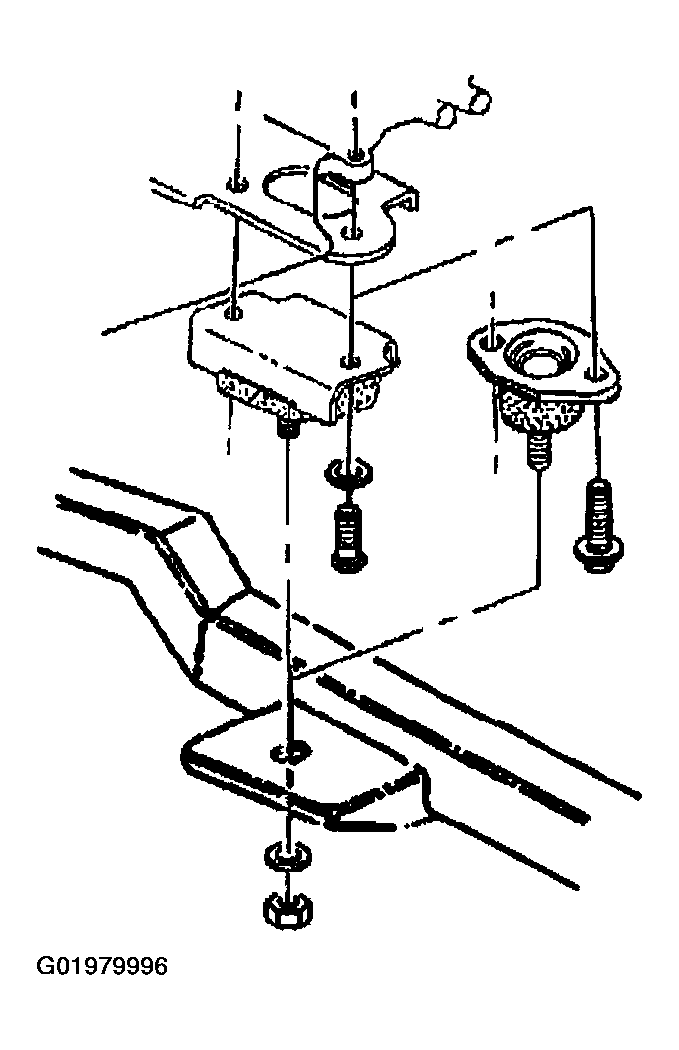

    Fig 2: Transmission Support
    G01979996Courtesy of GENERAL MOTORS CORP.
  11. If the vehicle is equipped with a 2.2L engine, install the bolt securing the dipstick to the exhaust manifold.
  12. Install the bolts securing the oil level indicator tube to the engine.

    Tighten

    Tighten the bolts to 47 N.m (35 lb ft).

  13. Install the transmission oil level indicator.
  14. Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to TRANSMISSION FLUID CHECKING PROCEDURE .

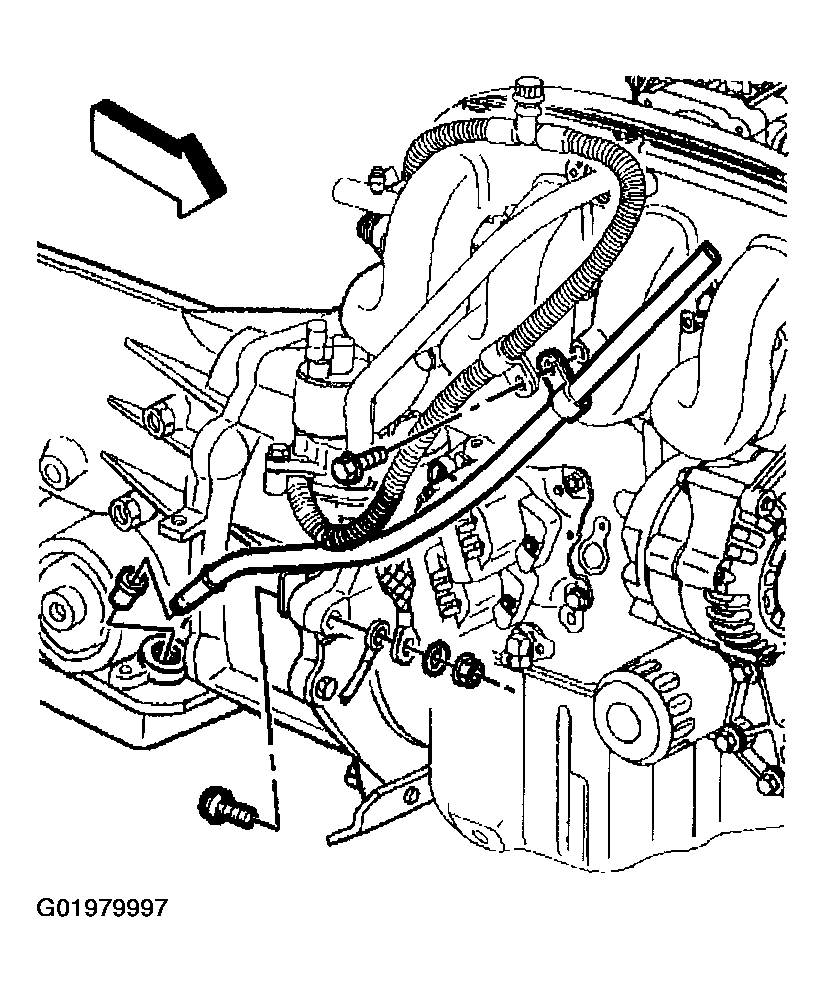

    Fig 3: Installing Bolts Securing Oil Level Indicator Tube To Engine
    G01979997Courtesy of GENERAL MOTORS CORP.
