Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cable through the opening in the floor panel.
  2. Install the grommet to the floor panel.
  3. Install the sound deadening material that covers the cable.

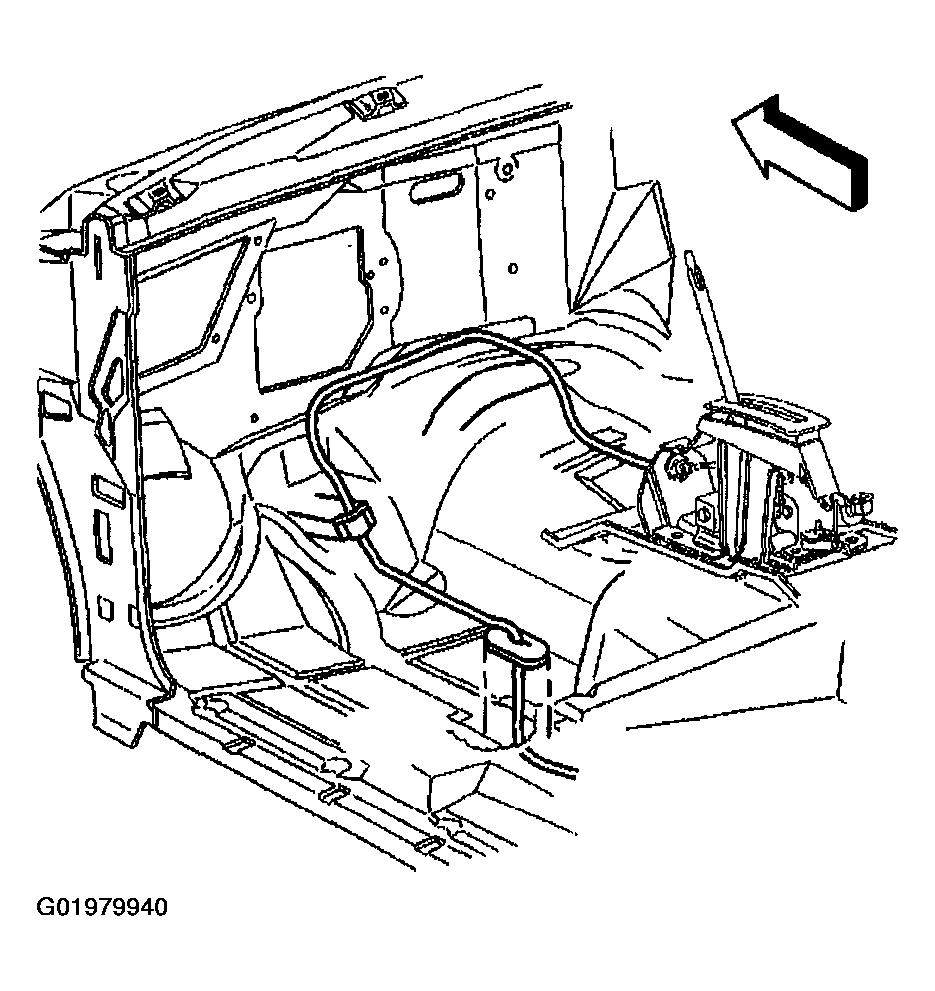

    Fig 1: Installing Cable Through Opening In Floor Panel
    G01979940Courtesy of GENERAL MOTORS CORP.
  4. Install the cable to the controller.
  5. Install the retainer securing the cable to the controller.
  6. Connect the cable end to the controller ball stud.
  7. Install the front mat and carpet. Refer to MAT/CARPET REPLACEMENT -- FRONT FLOOR (EXTENDED CAB) or MAT/CARPET REPLACEMENT -- FRONT FLOOR (UTILITY) in Instrument Panel, Gages, and Console.
  8. Install the console. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (AUTO TRANS)) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (ENVOY)) or CONSOLE REPLACEMENT -- FRONT FLOOR (NON-FULL LENGTH) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (MANUAL TRANS)) in Instrument Panel, Gages, and Console.

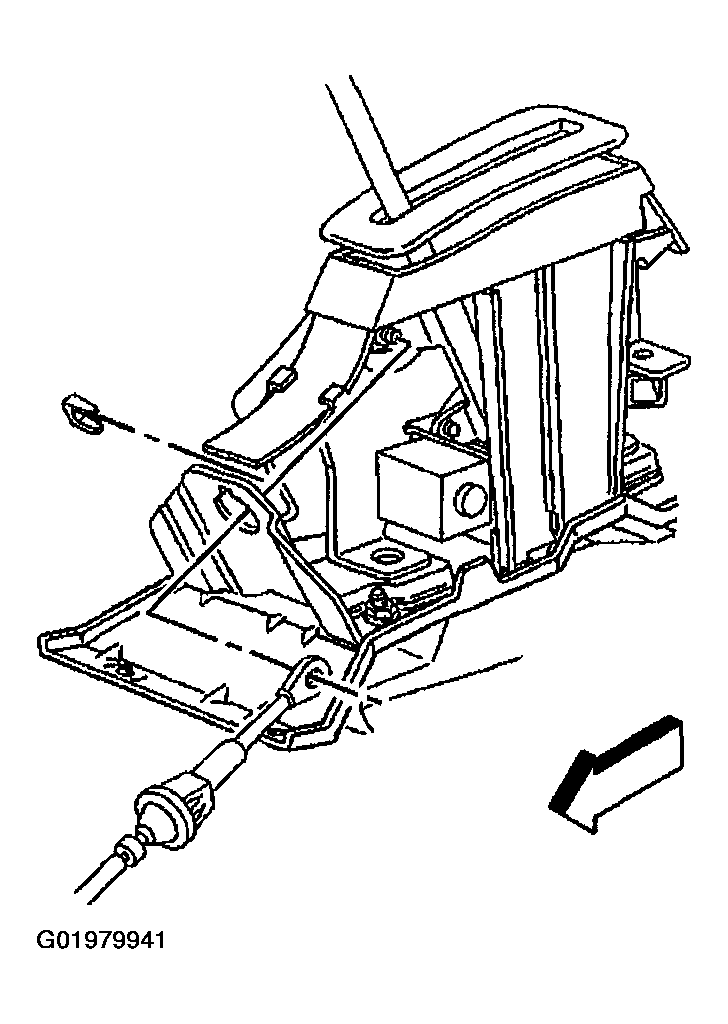

    Fig 2: Installing Cable To Controller
    G01979941Courtesy of GENERAL MOTORS CORP.
  9. Ensure that the shift controller is in the NEUTRAL position.
  10. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  11. Install the range selector cable to the bracket.
  12. Install the retainer (1) to the range selector cable and transmission bracket.

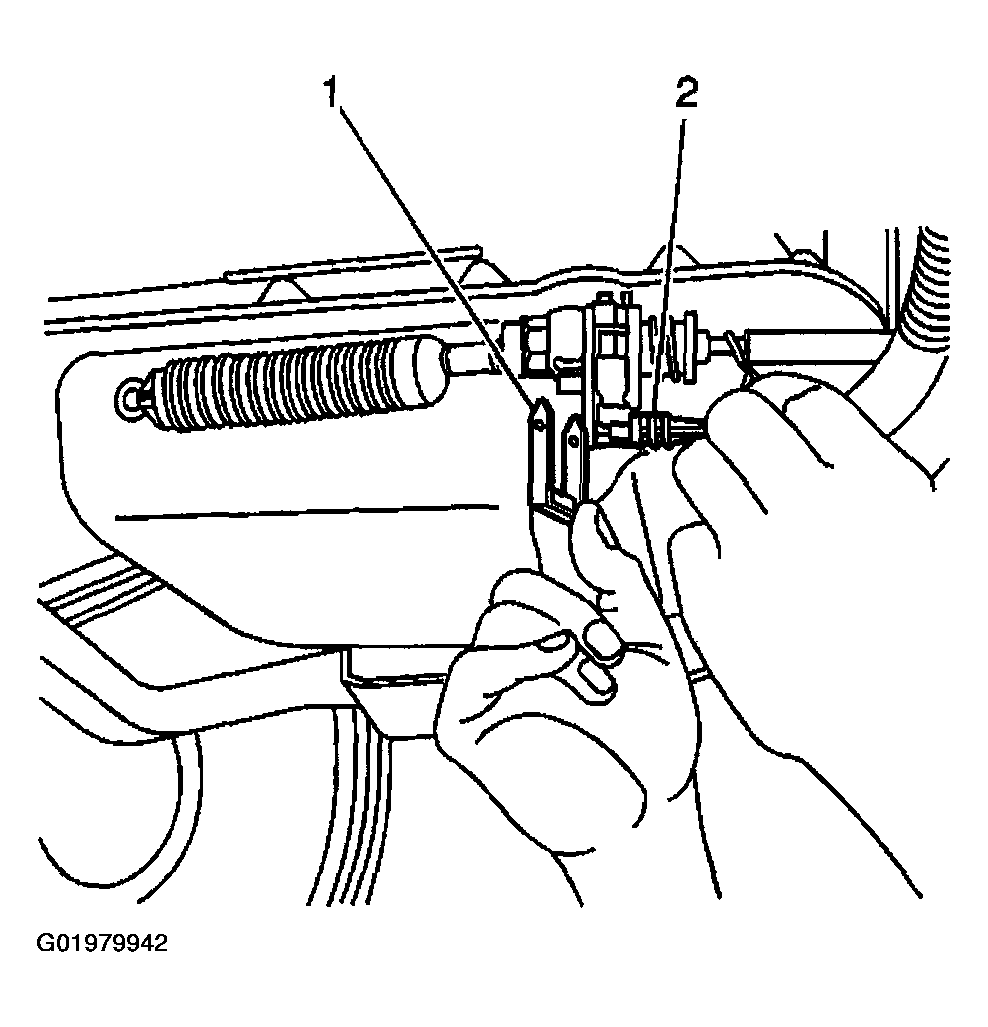

    Fig 3: Installing Retainer To Range Selector Cable & Transmission Bracket
    G01979942Courtesy of GENERAL MOTORS CORP.
  13. Ensure that the transmission range selector lever is in the NEUTRAL position.
  14. Following the adjustment procedure, install the range selector cable (2) to the range selector cable lever ball stud (1). Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT .
  15. Install the positive assurance pin to the bracket.
  16. Install the transfer case shield, if equipped. Refer to the appropriate procedure:
  17. Lower the vehicle and check for proper operation. Repeat the adjustment procedure if necessary. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT .

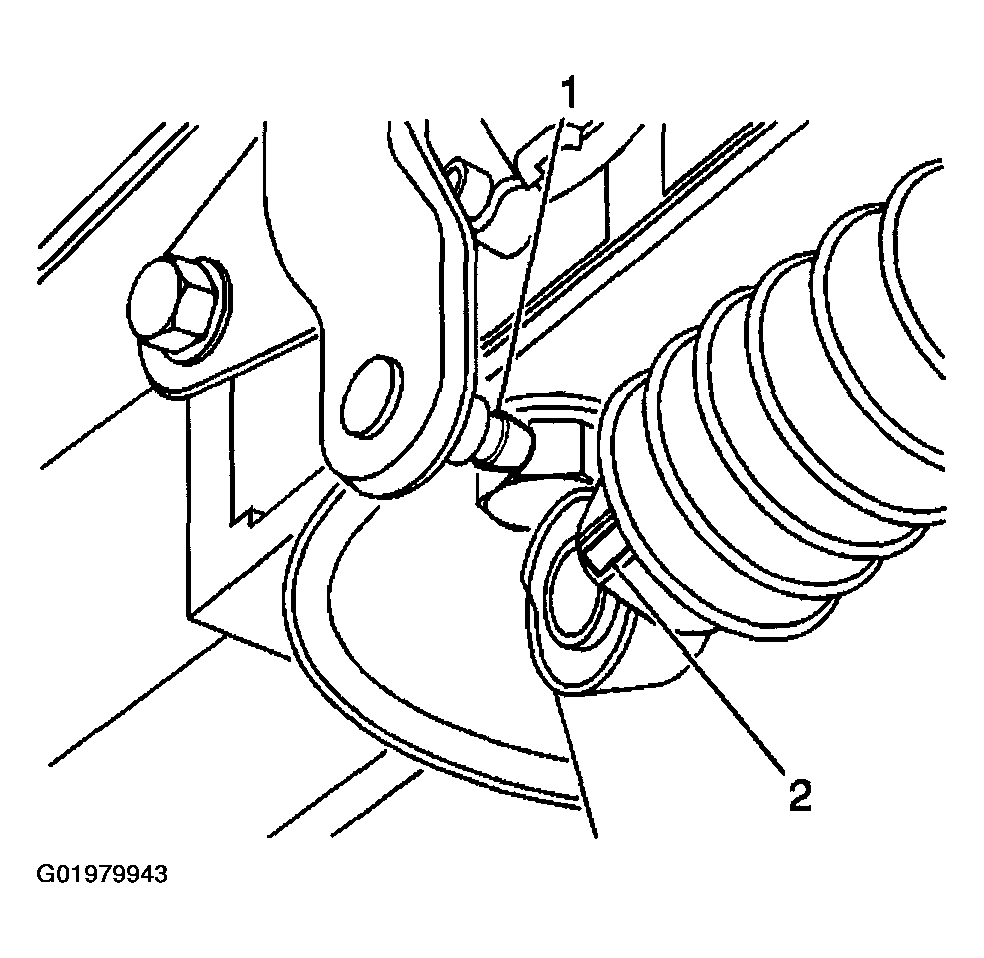

    Fig 4: Installing Range Selector Cable To Range Selector Cable Lever Ball Stud
    G01979943Courtesy of GENERAL MOTORS CORP.
