Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cable through the opening in the floor panel.
  2. Install the grommet to the floor panel.
  3. Install the sound deadening material that covers the cable.
  4. Install the cable to the retainer (1) located next to the accelerator pedal.

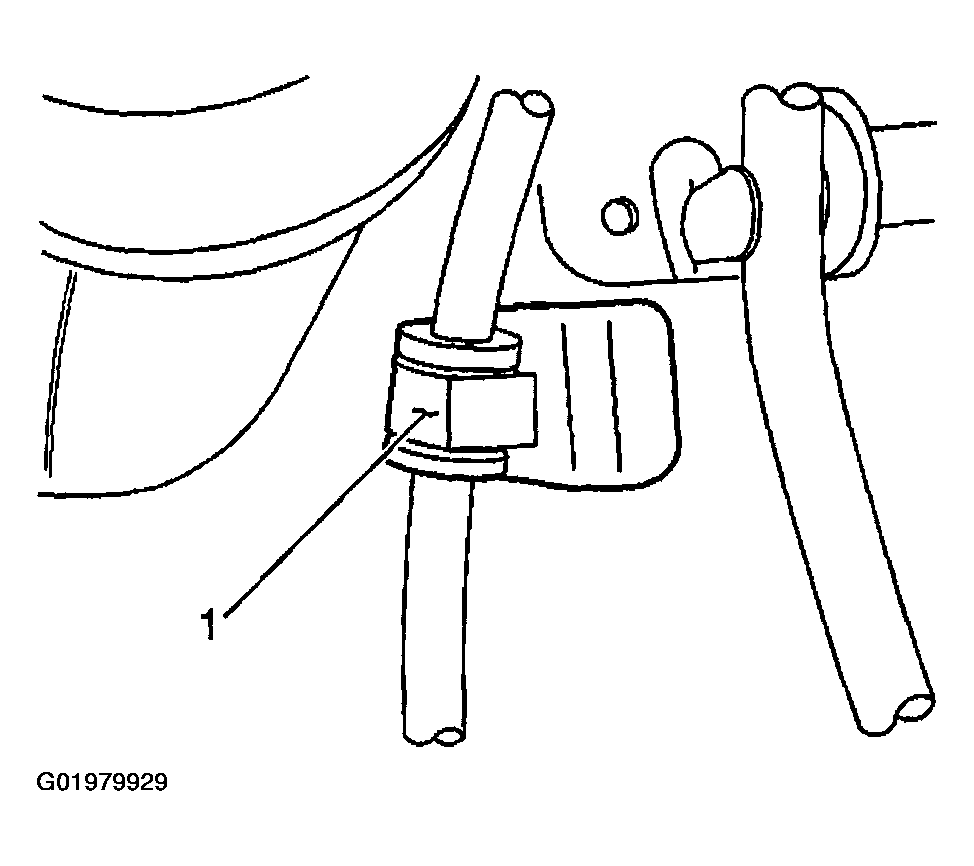

    Fig 1: Installing Cable To Retainer Located Next To Accelerator Pedal
    G01979929Courtesy of GENERAL MOTORS CORP.
  5. Install the cable to the steering column bracket.
  6. Install the retainer (2) that secures the cable to the steering column bracket.
  7. Install the cable end (1) to the steering column ball stud.

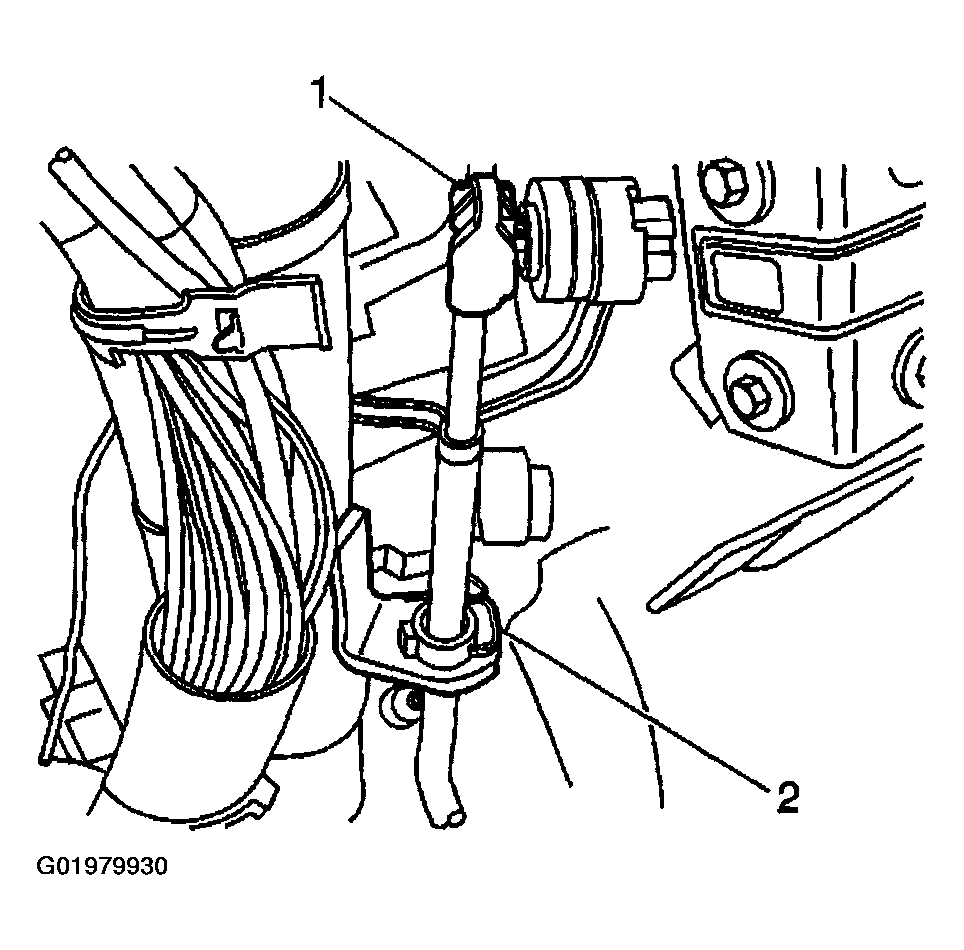

    Fig 2: Installing Cable End To Steering Column Ball Stud
    G01979930Courtesy of GENERAL MOTORS CORP.
  8. Install the carpet and insulation to the drivers side floor area.
  9. Install the door sill plate and the left hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT -- LEFT HINGE PILLAR in Interior Trim.

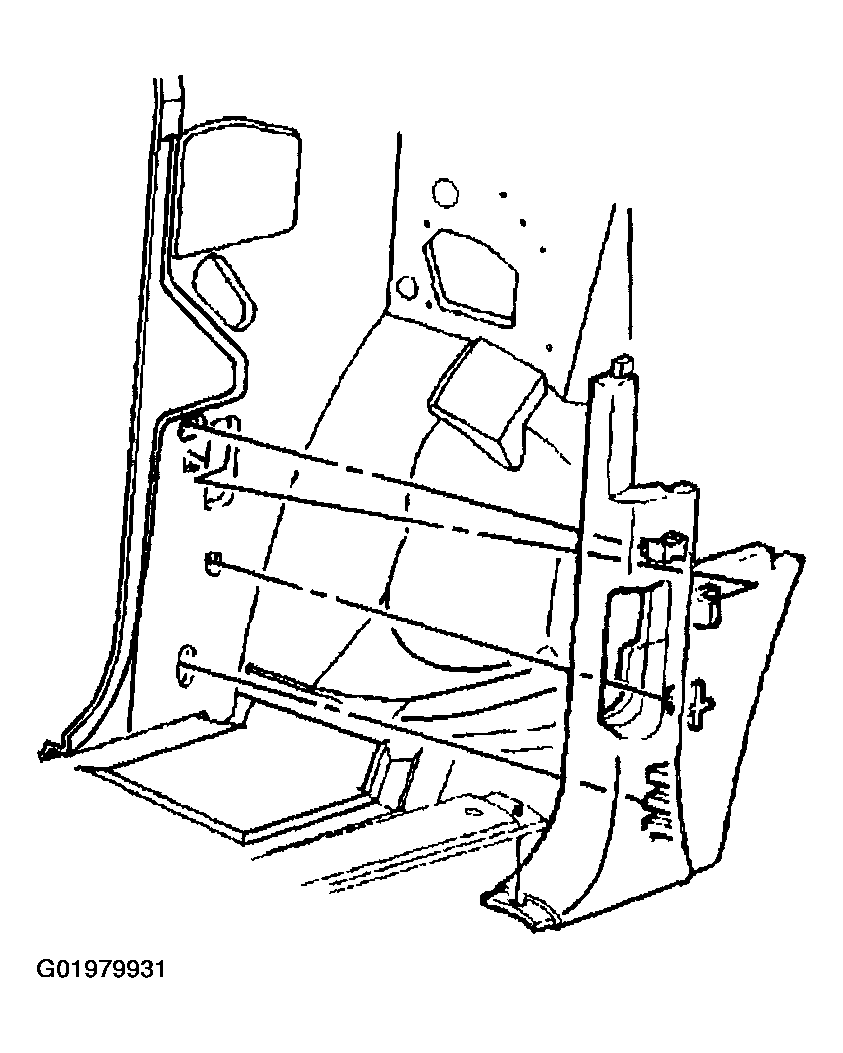

    Fig 3: Door Sill Plate & Left Hinge Pillar Trim Panel
    G01979931Courtesy of GENERAL MOTORS CORP.
  10. Install the knee bolster and instrument panel trim. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gages, and Console.

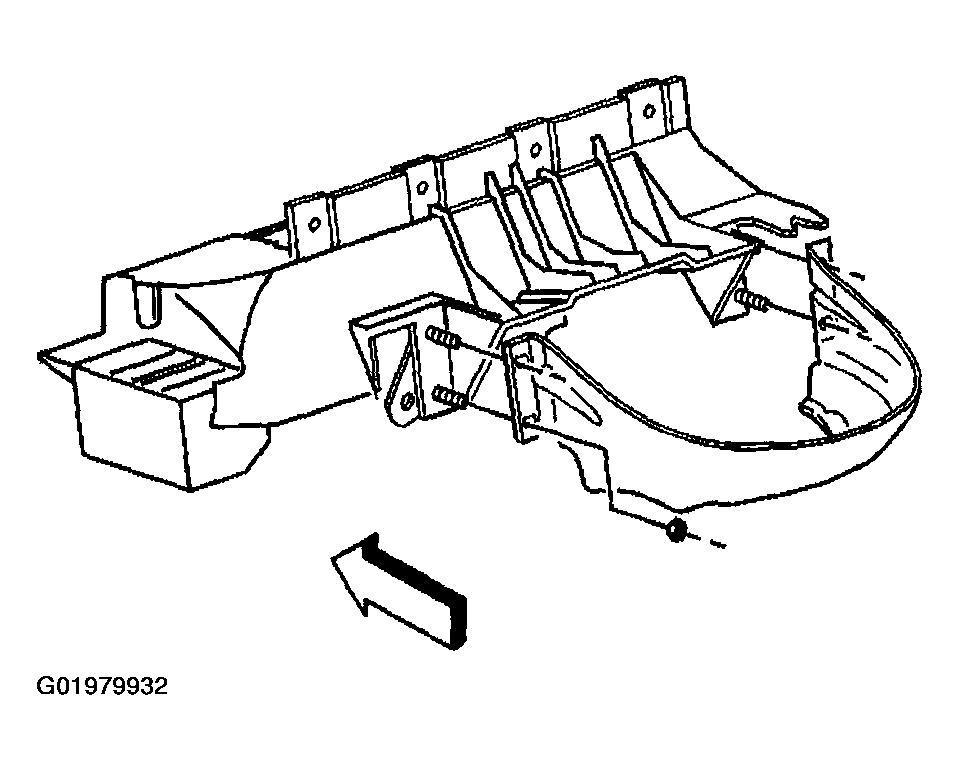

    Fig 4: Knee Bolster & Instrument Panel Trim
    G01979932Courtesy of GENERAL MOTORS CORP.
  11. Ensure that the steering column shift lever is in the NEUTRAL position.
  12. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  13. Install the range selector cable to the bracket.
  14. Install the retainer (1) to the range selector cable and transmission bracket.
    Fig 5: Installing Retainer To Range Selector Cable & Transmission Bracket
    G01979933Courtesy of GENERAL MOTORS CORP.
  15. Ensure that the transmission range selector lever is in the NEUTRAL position.
  16. Following the adjustment procedure, install the range selector cable (2) to the range selector cable lever ball stud (1). Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT .
  17. Install the positive assurance pin to the bracket.
  18. Install the transfer case shield, if equipped. Refer to the appropriate procedure:
  19. Lower the vehicle and check for proper operation. Repeat the adjustment procedure if necessary. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT .
    Fig 6: Installing Range Selector Cable To Range Selector Cable Lever Ball Stud
    G01979934Courtesy of GENERAL MOTORS CORP.
