Test Description

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step inspects for excessive TCC slip when the TCC is commanded ON.
  2. 3. This step inspects for possible causes of no TCC apply.

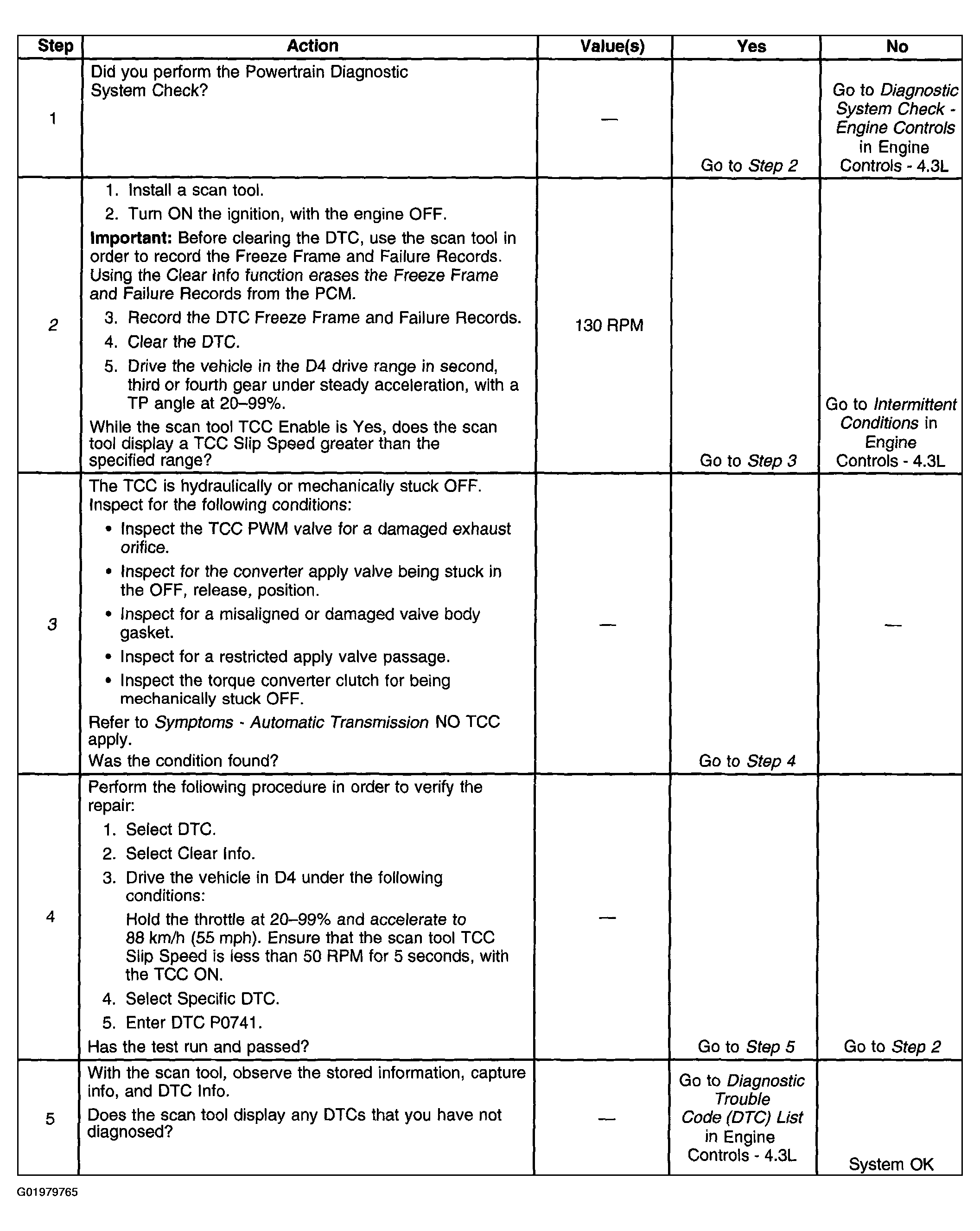

Fig 1: DTC P0741 (4.3L)
G01979765Courtesy of GENERAL MOTORS CORP.
