Component Location

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

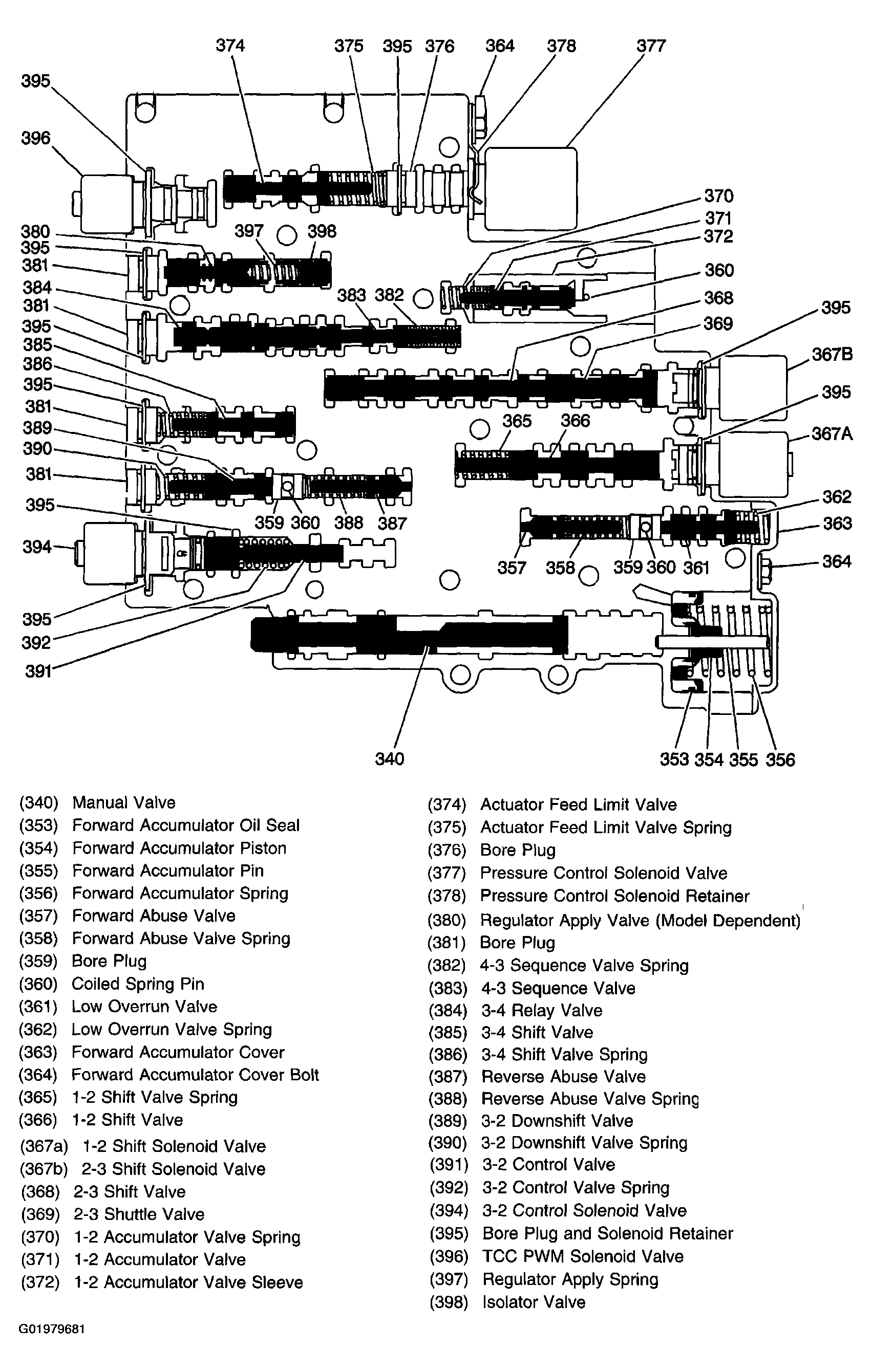

Fig 1: Components

Courtesy of GENERAL MOTORS CORP.

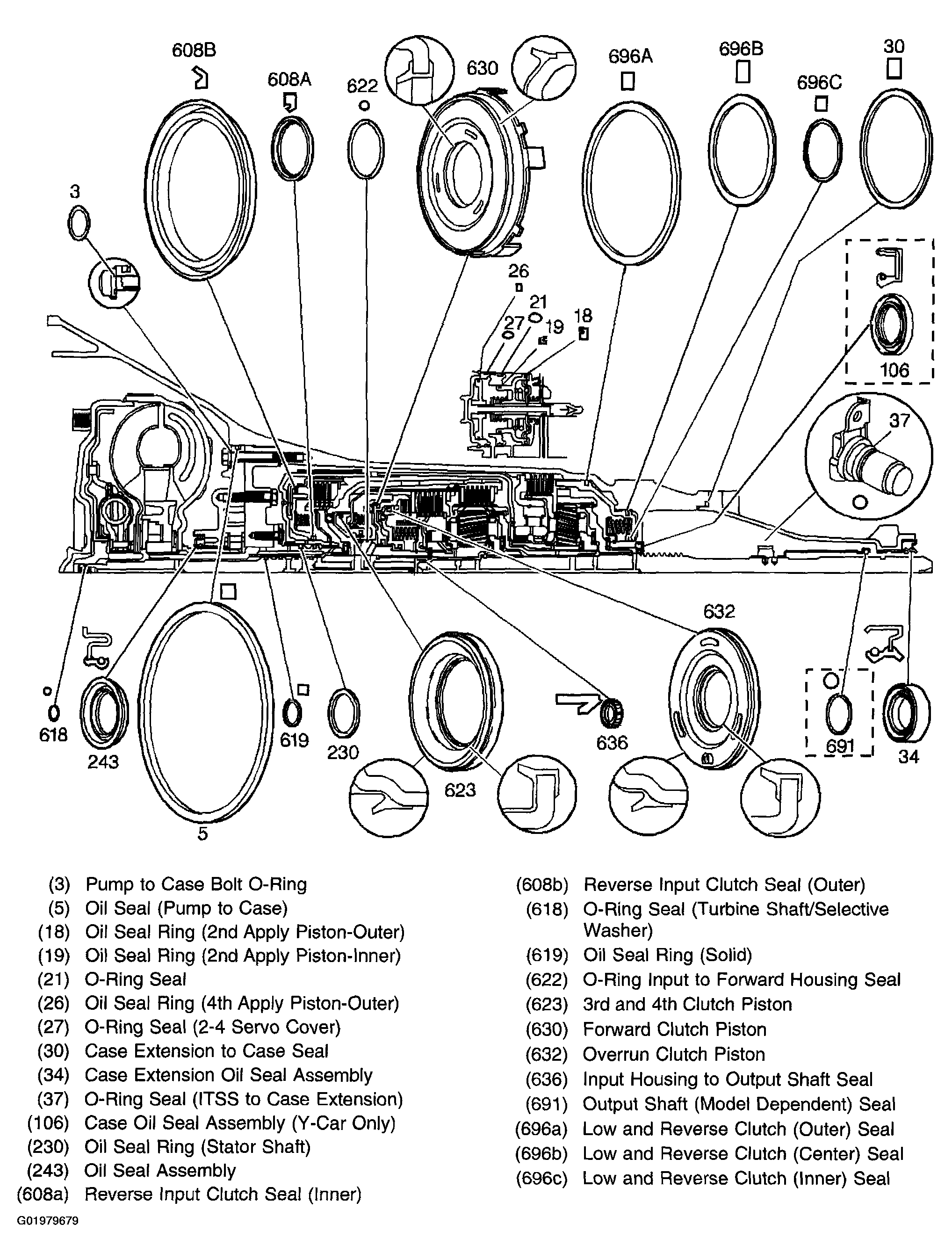

Fig 2: Seals

Courtesy of GENERAL MOTORS CORP.

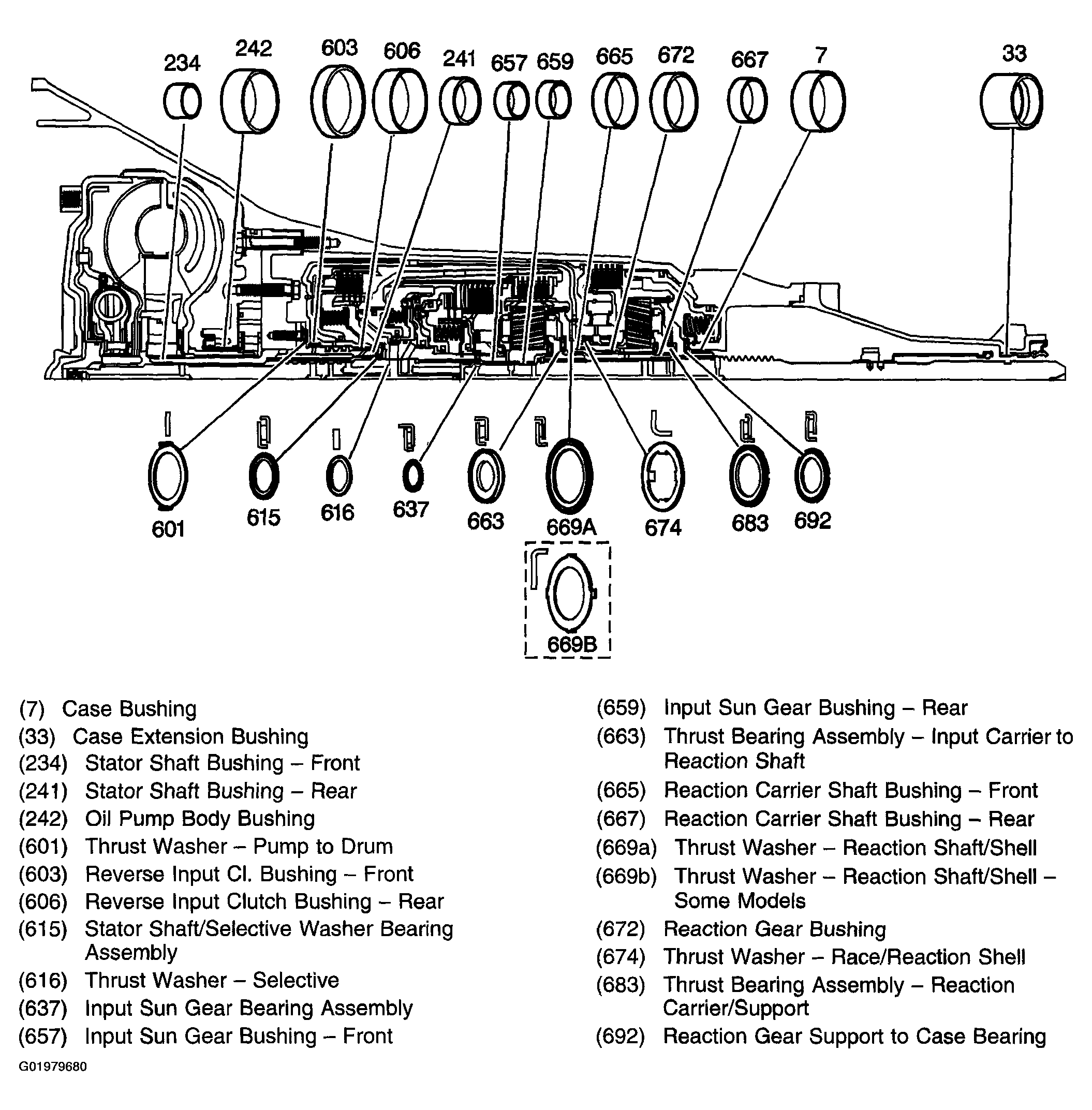

Fig 3: Bearings & Bushings

Courtesy of GENERAL MOTORS CORP.

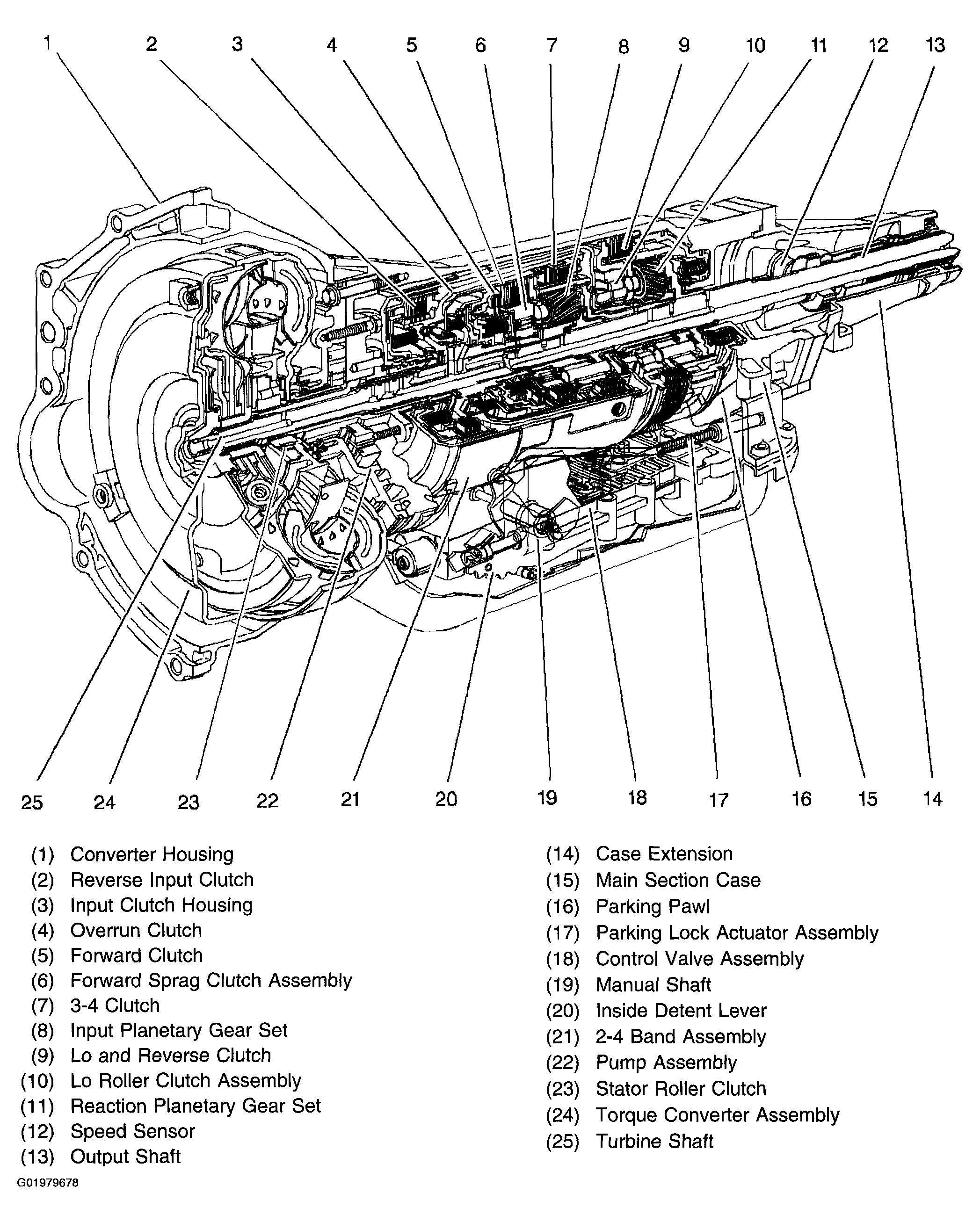

Fig 4: Valve Trains

Courtesy of GENERAL MOTORS CORP.
