Automatic Transmission Related Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

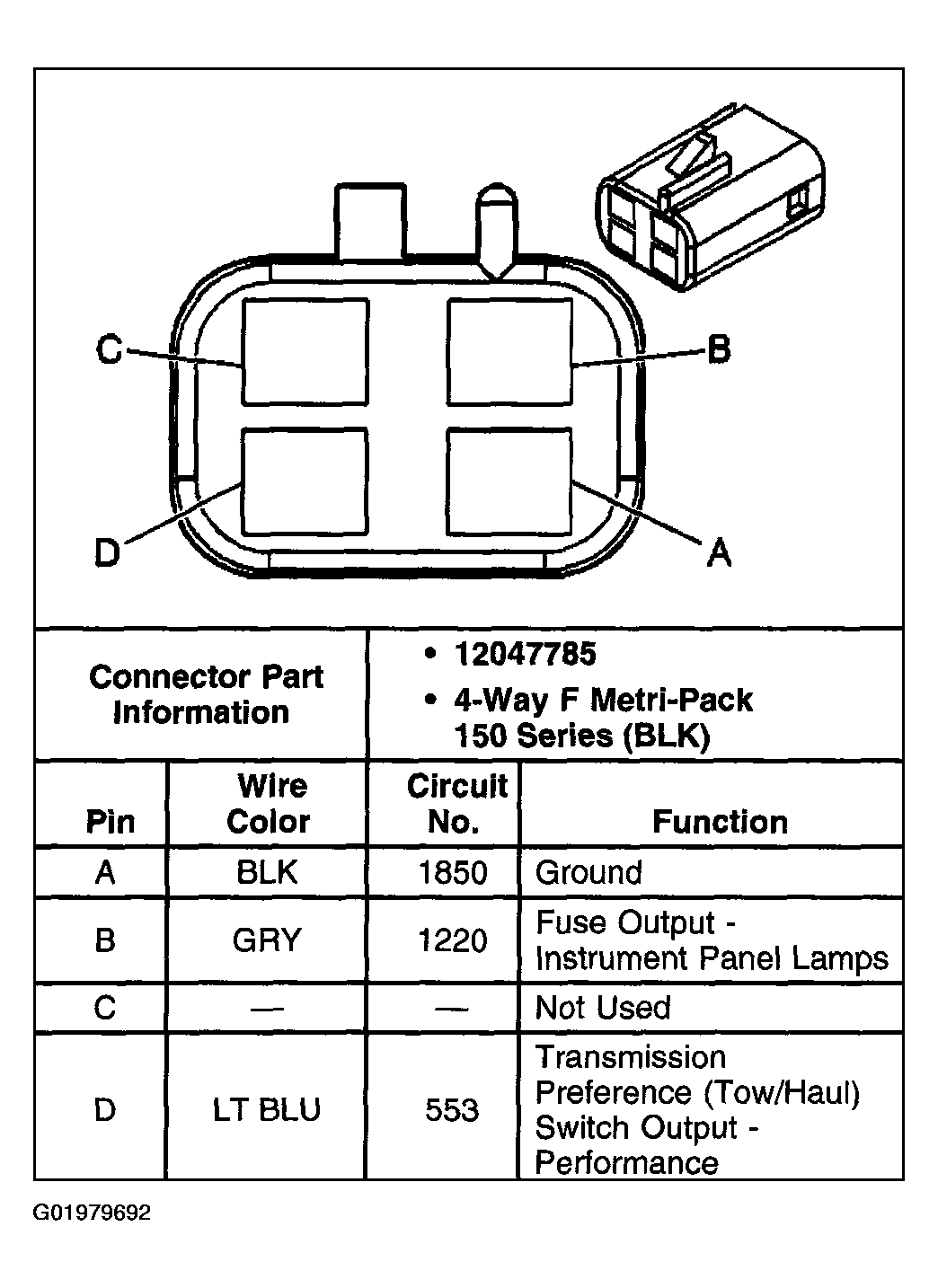

Fig 1: Automatic Transmission Preference (Tow/Haul) Switch Connector (Utility w/Floor Shift-Except Envoy)

Courtesy of GENERAL MOTORS CORP.

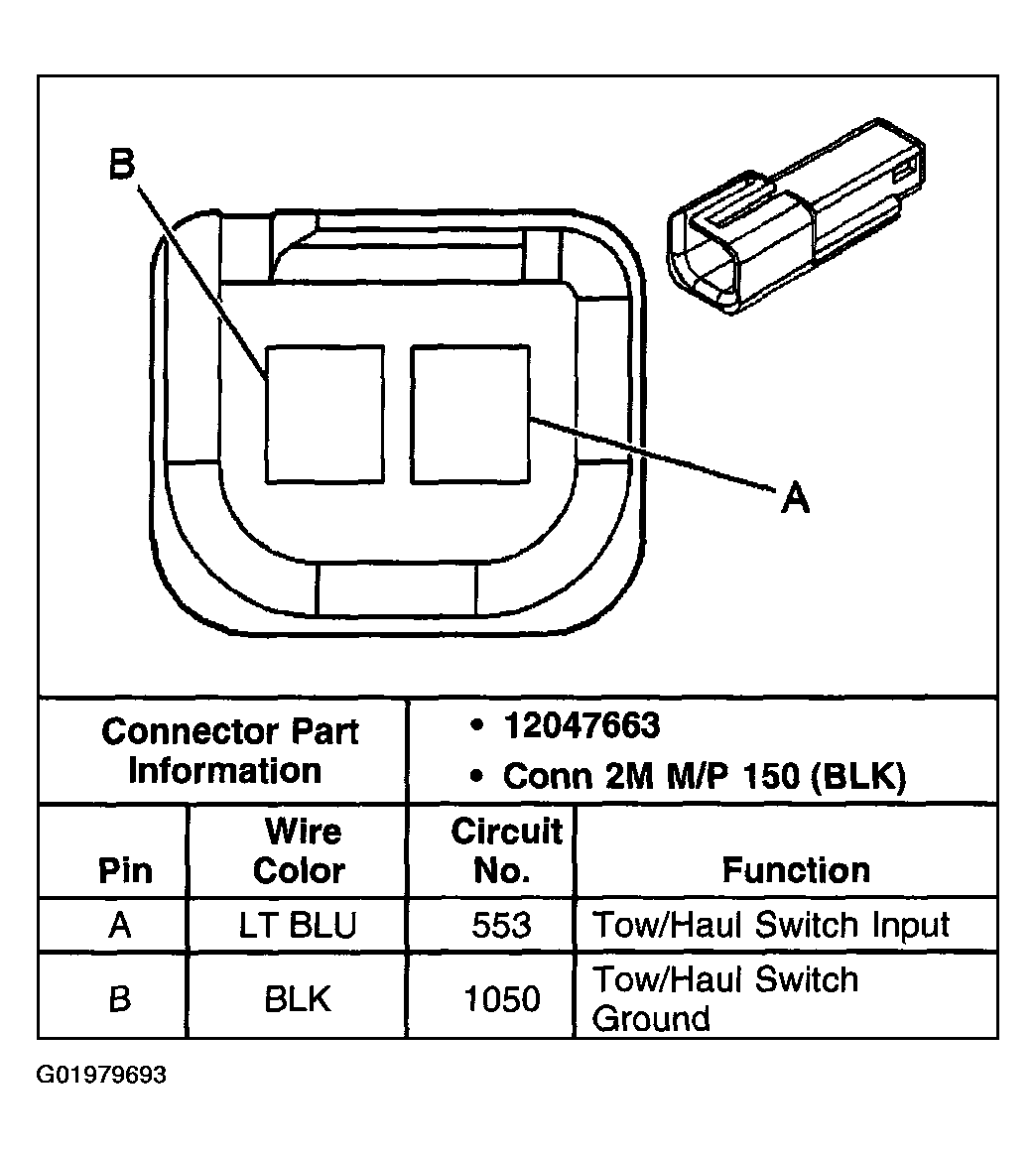

Fig 2: Automatic Transmission Preference (Tow/Haul) Switch Connector (Utility w/Floor Shift-Envoy Only)

Courtesy of GENERAL MOTORS CORP.

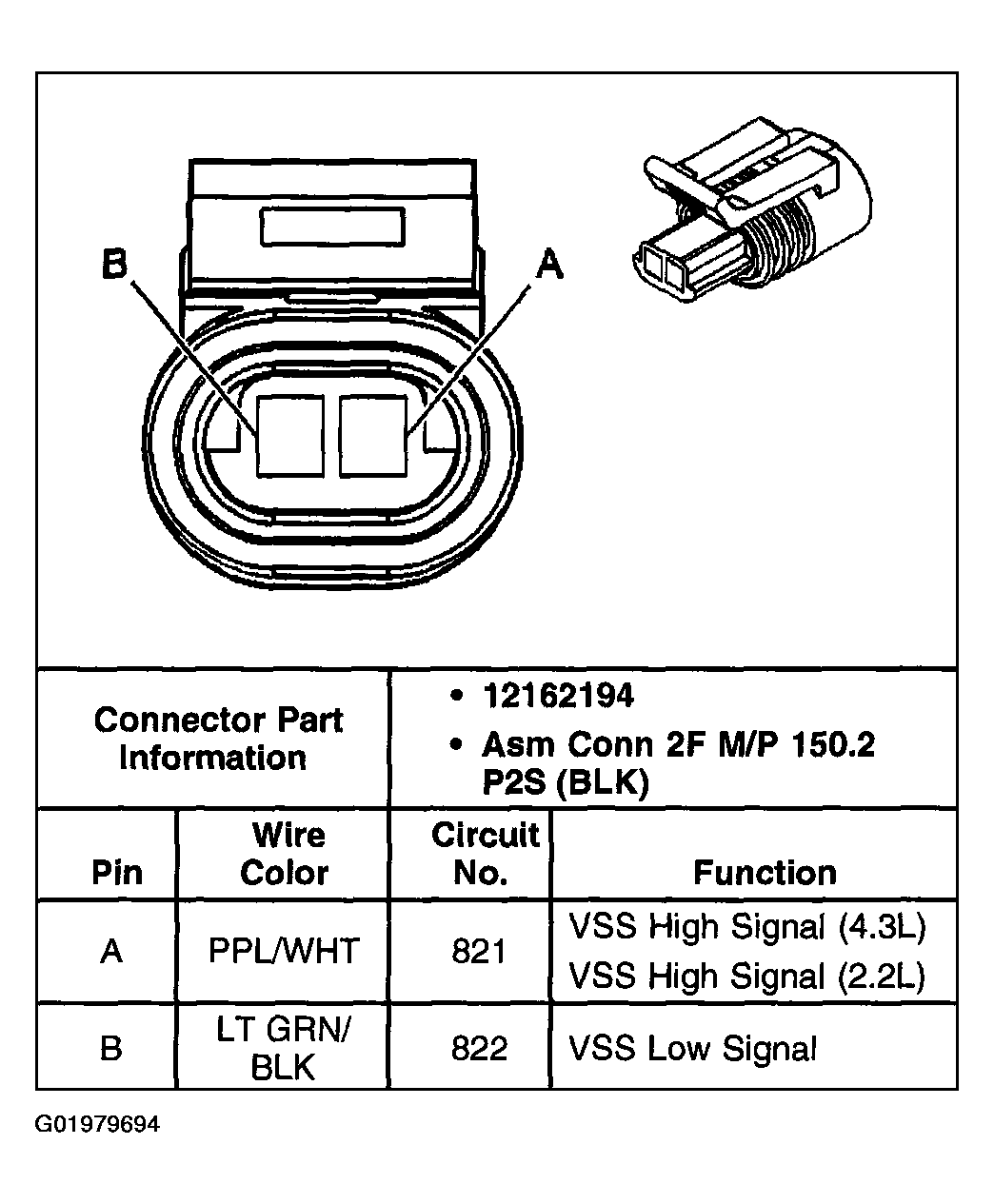

Fig 3: Vehicle Speed Sensor Assembly Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

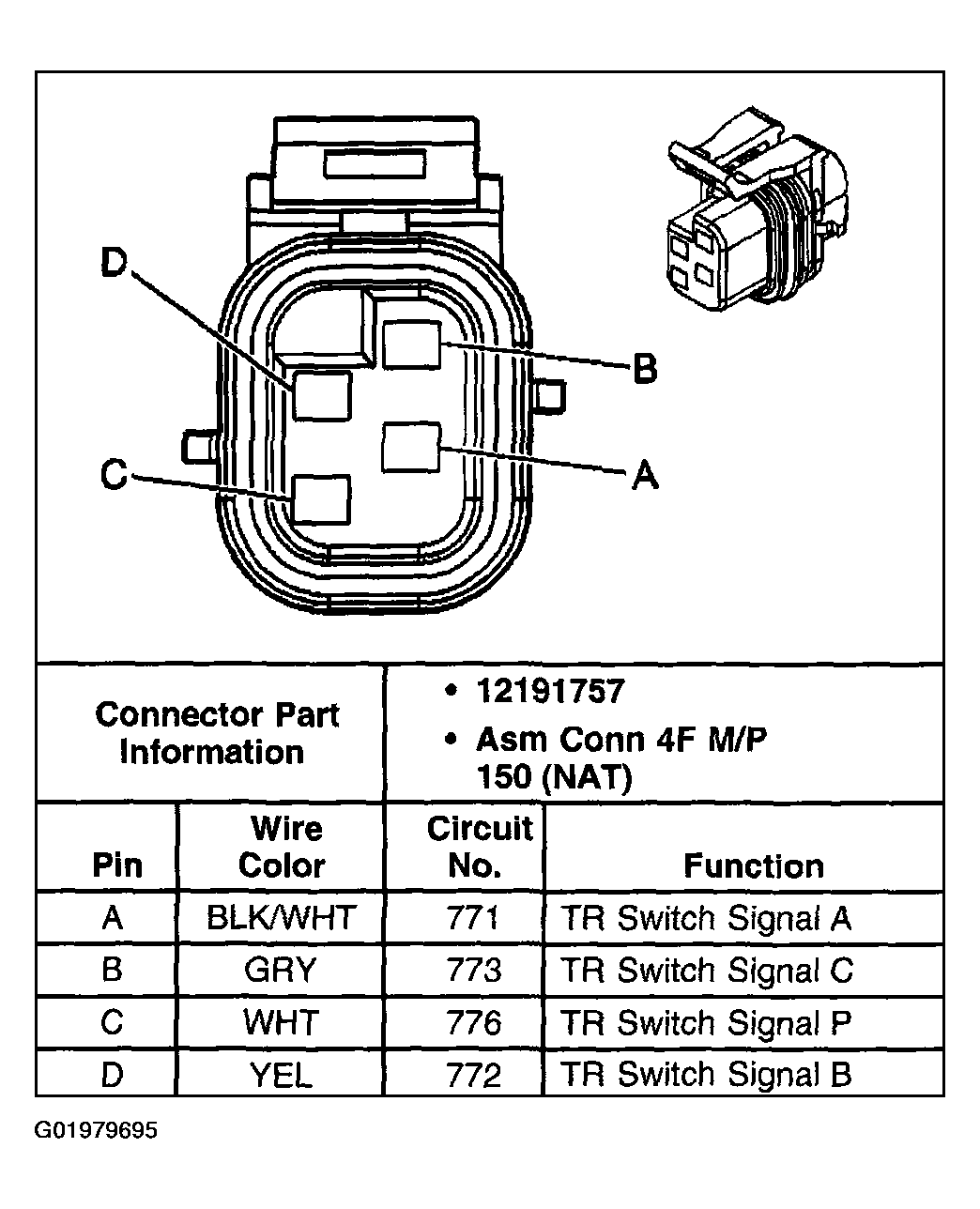

Fig 4: Transmission Range Switch Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
