Automatic Transmission Internal Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

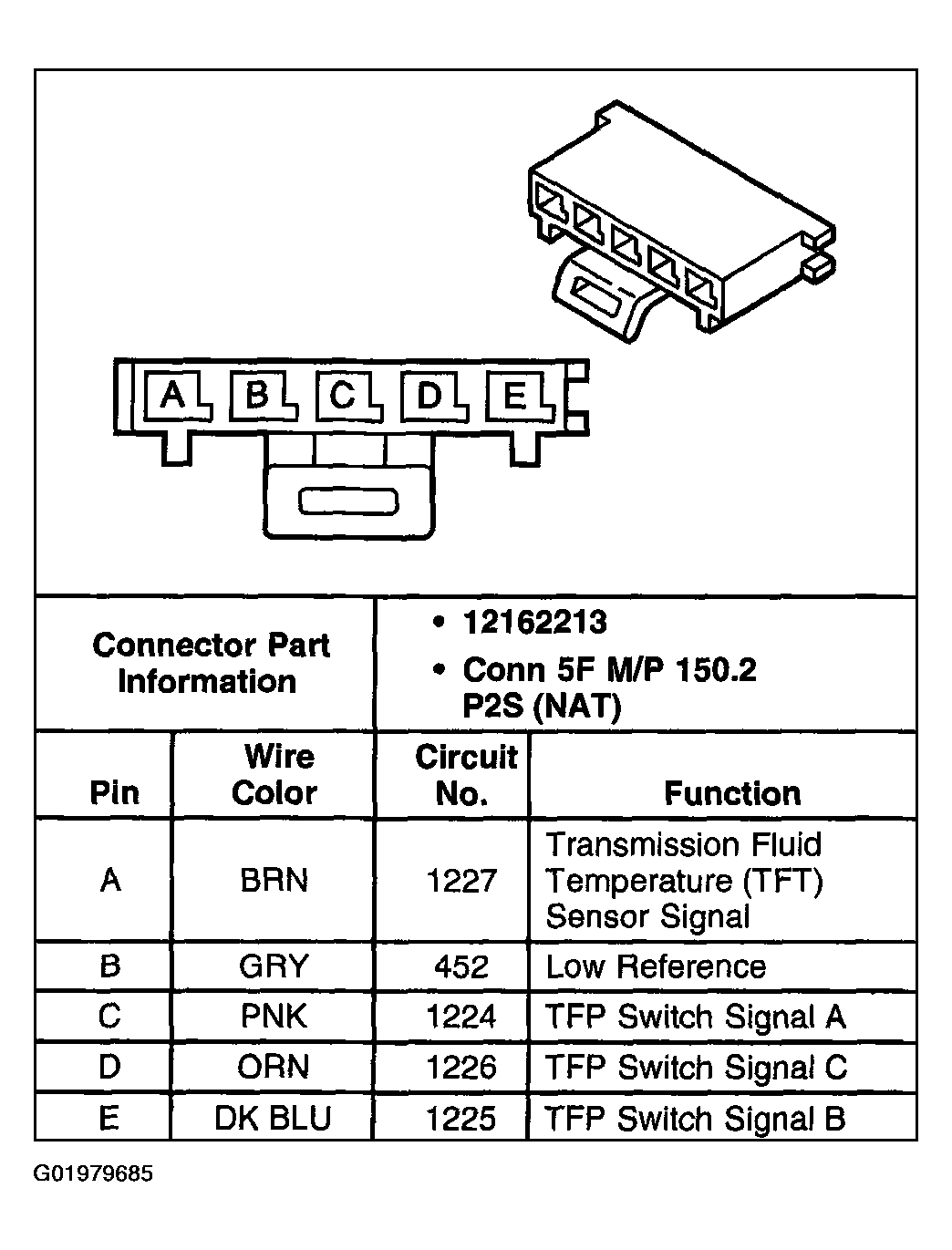

Fig 1: Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

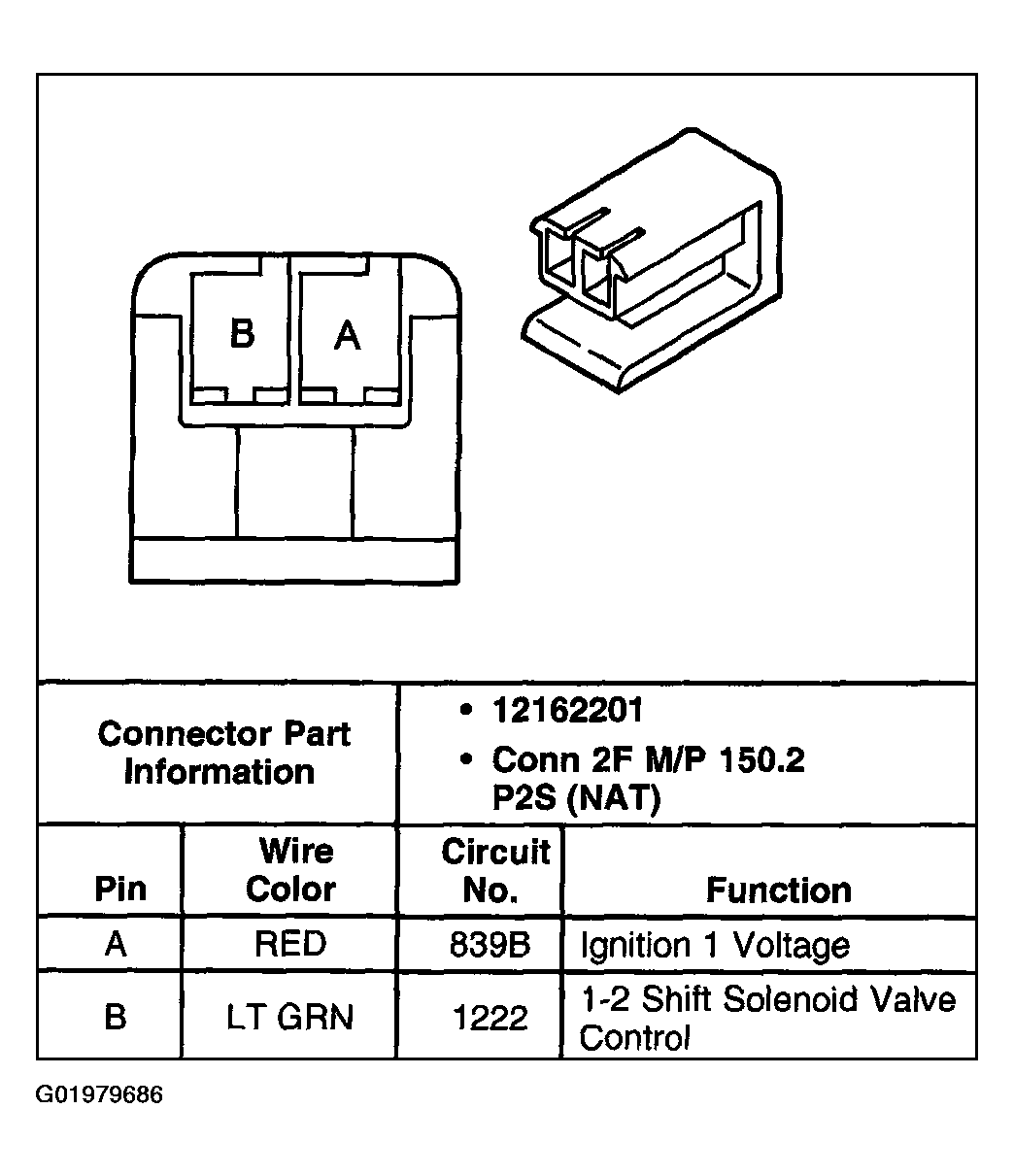

Fig 2: 1-2 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

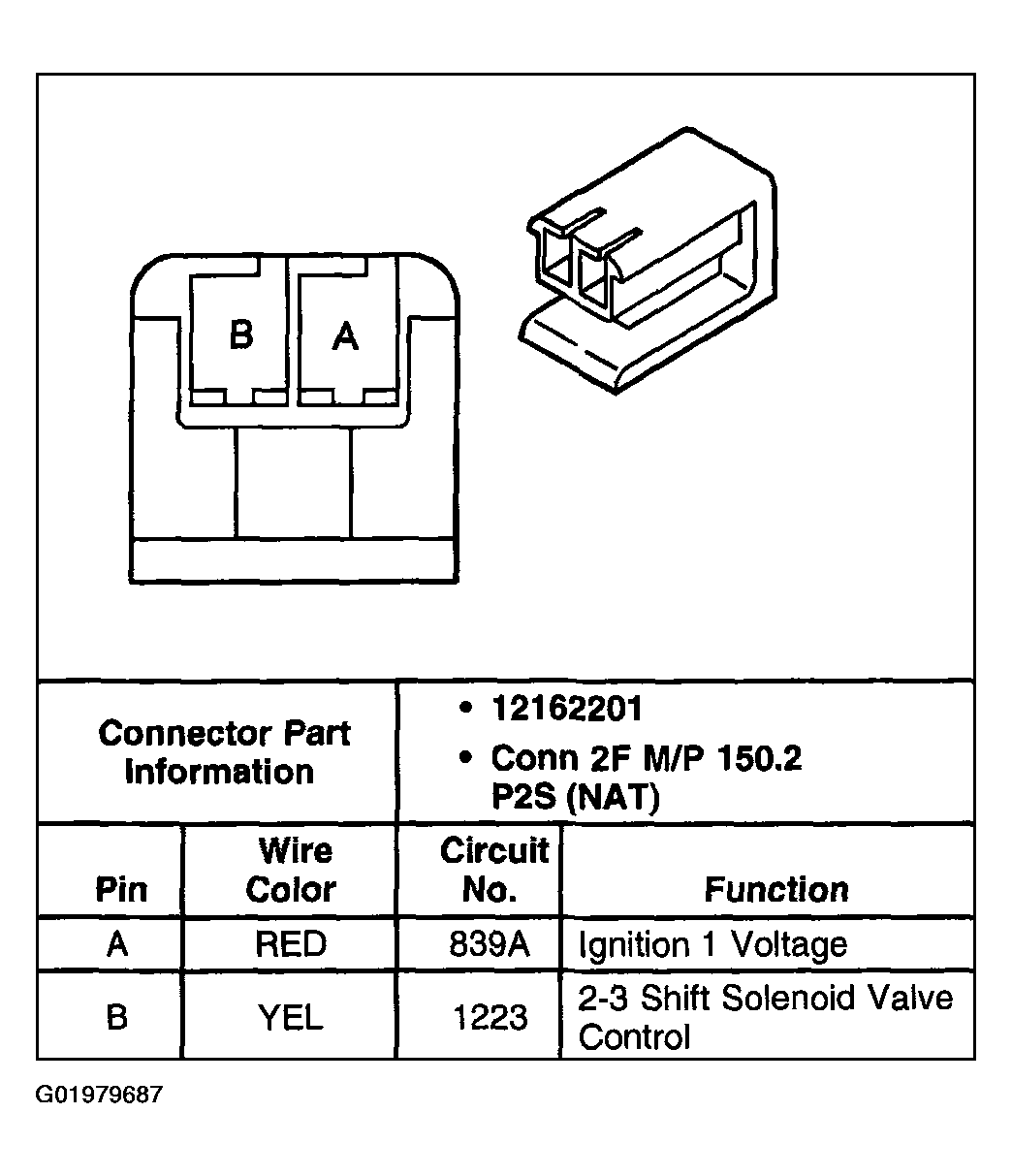

Fig 3: 2-3 Shift Solenoid (SS) Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

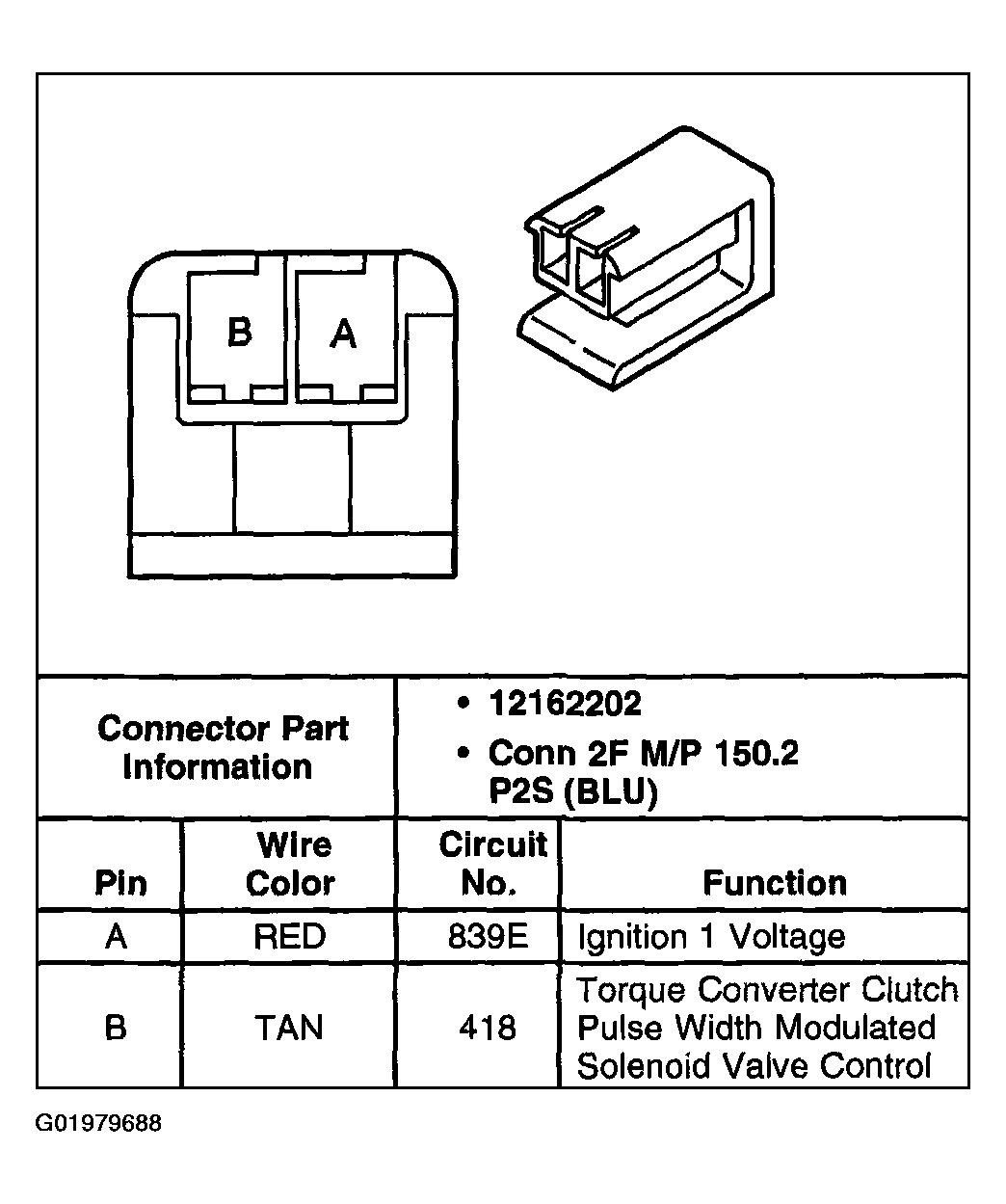

Fig 4: Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

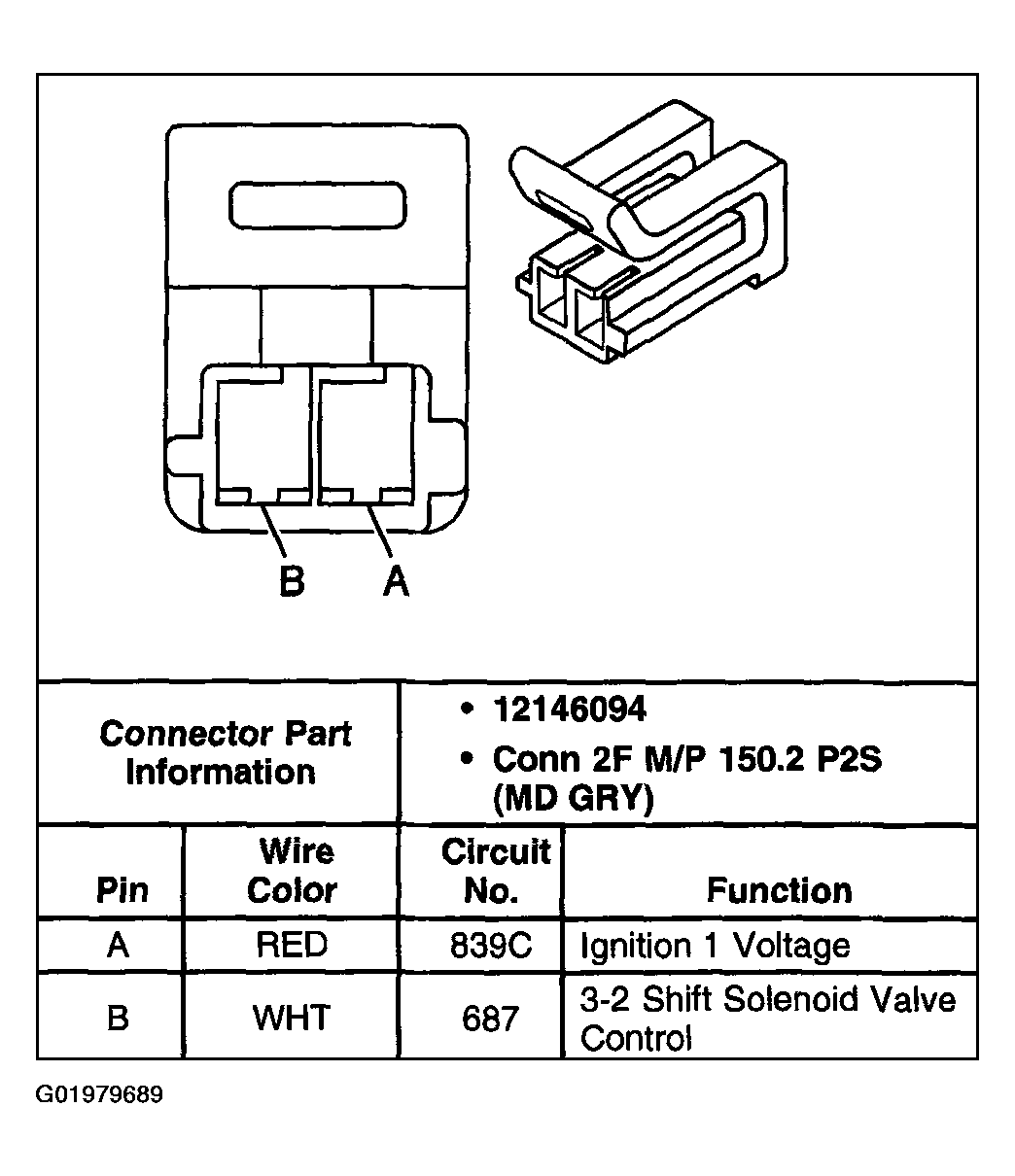

Fig 5: 3-2 Shift Solenoid (SS) Valve Assembly Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

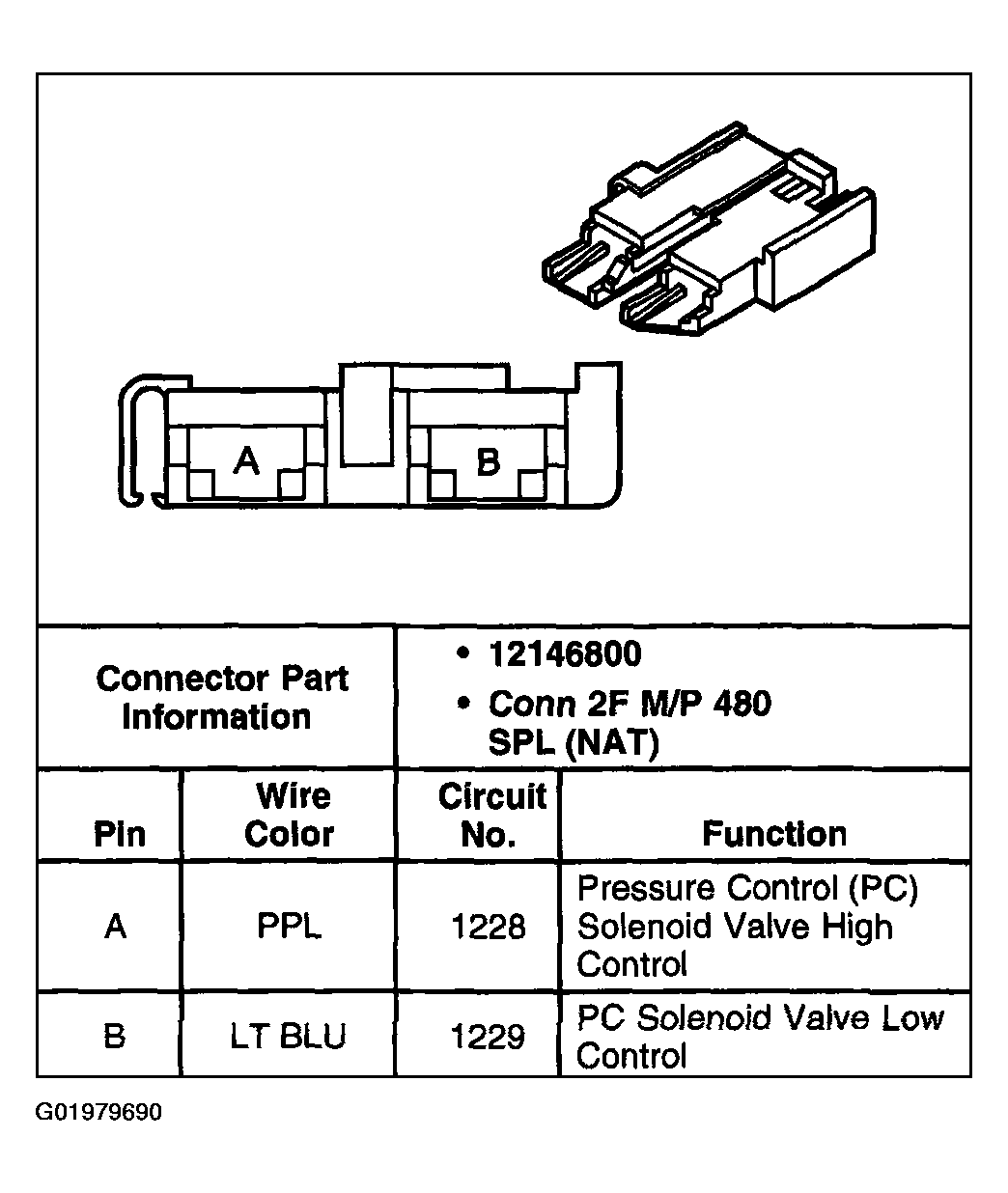

Fig 6: Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

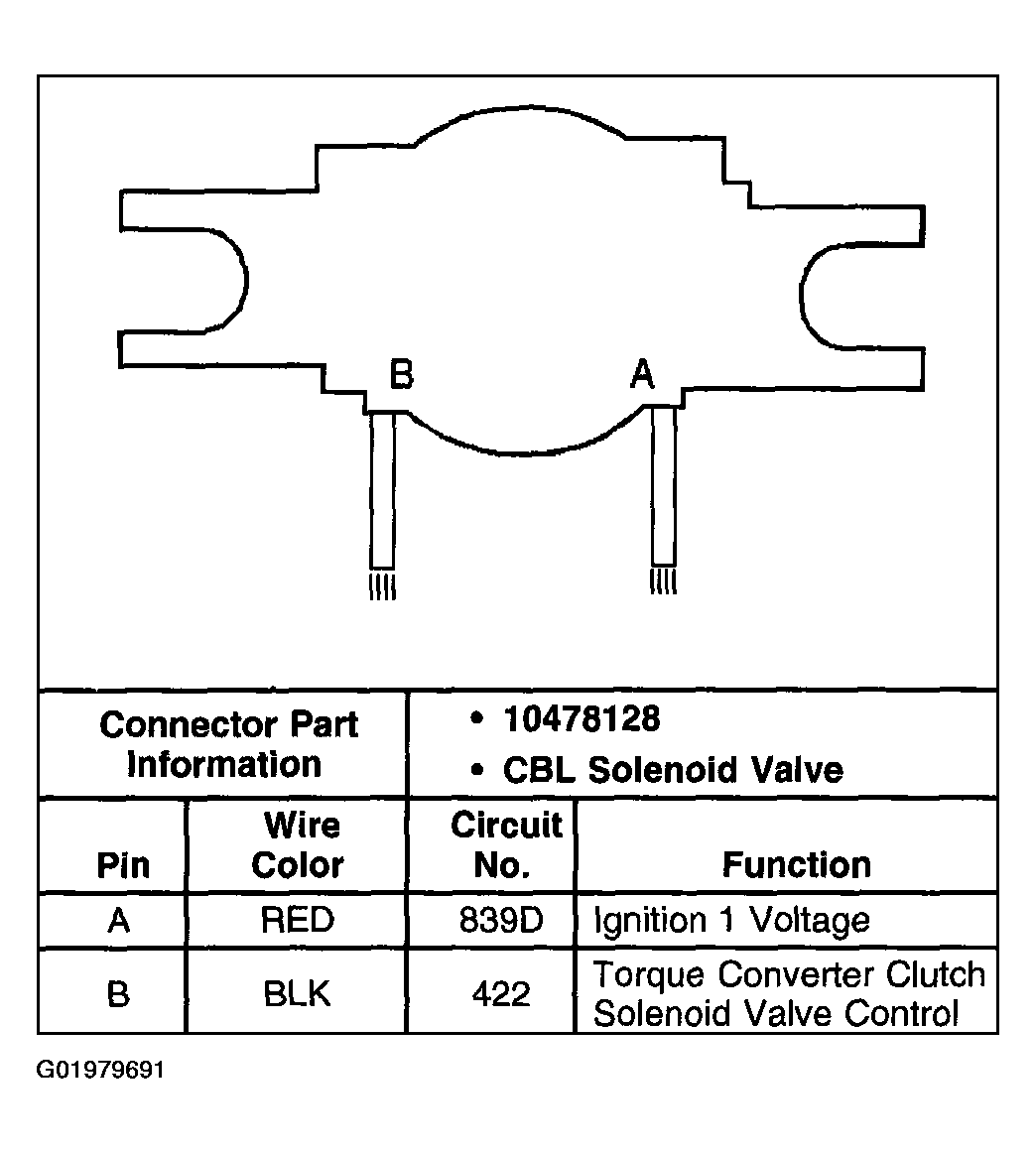

Fig 7: Torque Converter Clutch (TCC) Solenoid Valve Connector, Wiring Harness side

Courtesy of GENERAL MOTORS CORP.
