Automatic Transmission Inline 20-Way Connector End View

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

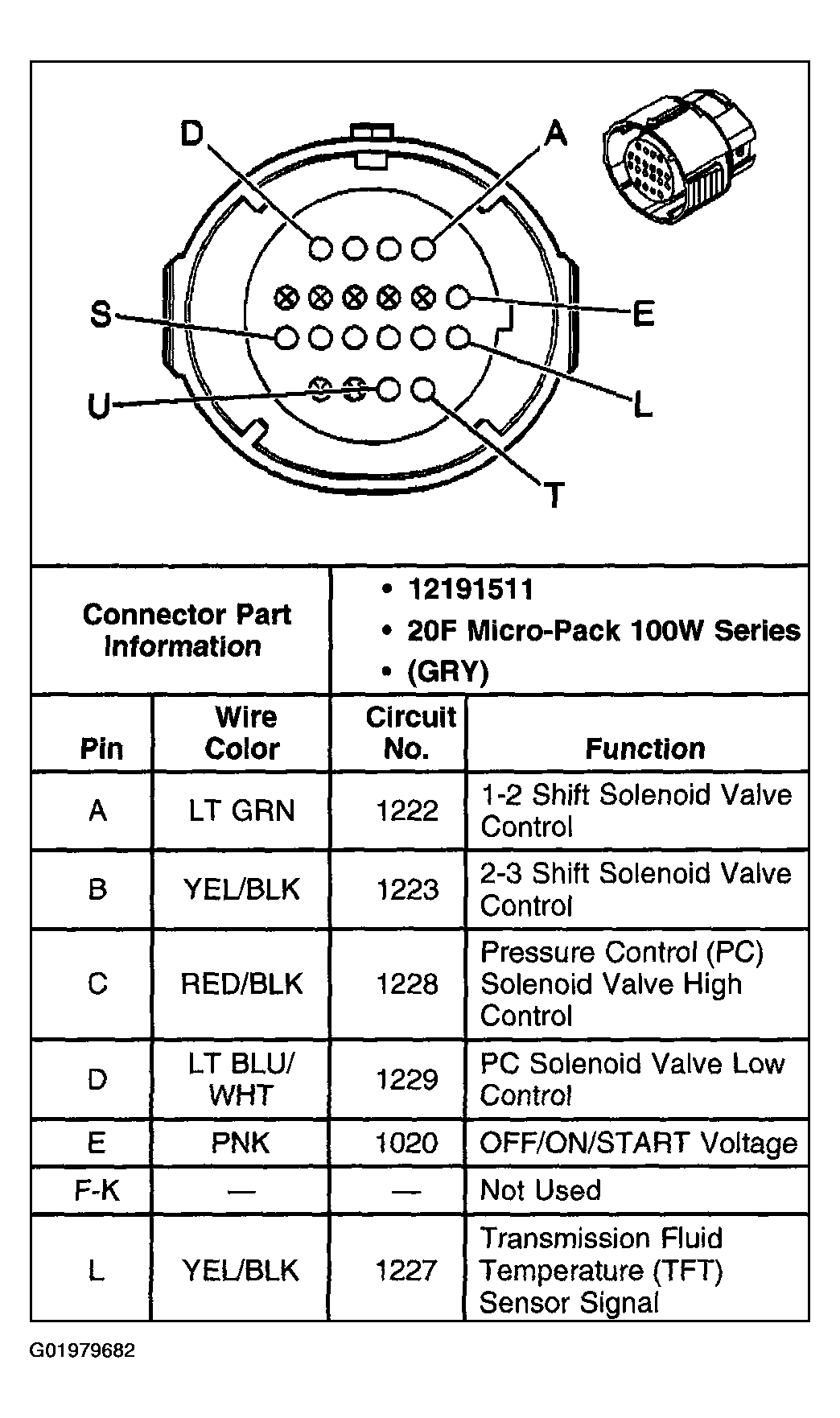

Fig 1: AT Inline 20-Way Connector, Engine Side (1 Of 2)
G01979682Courtesy of GENERAL MOTORS CORP.

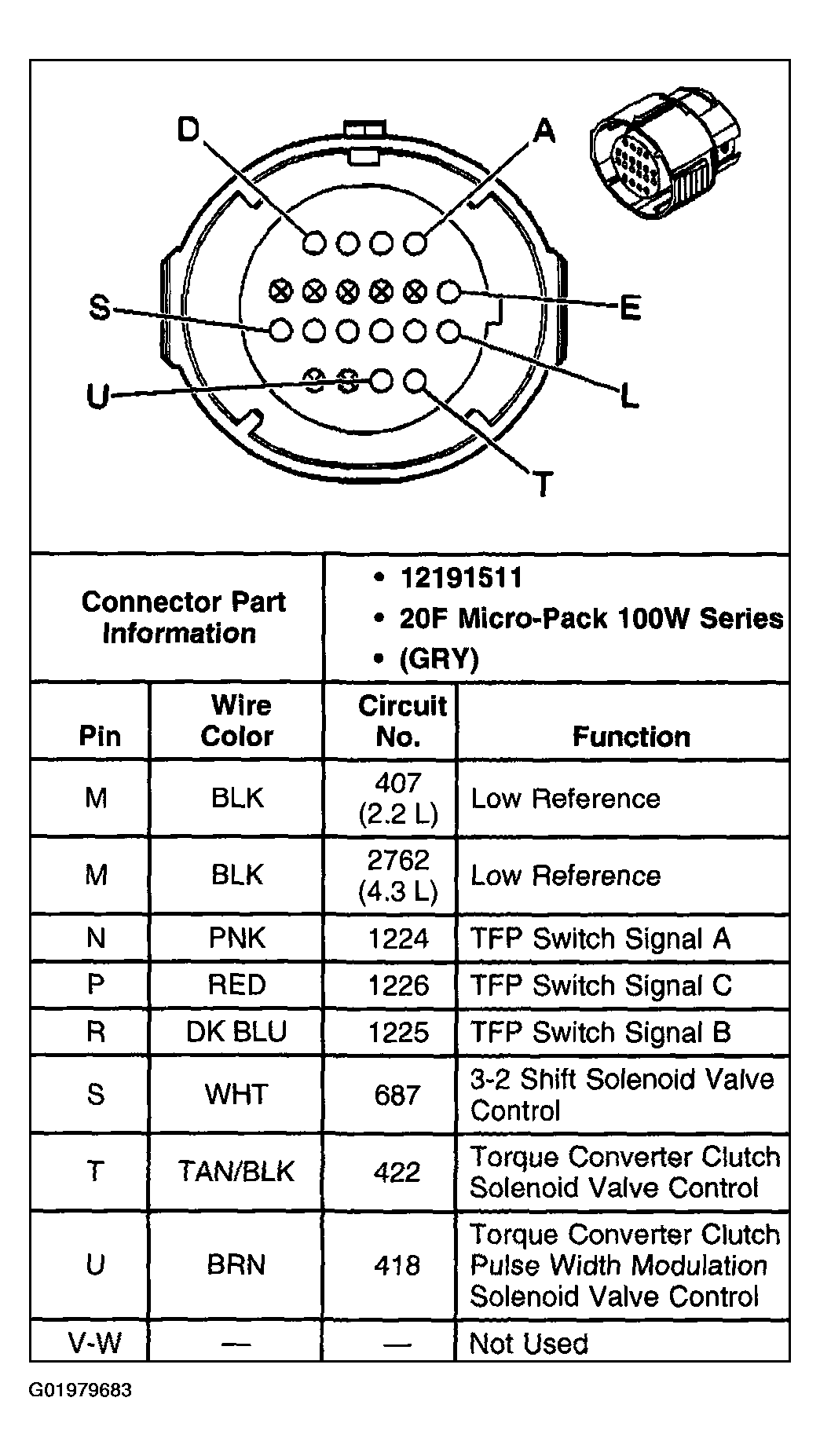

Fig 2: AT Inline 20-Way Connector, Engine Side (2 Of 2)
G01979683Courtesy of GENERAL MOTORS CORP.

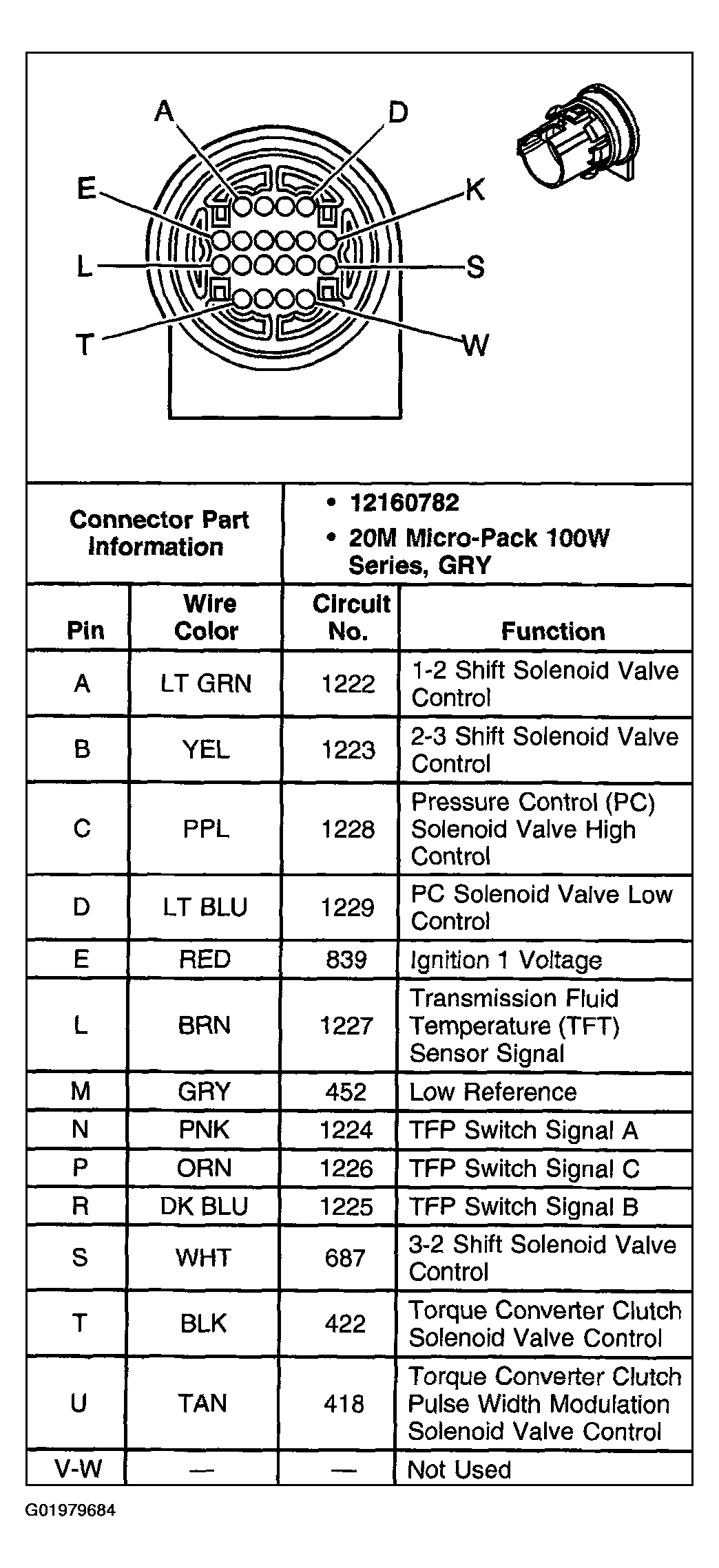

Fig 3: AT Inline 20-Way Connector, Transmission Side
G01979684Courtesy of GENERAL MOTORS CORP.
