Automatic Transmission Electronic Component Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

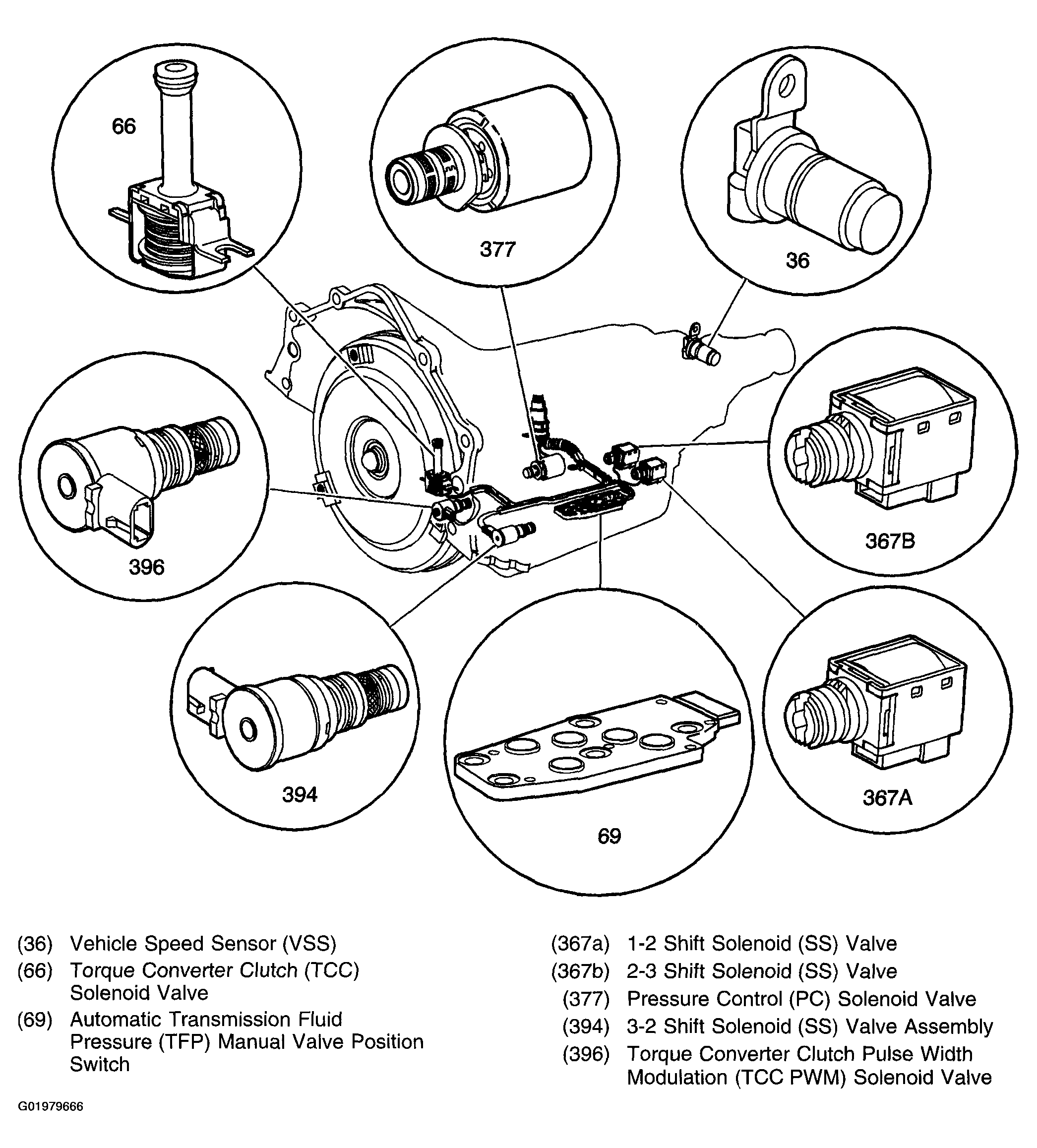

Fig 1: Electronic Components

Courtesy of GENERAL MOTORS CORP.

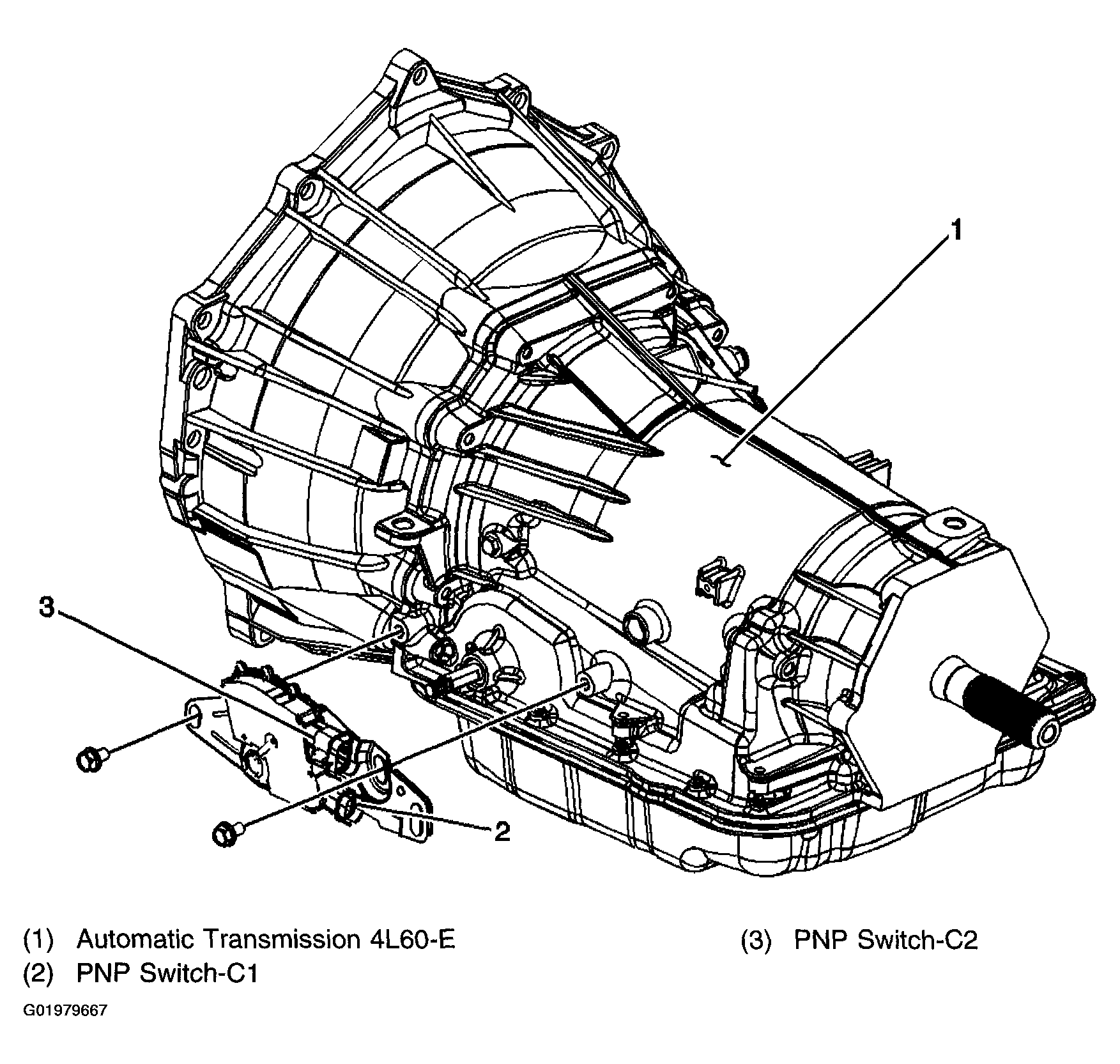

Fig 2: Park Neutral Position (PNP) Switch

Courtesy of GENERAL MOTORS CORP.

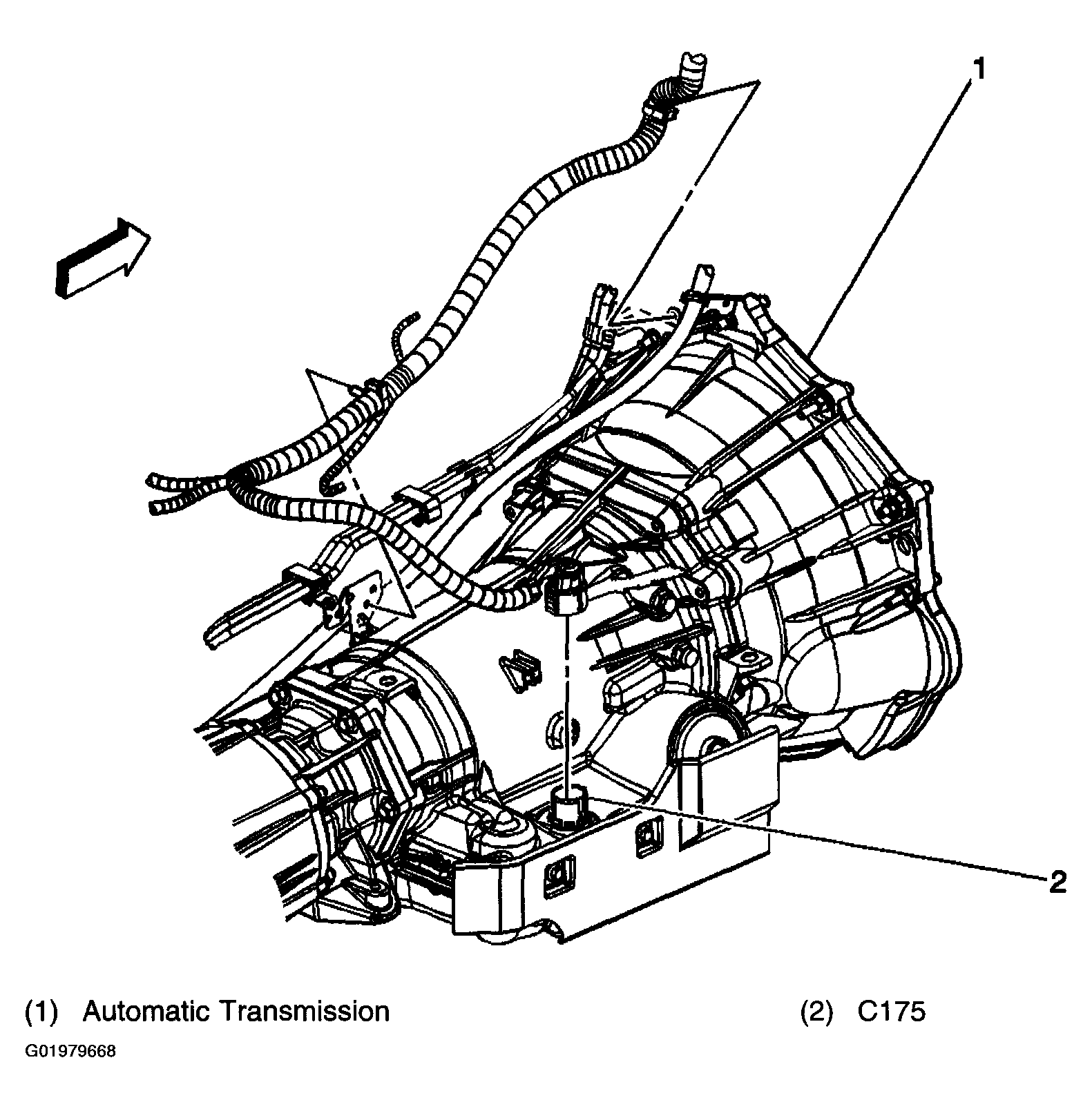

Fig 3: C175

Courtesy of GENERAL MOTORS CORP.

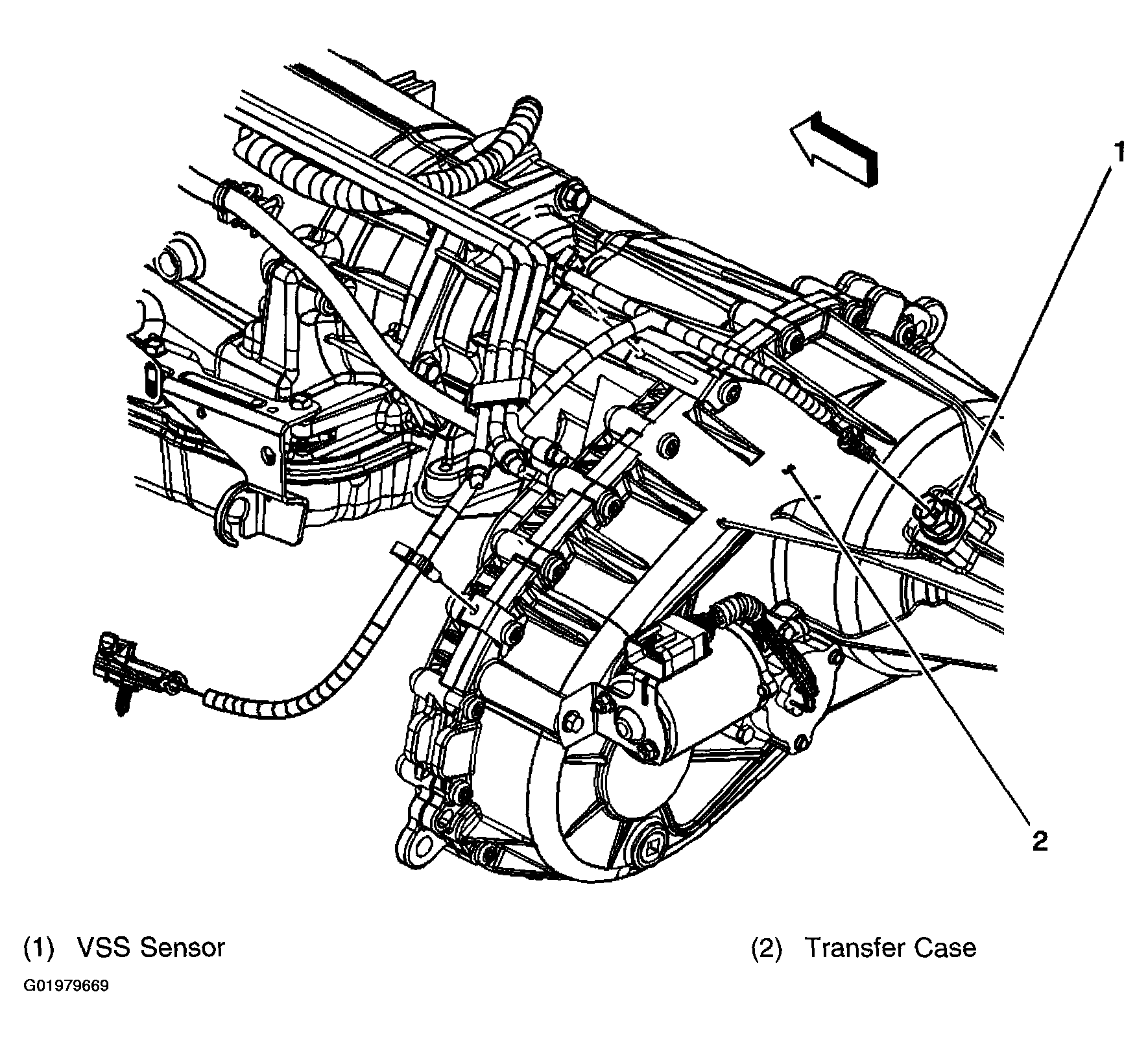

Fig 4: Vehicle Speed Sensor (VSS)

Courtesy of GENERAL MOTORS CORP.
