Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hoist assembly to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install hoist assembly mounting bolts to the rear crossmember.
    1. Tighten
    2. Tighten the hoist assembly mounting bolts to the rear crossmember to 11 N.m (100 lb in).

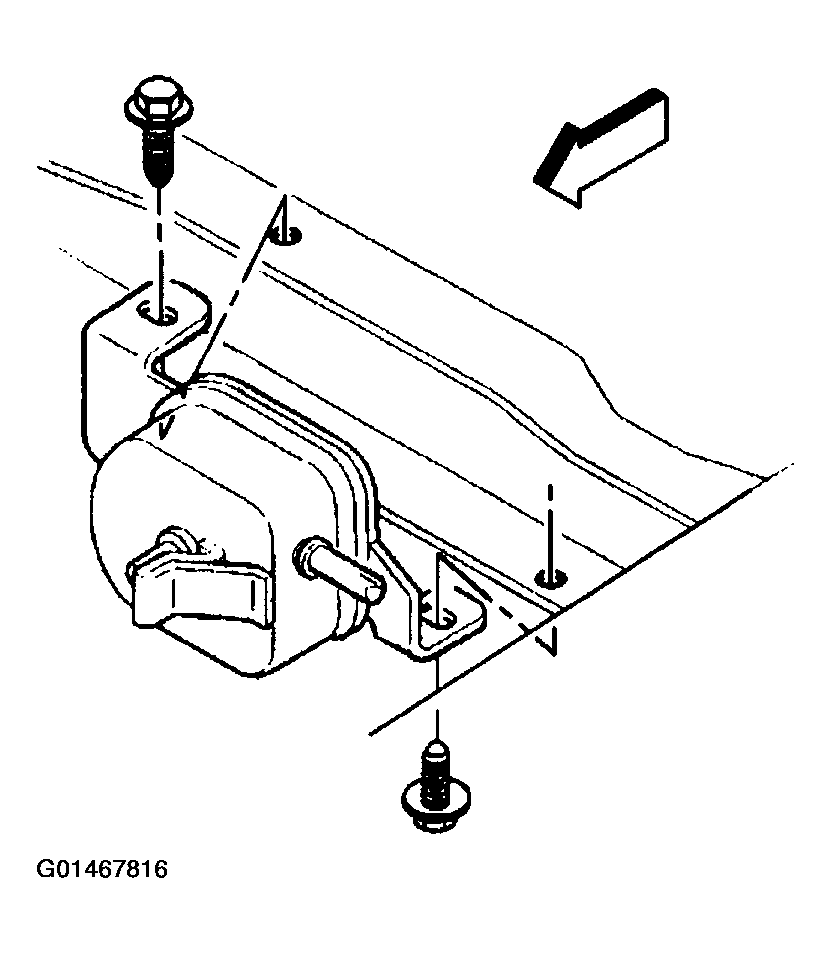

    Fig 1: Installing Tire Hoist Assembly To Vehicle
    G01467816Courtesy of GENERAL MOTORS CORP.
  3. Install hoist assembly mounting bolts to the frame.
  4. Install hoist assembly mounting nuts.
    1. Tighten
    2. Tighten the hoist assembly mounting nuts to 37 N.m (27 lb ft).
  5. Lower the vehicle.
  6. Install the spare tire to the spare tire carrier.

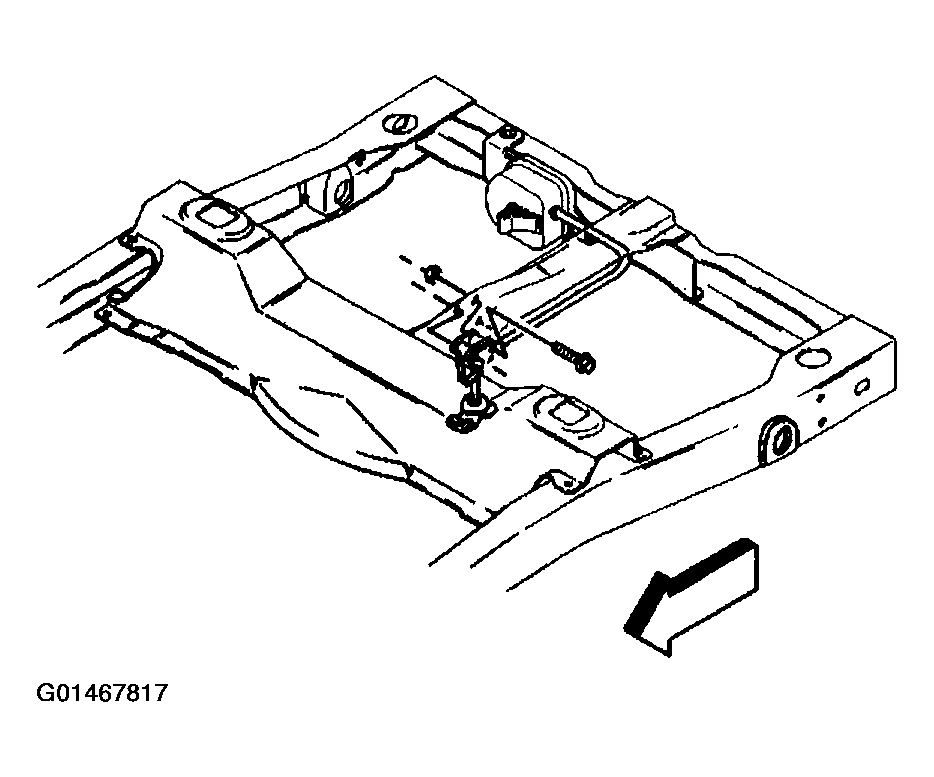

    Fig 2: Installing Tire Hoist Assembly Mounting Bolts To Frame
    G01467817Courtesy of GENERAL MOTORS CORP.
