Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rotor. Refer to WHEEL HUB, BEARING, AND SEAL REPLACEMENT (RWD PICKUP)  or WHEEL HUB, BEARING, AND SEAL REPLACEMENT (4WD PICKUP AND UTILITIES) .
  2. Remove the wheel stud.
    • Press the stud out using an arbor press.
    • Do not damage the wheel mounting surface on the wheel hub flange.

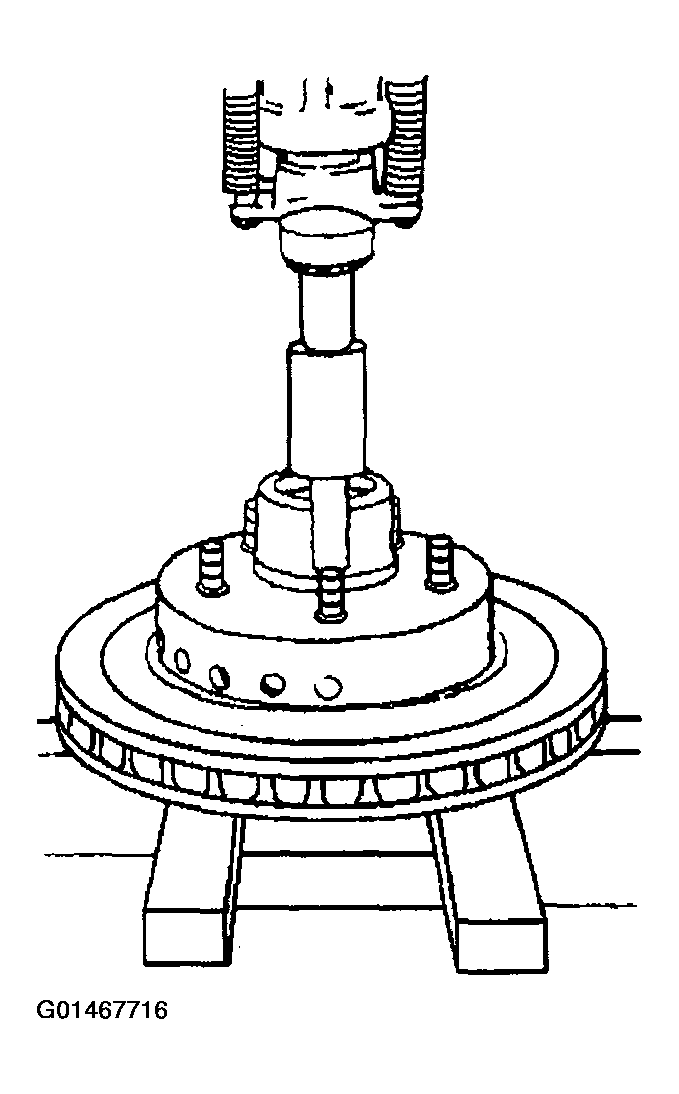

      Fig 1: Wheel Stud
      G01467716Courtesy of GENERAL MOTORS CORP.
