Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stud into the hole in the wheel hub.
    1. 1.1 Start the serrated stud into the hole in the wheel hub by tapping lightly with a hammer.
    2. 1.2 The stud must be square with the wheel hub before pressing on the arbor press.
  2. Install the rotor. Refer to WHEEL HUB, BEARING, AND SEAL REPLACEMENT (RWD PICKUP)  or WHEEL HUB, BEARING, AND SEAL REPLACEMENT (4WD PICKUP AND UTILITIES) .

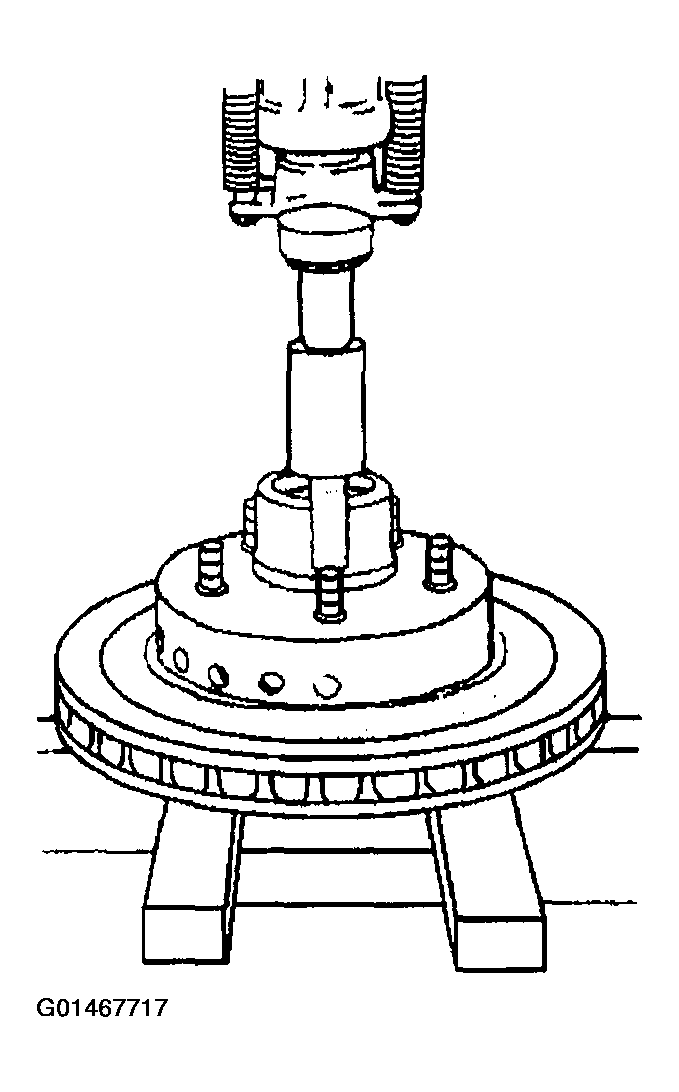

    Fig 1: Installing Stud Into Hole In Wheel Hub
    G01467717Courtesy of GENERAL MOTORS CORP.
