Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheel stud to the wheel hub and bearing.
  2. Install 4 washers to the wheel stud.
  3. Thread a wheel nut onto the new stud with the flat side facing the hub flange.
  4. Tighten the wheel nut until the new stud contacts the back of the hub flange.
  5. Remove the wheel nut and the washers.
  6. Install the rotor. Refer to BRAKE ROTOR -- FRONT in Disc Brakes.
  7. Install the tire and the wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  8. Lower the vehicle.

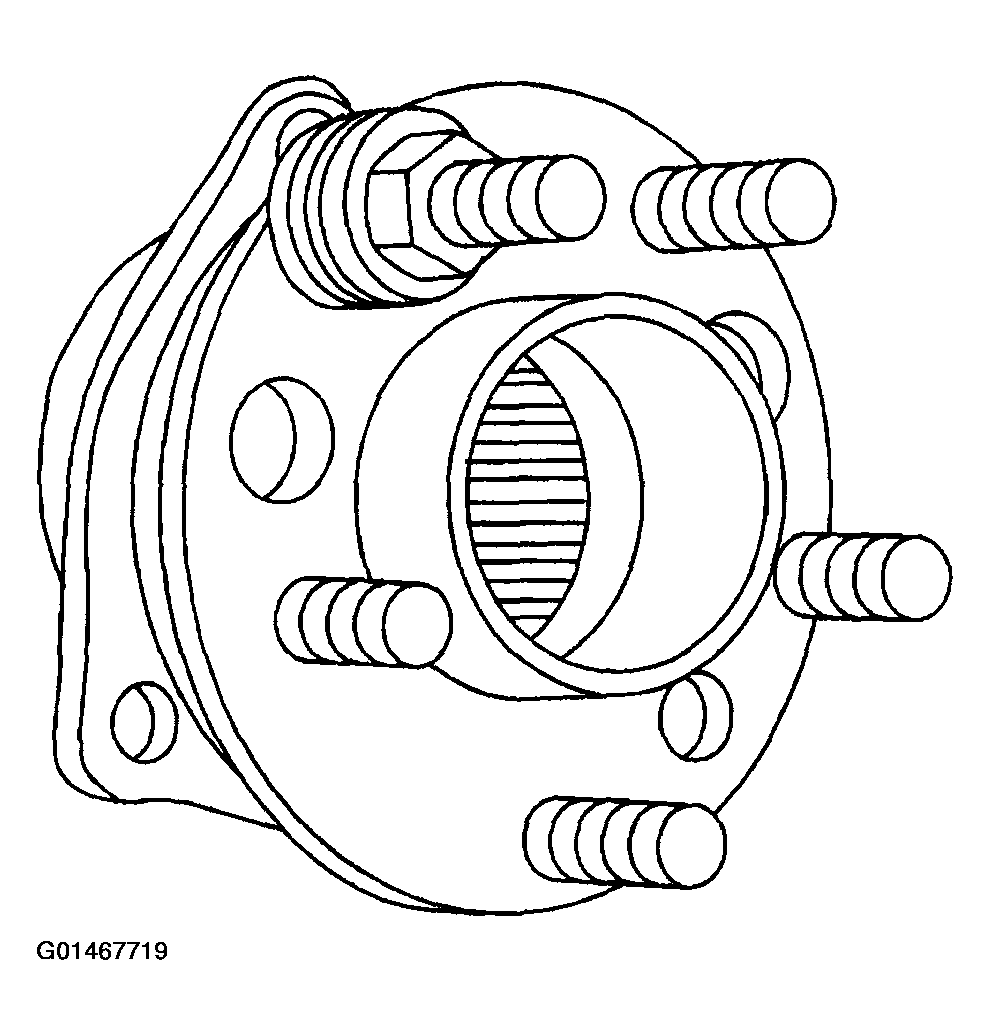

    Fig 1: Installing Washers & Nut To Wheel Stud
    G01467719Courtesy of GENERAL MOTORS CORP.
