Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper control arm from the vehicle. Refer to UPPER CONTROL ARM REPLACEMENT (RWD) or UPPER CONTROL ARM REPLACEMENT (4WD) .
Install the upper control arm in a vise.
Remove the washers and the nuts from upper control arm shaft.

Fig 1: Removing Washers & Nuts From Upper Control Arm Shaft
Courtesy of GENERAL MOTORS CORP.
Remove the upper control arm bushings. Use the J 22269-01 and J 21474-5 .

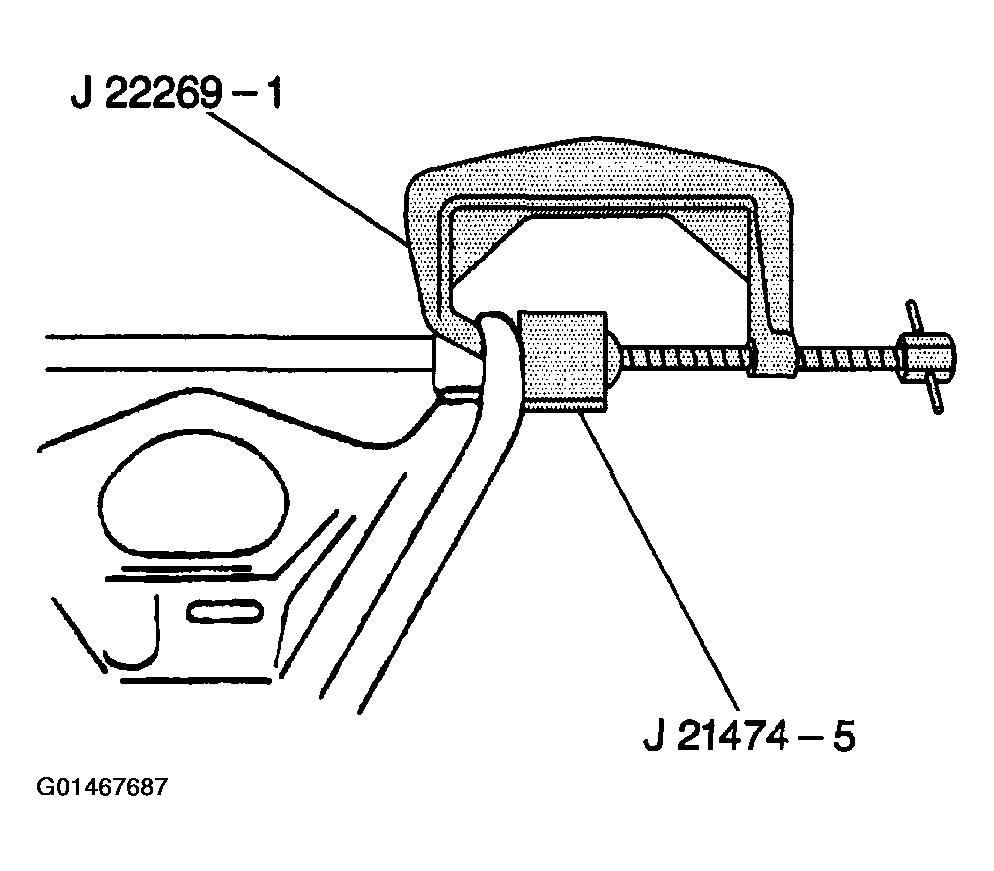

Fig 2: Upper Control Arm Bushings
Courtesy of GENERAL MOTORS CORP.
Remove the upper control arm shaft from the upper control arm.

Fig 3: Removing Upper Control Arm Shaft From Upper Control Arm
Courtesy of GENERAL MOTORS CORP.
