Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper control arm bushings using J 21474-01  .
  2. Remove the upper control arm from the vise.
  3. Install the upper control arm. Refer to UPPER CONTROL ARM REPLACEMENT (RWD)  or UPPER CONTROL ARM REPLACEMENT (4WD) .

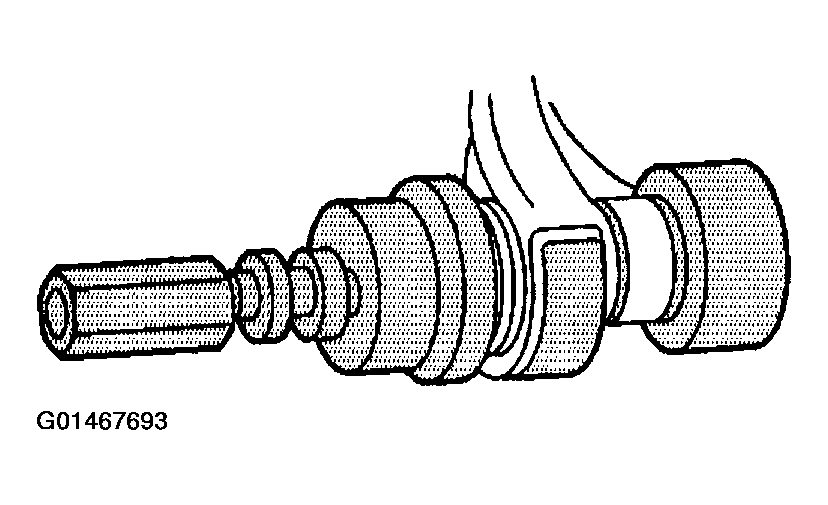

    Fig 1: Upper Control Arm Bushings
    G01467693Courtesy of GENERAL MOTORS CORP.
