Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle with safety stands. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.

    Important:  When you remove parts from the right side and the left side of the vehicle, keep the parts separated.

  3. Remove the stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT (RWD)  or STABILIZER SHAFT LINK REPLACEMENT (4WD) .
  4. Remove the stabilizer shaft bracket mounting bolts.
  5. Remove the stabilizer shaft brackets.
  6. Remove the stabilizer shaft.
  7. Remove stabilizer shaft insulators from stabilizer shaft.
  8. Inspect all of the parts for wear and damage.

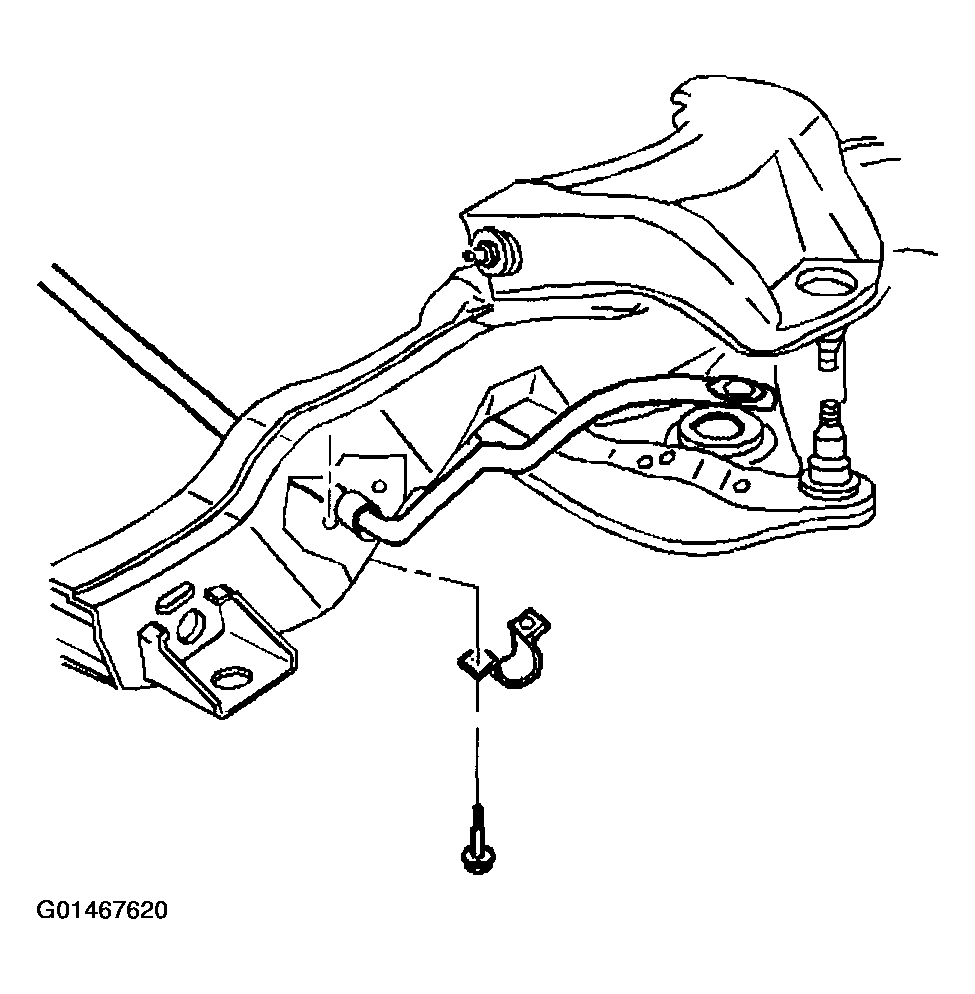

    Fig 1: Stabilizer Shaft
    G01467620Courtesy of GENERAL MOTORS CORP.
