Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft insulators to the stabilizer shaft with the slits facing the front of the vehicle.
  2. Install the stabilizer shaft.
  3. Install the stabilizer shaft brackets over the stabilizer shaft insulators.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the stabilizer shaft bracket mounting bolts.

    Tighten

    Tighten the stabilizer shaft bracket mounting bolts 36 N.m (26 lb ft).

  5. Install the stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT (RWD)  or STABILIZER SHAFT LINK REPLACEMENT (4WD) .
  6. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  7. Lower the vehicle.

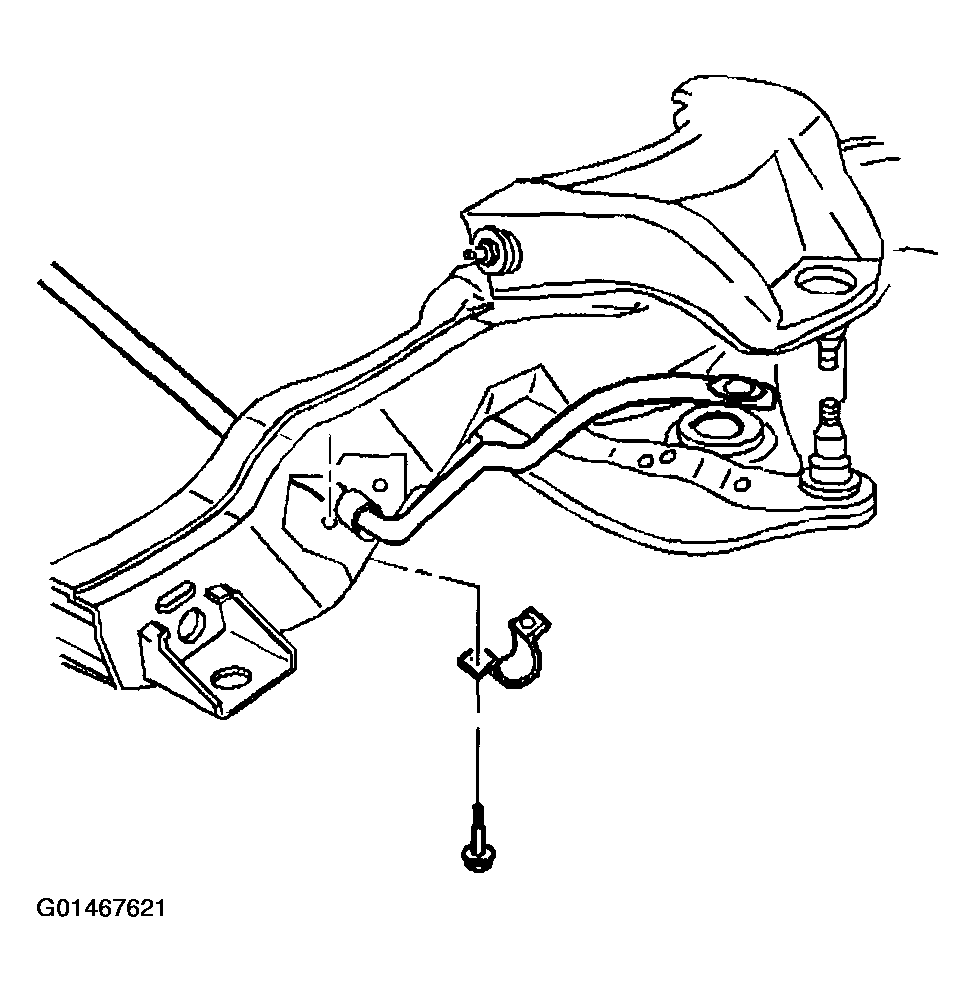

    Fig 1: Stabilizer Shaft
    G01467621Courtesy of GENERAL MOTORS CORP.
