Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle with safety stands. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the steering linkage shield. Refer to STEERING LINKAGE SHIELD REPLACEMENT in Steering Linkage.

    Important:  Remove the parts from the right front and the left front of the vehicle. Keep the parts separated.

  3. Remove the stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT (RWD)  or STABILIZER SHAFT LINK REPLACEMENT (4WD) .
  4. Remove the stabilizer shaft bracket mounting bolts.
  5. Remove the stabilizer shaft brackets.
  6. Remove the stabilizer shaft.
  7. Remove the stabilizer shaft insulators.
  8. Inspect all of the parts for wear or damage.

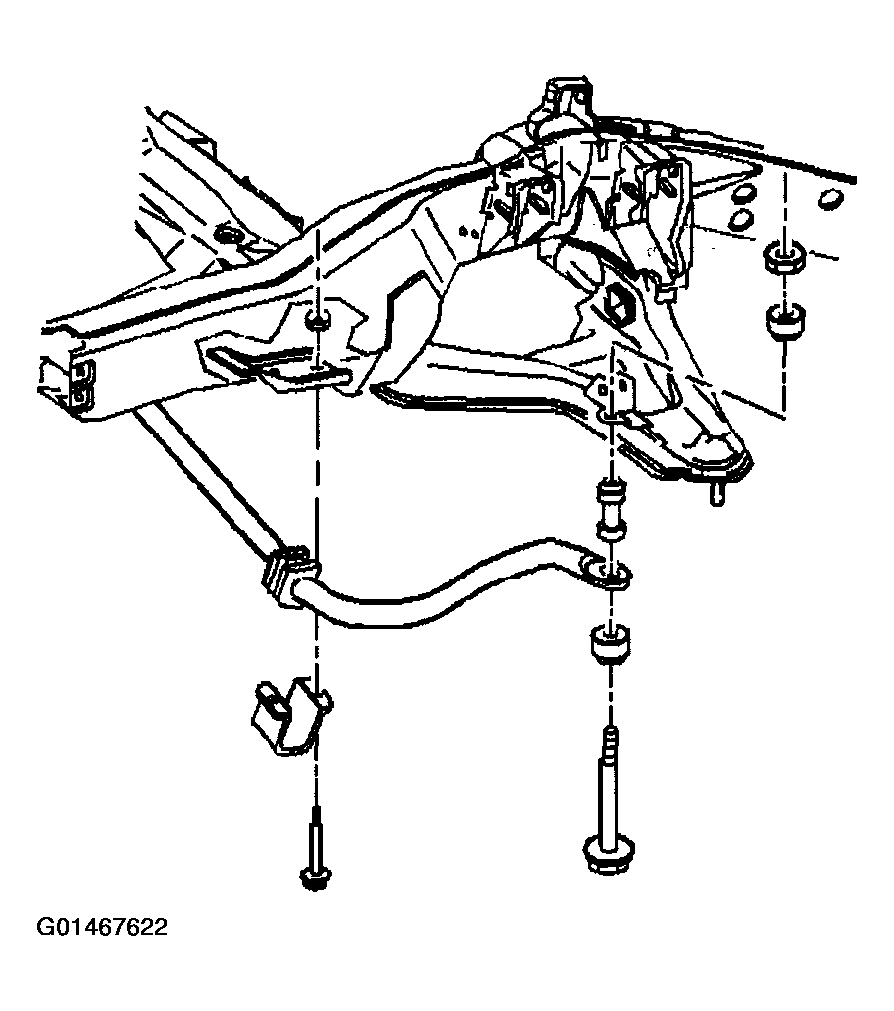

    Fig 1: Stabilizer Shaft
    G01467622Courtesy of GENERAL MOTORS CORP.
