Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle with safety stands. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the to the stabilizer shaft link retaining nut.
  4. Remove the retainers from the stabilizer shaft link bolt.
  5. Remove the grommets from the stabilizer shaft link bolt.
  6. Remove the following parts from the stabilizer shaft link bolt:
    1. 6.1 The grommet
    2. 6.2 The retainer
    3. 6.3 The spacer
    4. 6.4 The retainer
    5. 6.5 The grommet

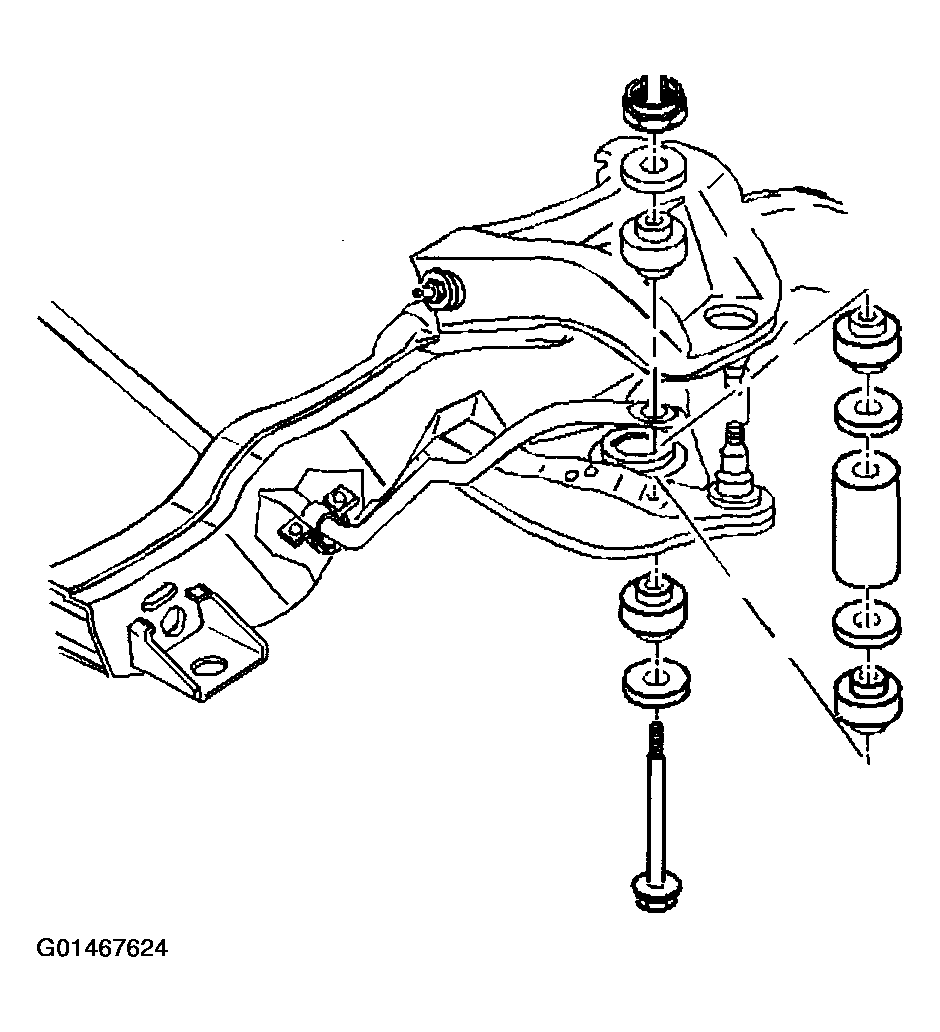

      Fig 1: Stabilizer Shaft Link
      G01467624Courtesy of GENERAL MOTORS CORP.
