Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft link insulators to the stabilizer shaft link bolt.
  2. Install the stabilizer shaft link bolt through the stabilizer shaft.
  3. Install the stabilizer shaft link spacer.
  4. Install the stabilizer shaft link bolt through the lower control arm with the parts stacked properly.
  5. Install the stabilizer shaft link upper retainer.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Tighten the stabilizer shaft link bolt.

    Tighten

    Tighten the stabilizer shaft link bolt to 15 N.m (11 lb ft).

  7. Lower the vehicle.

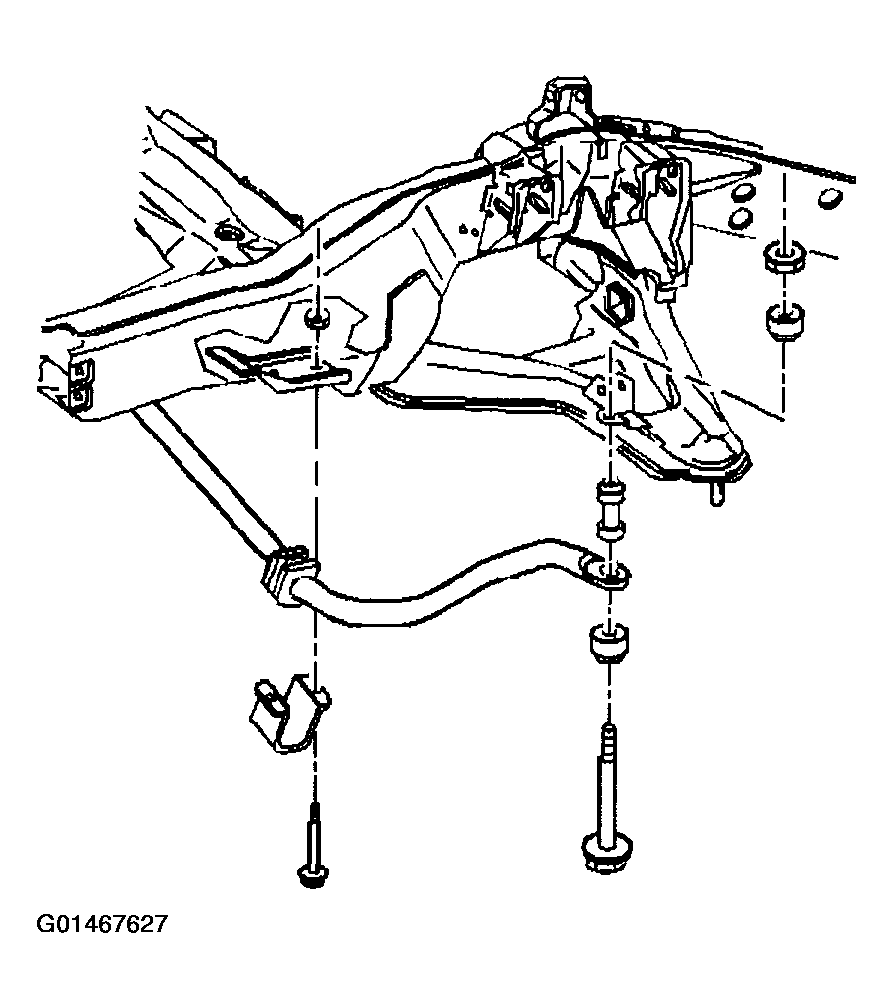

    Fig 1: Stabilizer Shaft Link
    G01467627Courtesy of GENERAL MOTORS CORP.
