Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the steering linkage shield. Refer to STEERING LINKAGE SHIELD REPLACEMENT in Steering Linkage.
  3. Remove the stabilizer shaft bracket mounting bolts.
  4. Remove the stabilizer shaft bracket.
  5. Remove the stabilizer shaft insulator.

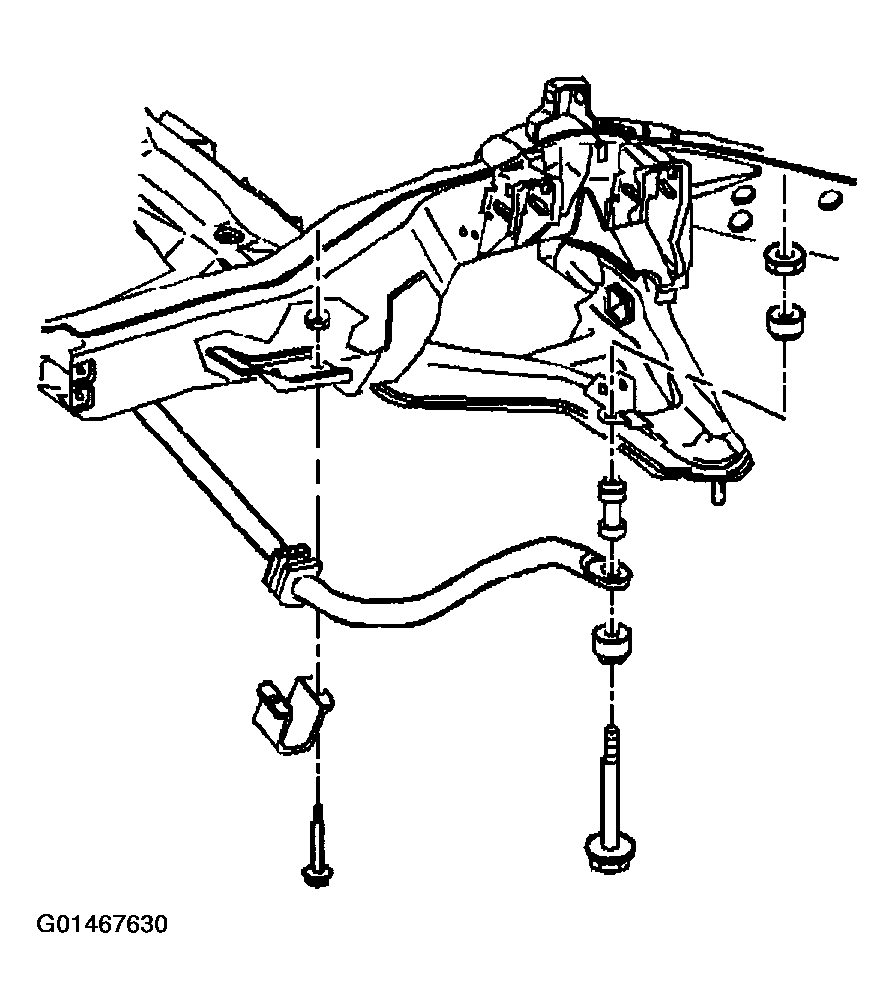

    Fig 1: Stabilizer Shaft Insulator
    G01467630Courtesy of GENERAL MOTORS CORP.
