Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer shaft insulator to the stabilizer shaft. Face the slit in the stabilizer shaft insulator forward.
  2. Install the stabilizer shaft bracket over the stabilizer shaft insulator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the stabilizer shaft bracket mounting bolts.

    Tighten

    Tighten the stabilizer shaft mounting bracket bolts to 65 N.m (48 lb ft).

  4. Install the steering linkage shield. Refer to STEERING LINKAGE SHIELD REPLACEMENT in Steering Linkage.
  5. Lower the vehicle.

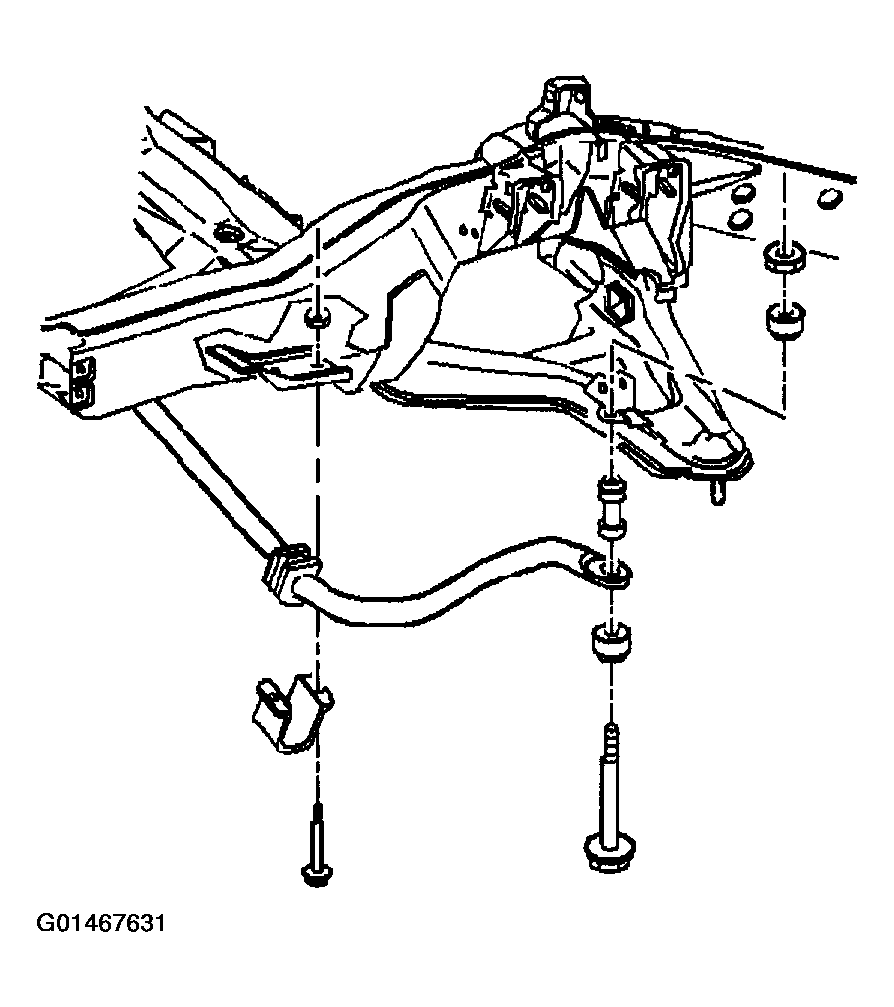

    Fig 1: Stabilizer Shaft Insulator
    G01467631Courtesy of GENERAL MOTORS CORP.
