Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retainer and the grommet on the stem. Fully extend the stem.
  2. Install the shock absorber up through the lower control arm and the spring. Insert the stem end through the hole in the upper control arm frame bracket.
  3. Install the grommet to the stem.
  4. Install the retainer to the stem.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the shock absorber upper nut.

    Tighten

    Tighten the shock absorber upper nut to 12 N.m (106 lb in), while holding the stem with a wrench.

  6. Install new nuts, if needed.
  7. Install the shock absorber lower bolts through the pivot holes to the lower control arm holes.

    Tighten

    Tighten the shock absorber lower bolts to 30 N.m (22 lb ft).

  8. Lower the vehicle.

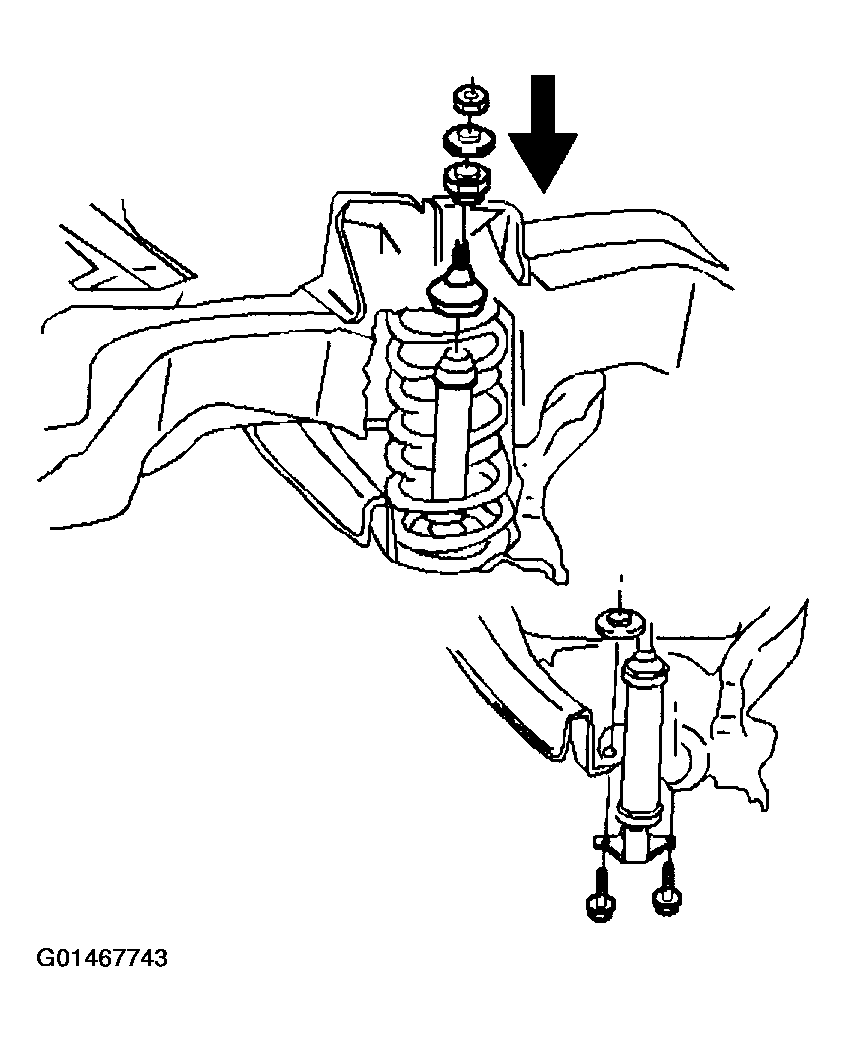

    Fig 1: Shock Absorber
    G01467743Courtesy of GENERAL MOTORS CORP.
