Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the shock absorber lower mounting nut and bolt.
  4. Remove the shock absorber upper mounting nut and bolt.
  5. Remove the shock absorber.

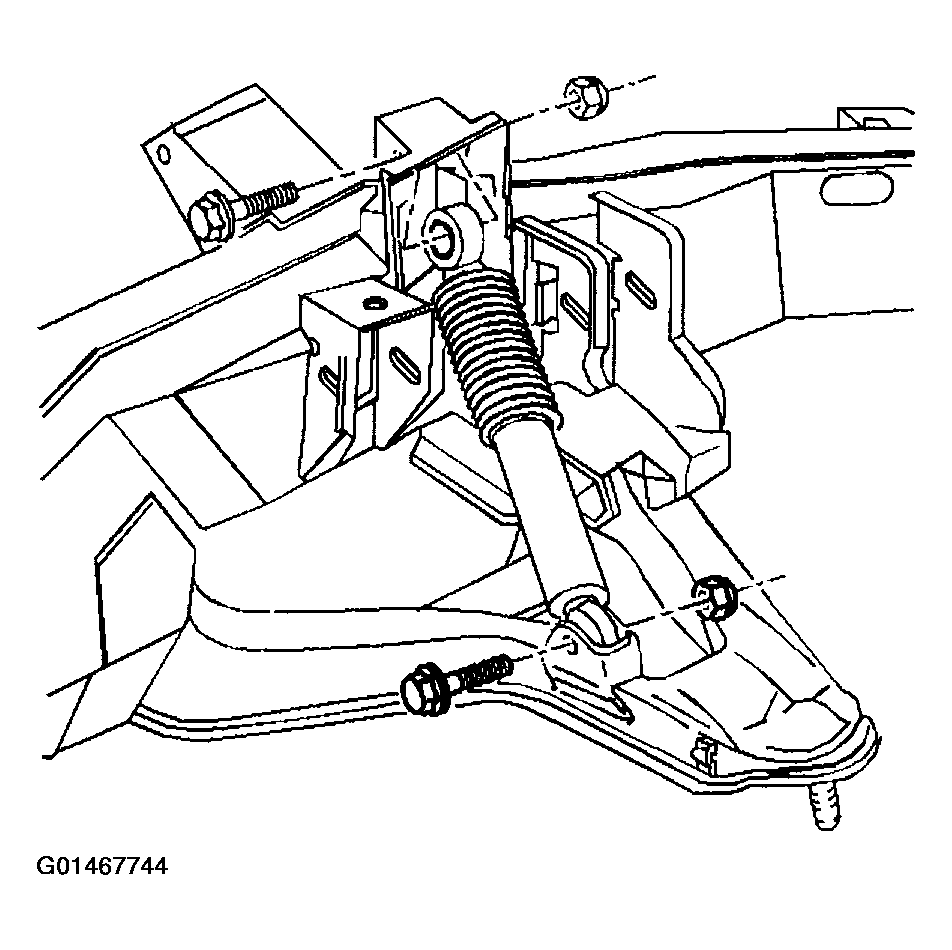

    Fig 1: Shock Absorber
    G01467744Courtesy of GENERAL MOTORS CORP.
