Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower control arm from the vehicle. Refer to LOWER CONTROL ARM REPLACEMENT (RWD)  or LOWER CONTROL ARM REPLACEMENT (4WD) .
  2. Install the lower control arm in a vise.
  3. Remove the rear bushing.
    1. 3.1 Install the following tools:
      • The J 22269-01
      • The J 21474-8
      • The J 21474-12
      • The J 21474-13
    2. 3.2 Tighten until the rear bushing becomes free.

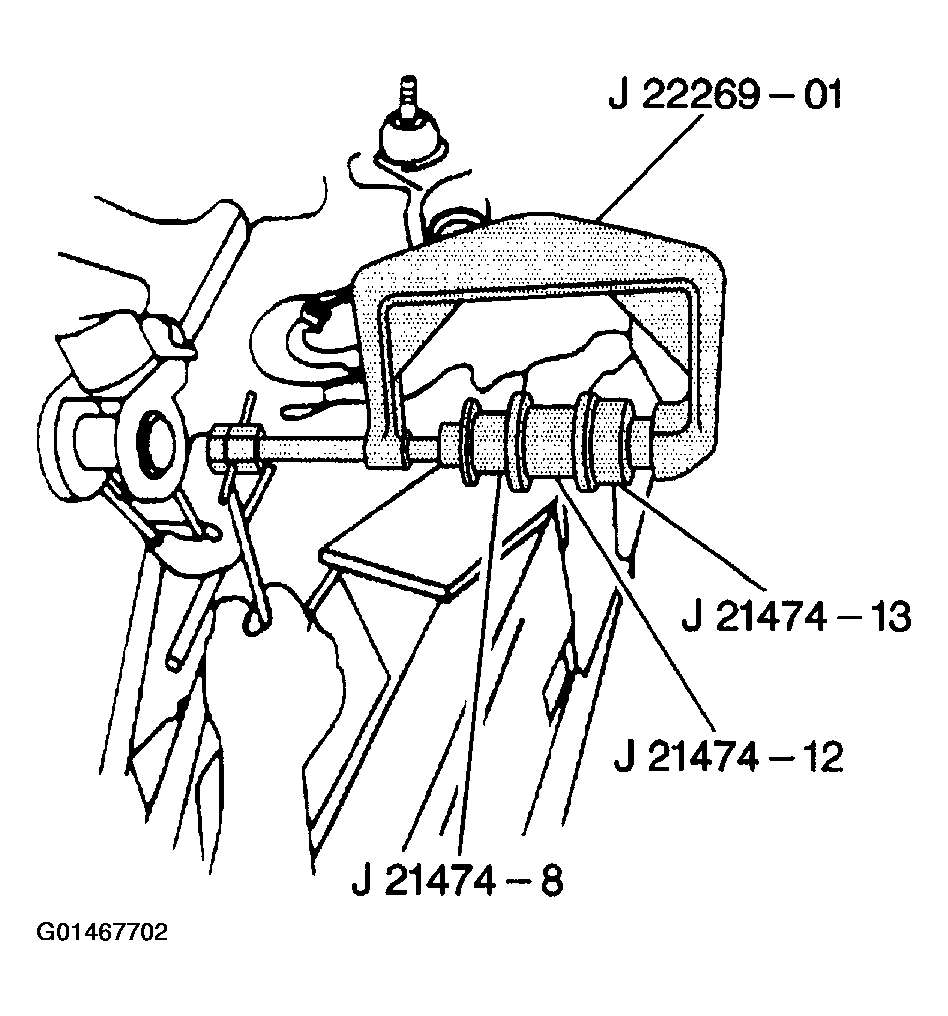

    Fig 1: Rear Bushing
    G01467702Courtesy of GENERAL MOTORS CORP.
  4. Using a blunt chisel, drive the front bushing flare down flush with the rubber part of the bushing.
  5. Prior to removing or installing the front bushing, place a wedge or spacer between the control arm bushing housing. This keeps the control arm bushing housing from bending while removing or installing the bushing.
  6. Remove the front bushing.
    1. 6.1 Install the following tools:
      • The J 21474-3
      • The J 21474-4
      • The J 21474-5
      • The J 21474-6
    2. 6.2 Tighten until the bushing is partially removed.
    3. 6.3 Reverse the J 21474-6  .
    4. 6.4 Tighten until the front bushing becomes free.

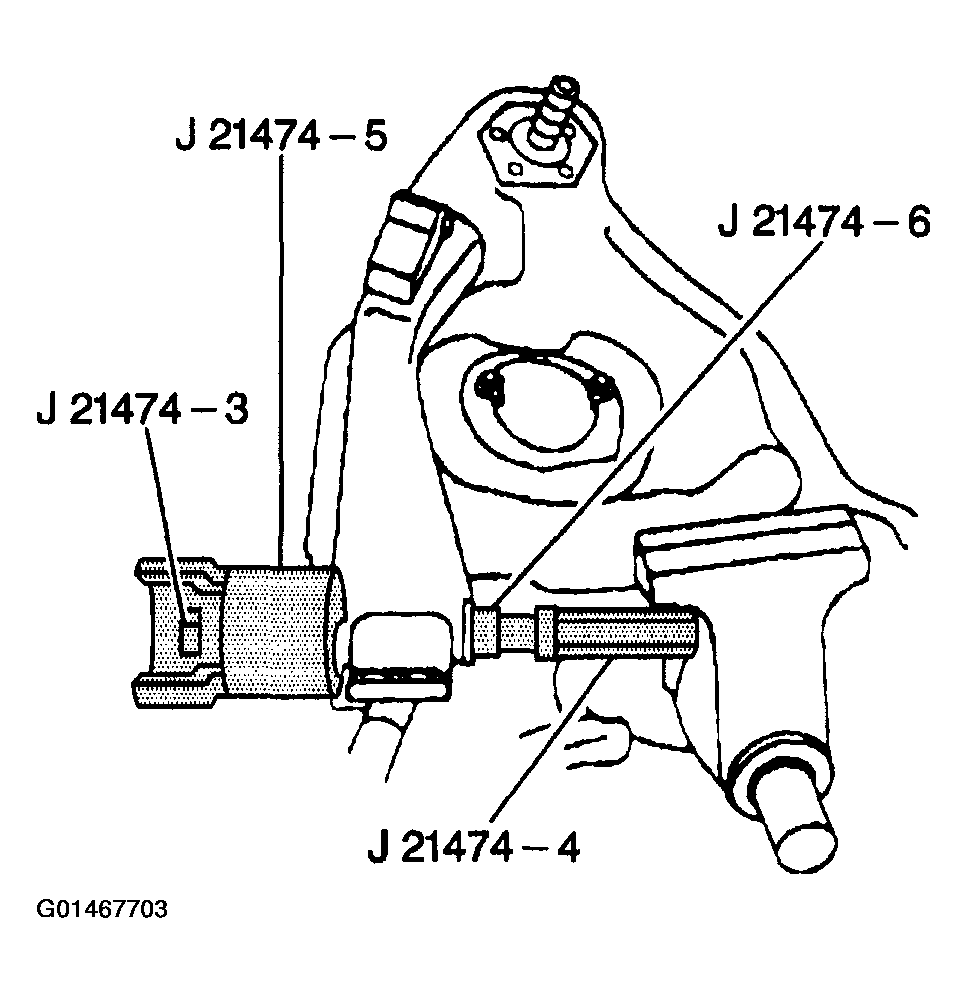

    Fig 2: Front Bushing
    G01467703Courtesy of GENERAL MOTORS CORP.
