Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower control arm. Refer to LOWER CONTROL ARM REPLACEMENT (RWD)  or LOWER CONTROL ARM REPLACEMENT (4WD) .
  2. Remove the front bushing. Use the J 21474-01  .

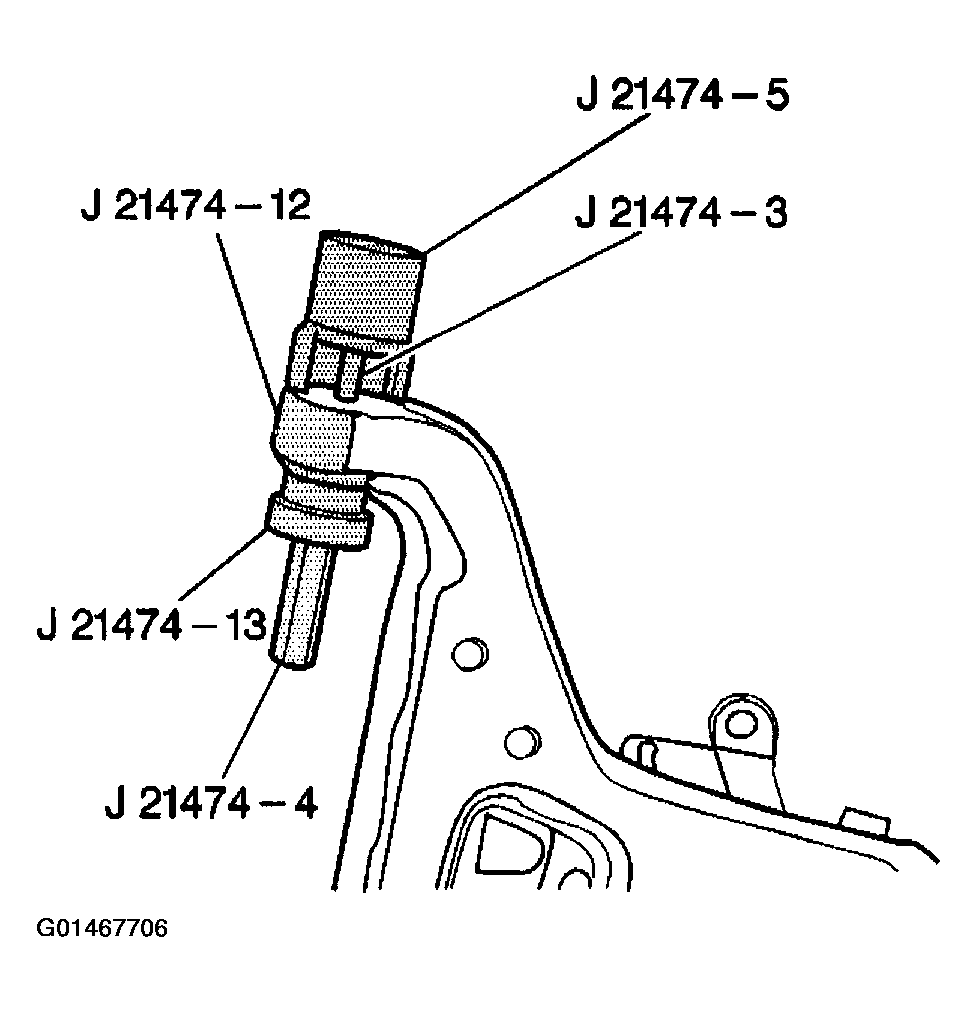

    Fig 1: Front Bushing
    G01467706Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear bushing. Use the J 21474-01

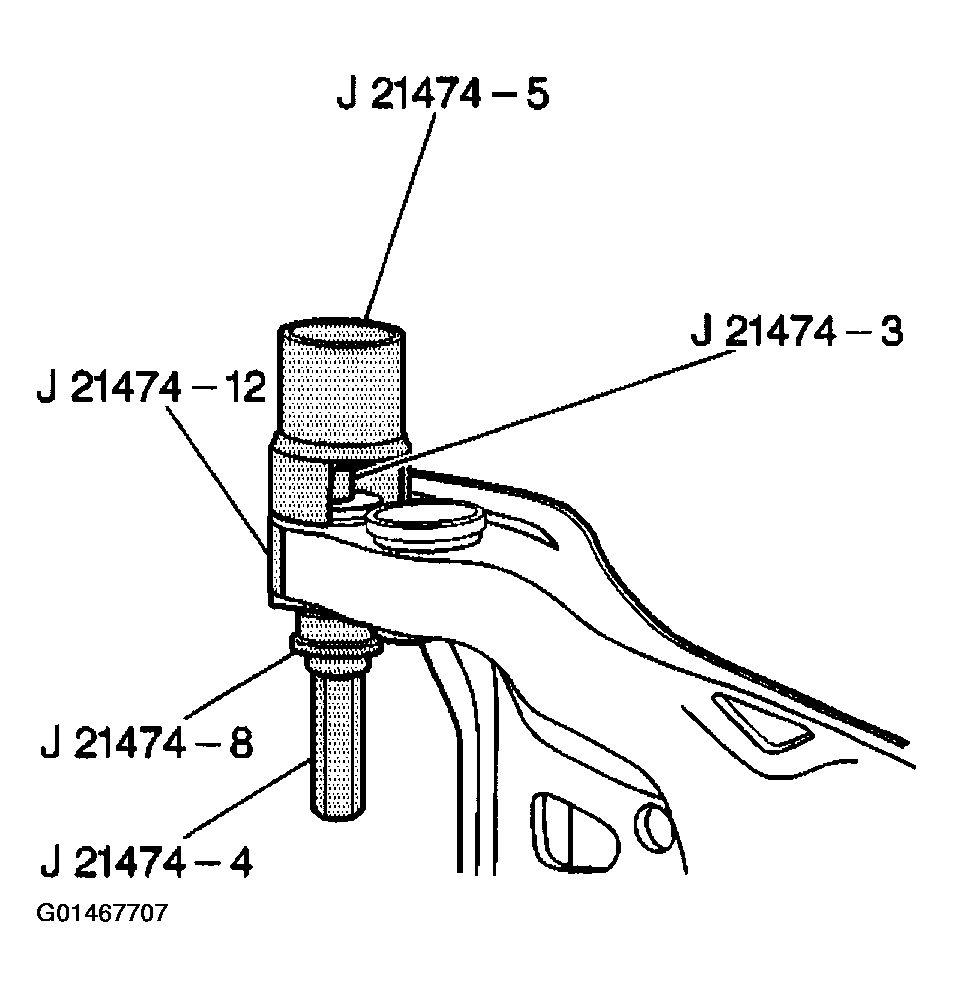

    Fig 2: Rear Bushing
    G01467707Courtesy of GENERAL MOTORS CORP.
