Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the front bushing. Use the J 21474-01

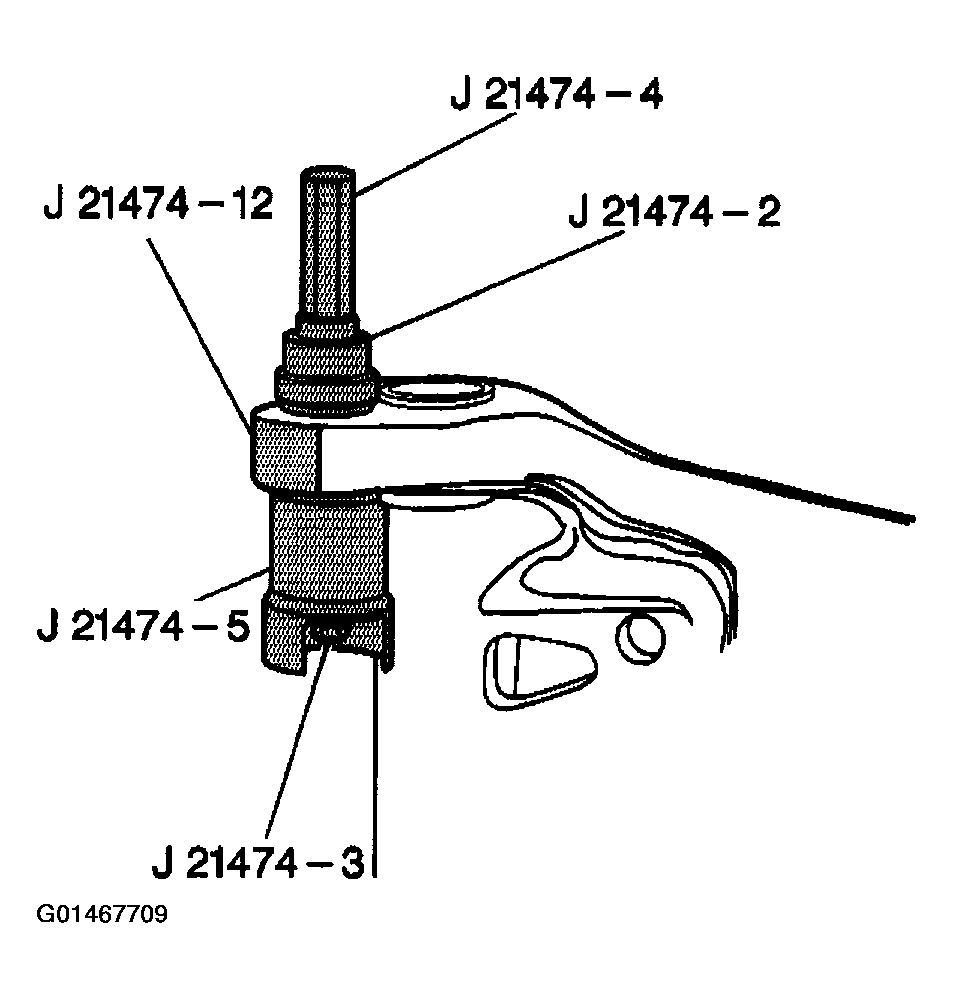

Fig 1: Front Bushing
Courtesy of GENERAL MOTORS CORP.
Install the rear bushing. Use the J 21474-01 .
Install the lower control arm. Refer to LOWER CONTROL ARM REPLACEMENT (RWD) or LOWER CONTROL ARM REPLACEMENT (4WD) .

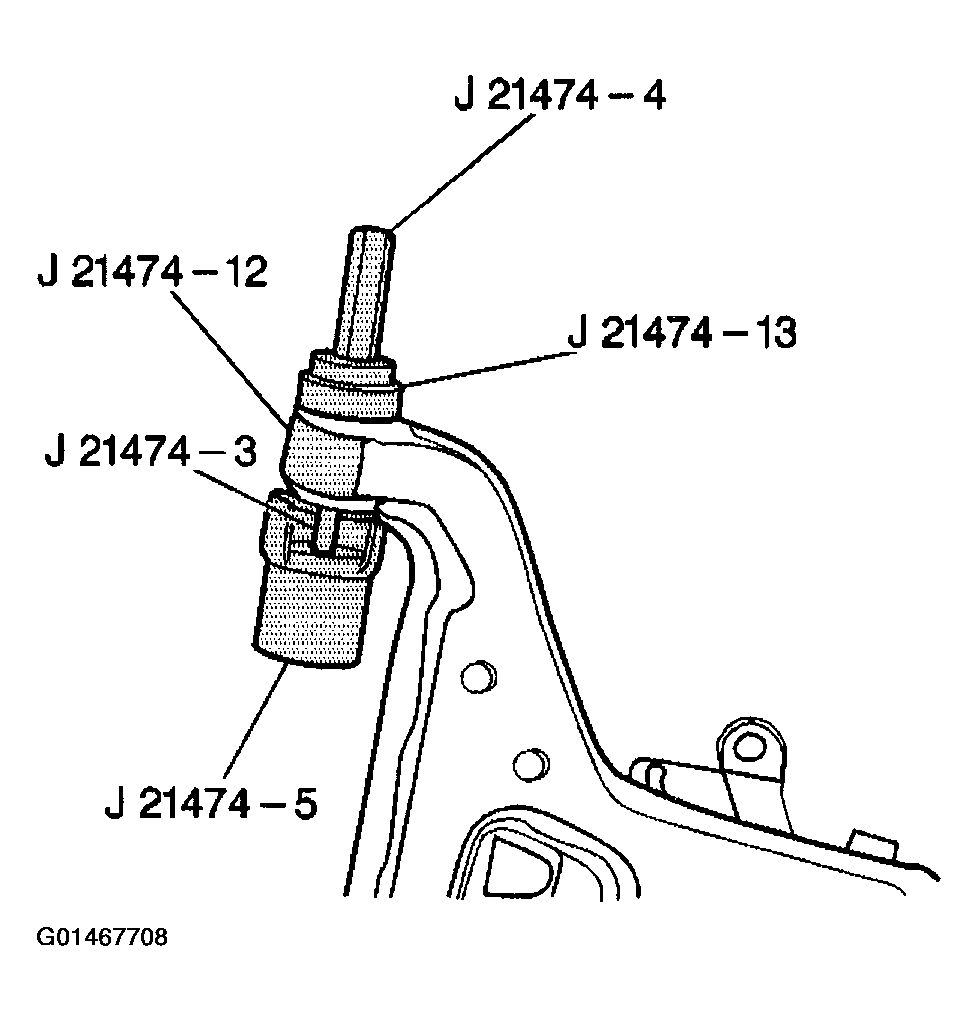

Fig 2: Rear Bushing
Courtesy of GENERAL MOTORS CORP.
