Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Unload the torsion bar. Refer to TORSION BAR AND SUPPORT ASSEMBLY REPLACEMENT .
  4. Remove the wheel drive shaft. Refer to WHEEL DRIVE SHAFT REPLACEMENT in Wheel Drive Shafts.
  5. Drill a pilot hole in the lower ball joint rivets using a 3.175 mm (1/8 in) drill to cut a 6.35 mm (1/4 in) deep hole in the center of each rivet.

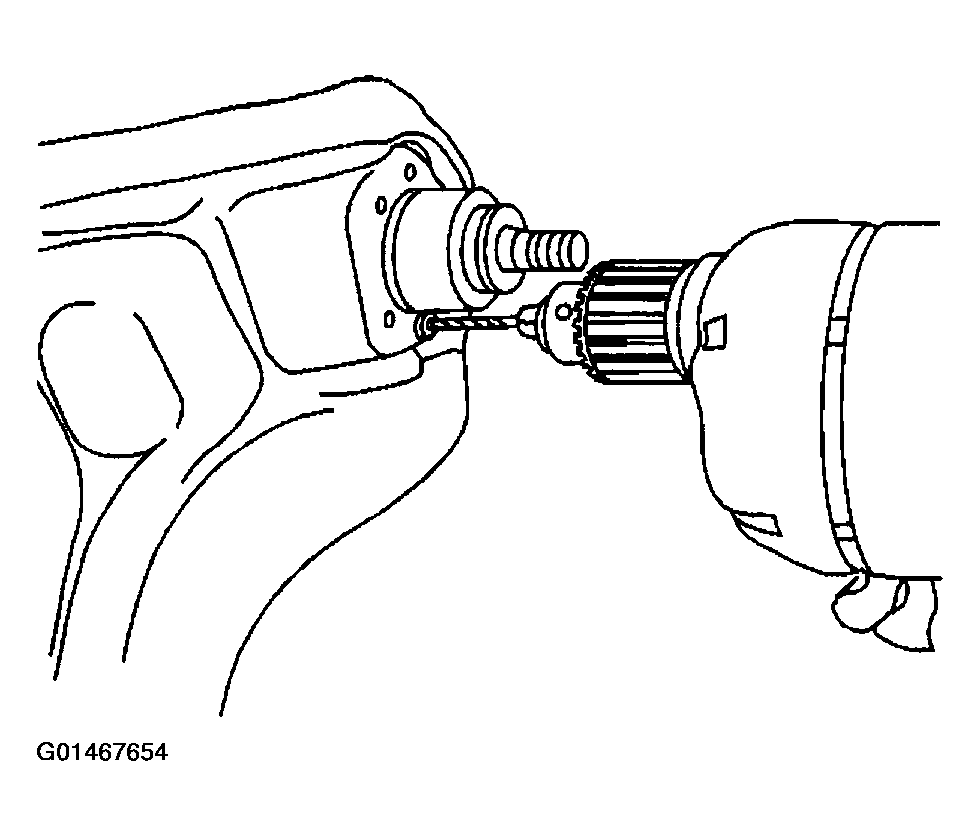

    Fig 1: Drilling Hole In Lower Ball Joint Rivet
    G01467654Courtesy of GENERAL MOTORS CORP.
  6. Drill the rivet heads away using a 12.7 mm (1/2 in) drill.
    Fig 2: Drilling Rivet Heads Away
    G01467655Courtesy of GENERAL MOTORS CORP.
  7. Remove the rivets using a pin punch.
  8. Remove the lower ball joint from lower control arm.

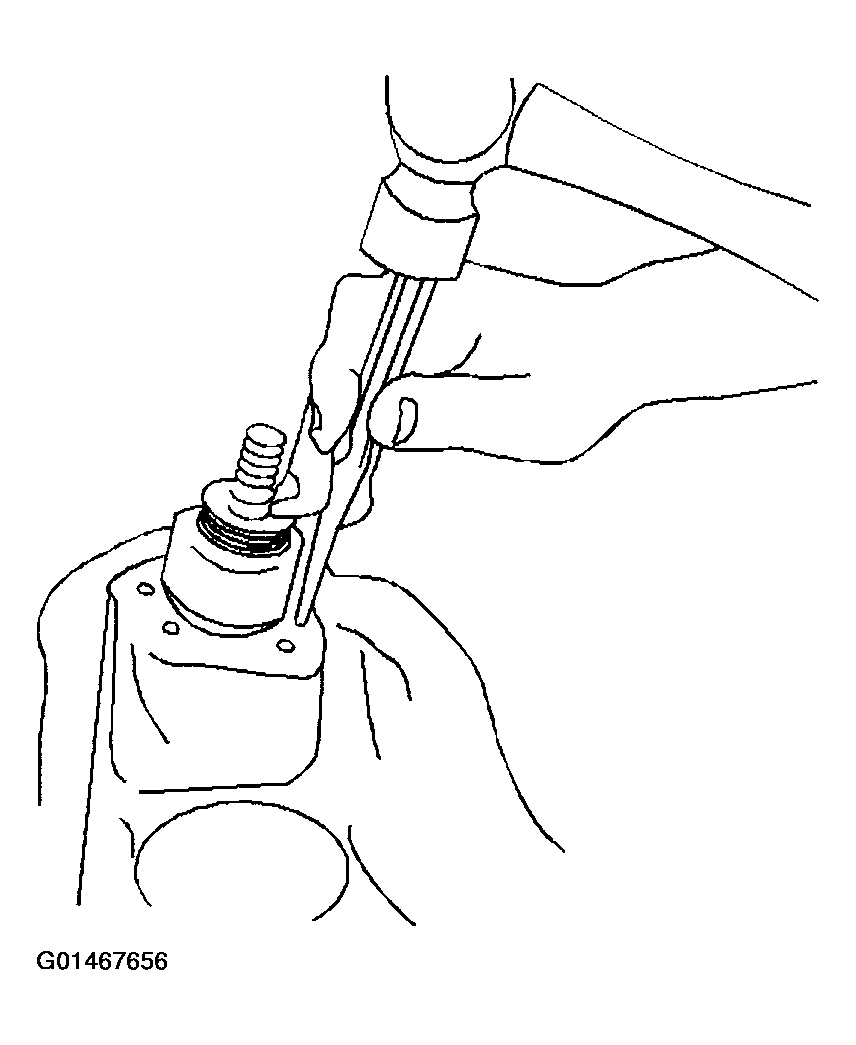

    Fig 3: Removing Rivets Using Pin Punch
    G01467656Courtesy of GENERAL MOTORS CORP.
