Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower ball joint to the lower control arm.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the lower ball joint retaining bolts and the nuts.

    Tighten

    Tighten the lower ball joint retaining nuts to 23 N.m (17 lb ft).

  3. Install the wheel drive shaft. Refer to WHEEL DRIVE SHAFT REPLACEMENT in Wheel Drive Shafts.
  4. Load the torsion bar. Refer to TORSION BAR AND SUPPORT ASSEMBLY REPLACEMENT .
  5. Install the tire and the wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.

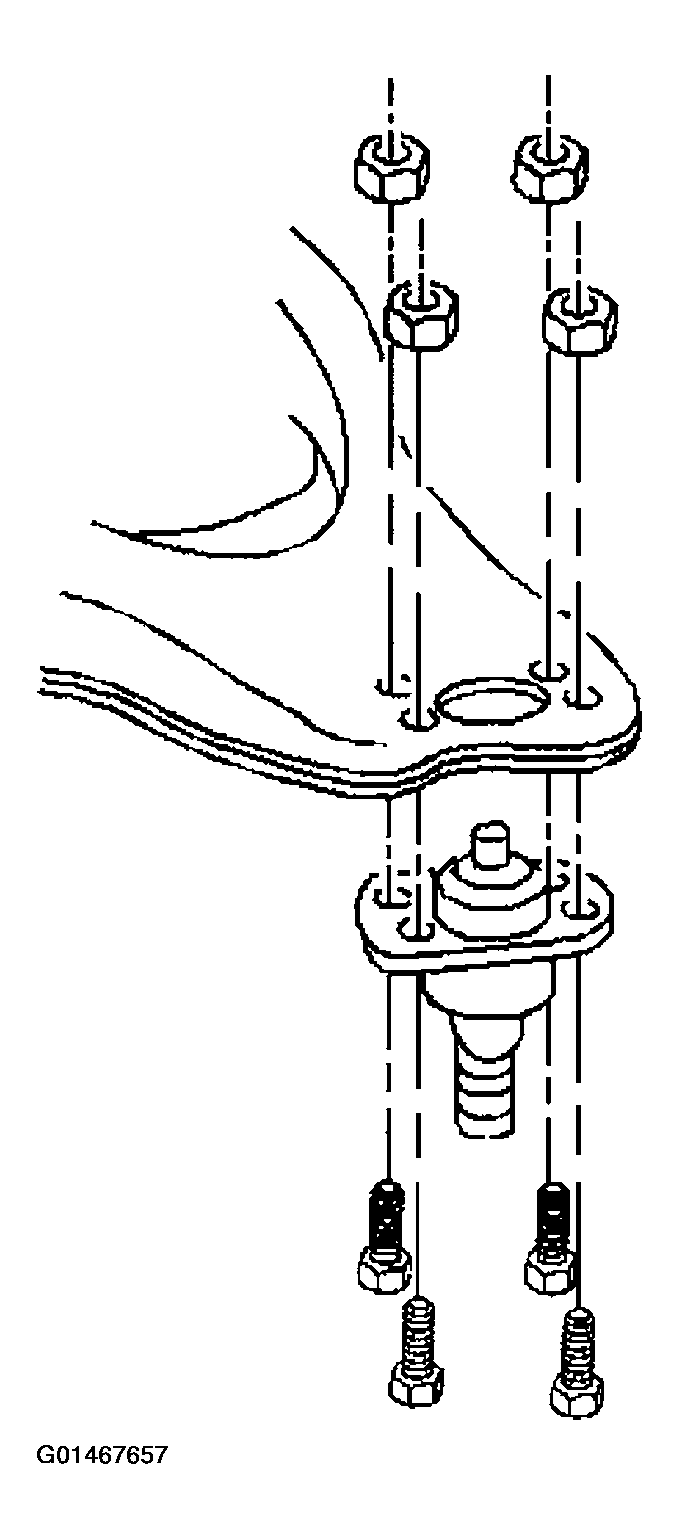

    Fig 1: Installing Lower Ball Joint To Lower Control Arm
    G01467657Courtesy of GENERAL MOTORS CORP.
  6. Lower the vehicle.
  7. Check the front wheel alignment. Refer to MEASURING WHEEL ALIGNMENT in Wheel Alignment.

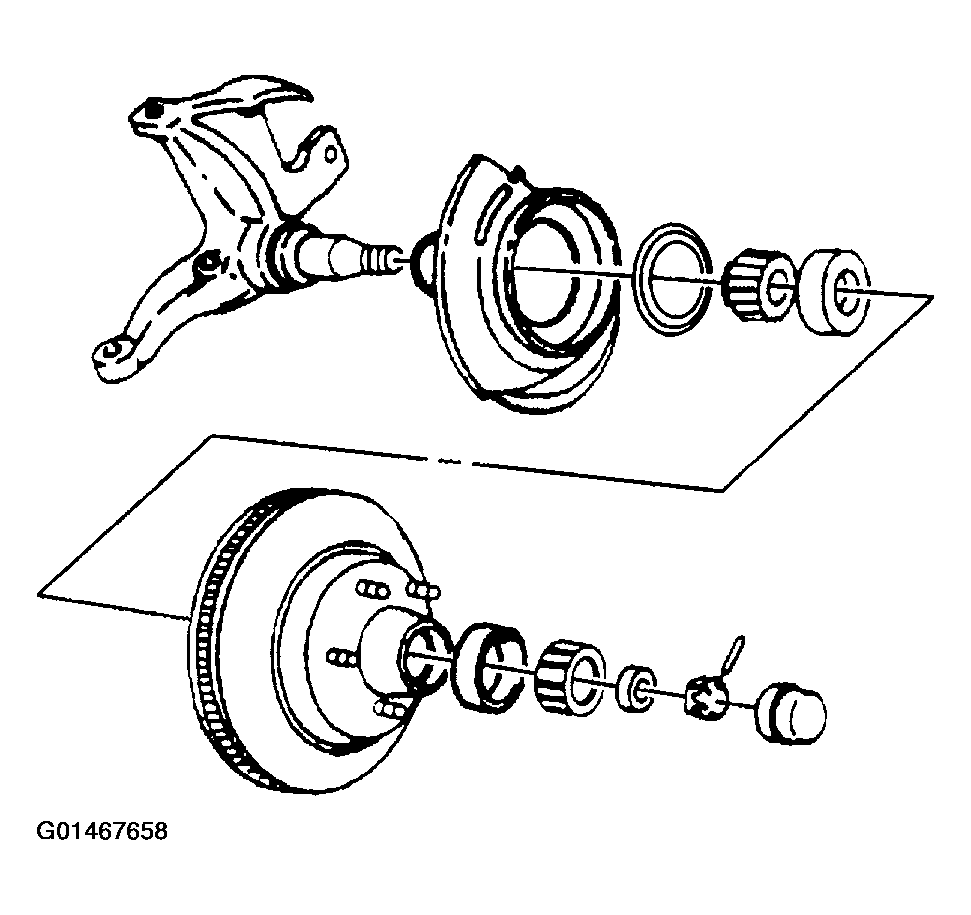

    Fig 2: Adjusting Front Wheel Bearings
    G01467658Courtesy of GENERAL MOTORS CORP.
