Front Caster and Camber Adjustment (4WD)

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

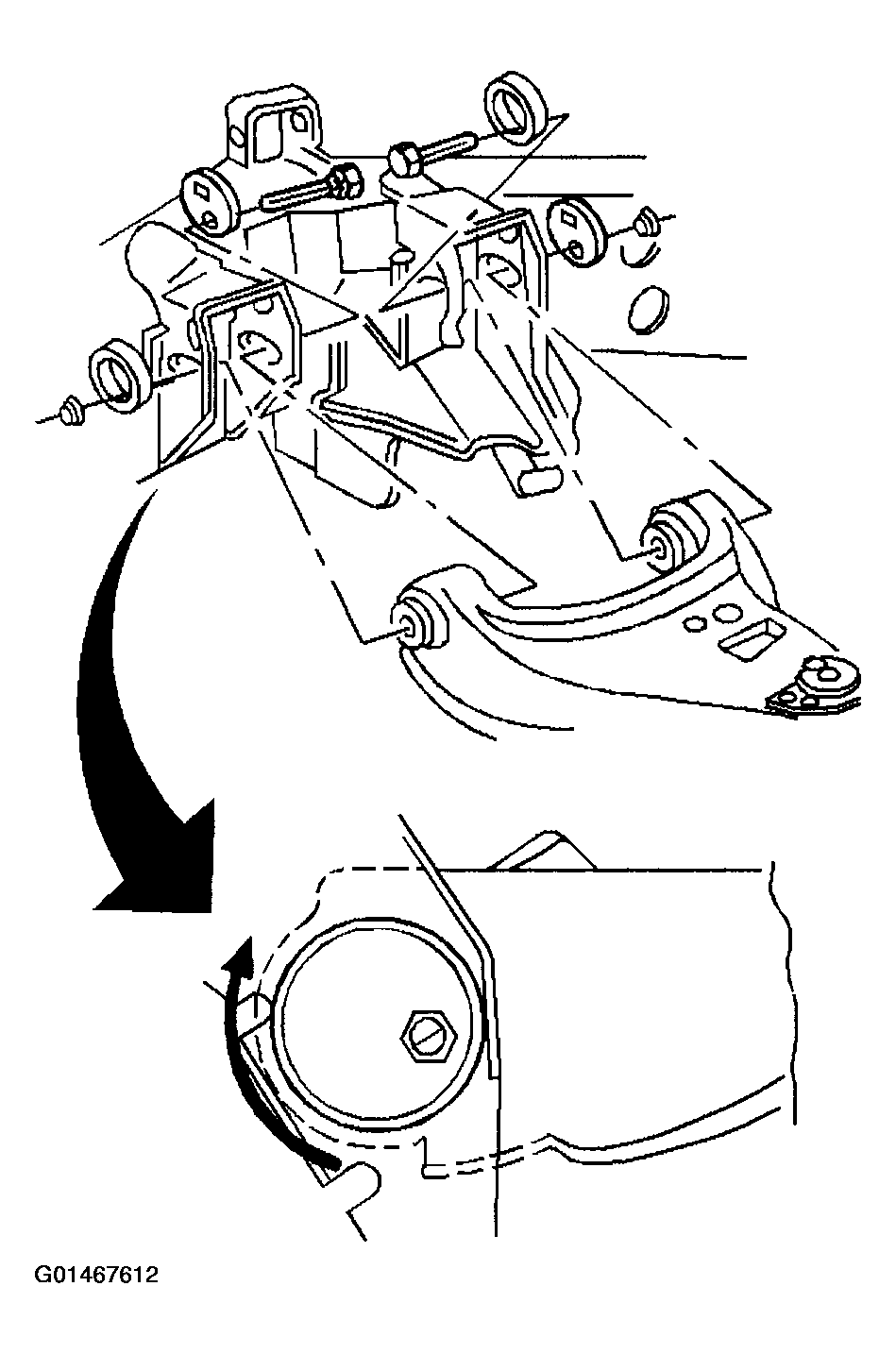

Fig 1: Adjusting Front Caster & Camber (4WD)

Courtesy of GENERAL MOTORS CORP.

Important: Before adjusting the caster angle and camber angle, raise and release the front bumper. Do this twice in order to allow the vehicle to return to a normal height. Refer to WHEEL ALIGNMENT SPECIFICATIONS .

Use the cams on the upper control arm frame attaching bolts to adjust the caster and the camber.
To adjust the caster and the camber, loosen the upper control arm-to-frame attaching nuts. Rotate the cam by rotating the bolt head.
- Caster- To increase positive caster, move the front cam lobe inboard and move the rear cam lobe outboard.
- Camber- To increase positive camber, move the front and the rear cam lobes inboard.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Tighten the nuts after you select the proper cam position.
Tighten
1. Tighten the nuts to 115 N.m (85 lb ft).
