Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SIR CAUTION in Cautions and Notices.

Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
Install the tilt lever onto the steering column tilt head assembly.
Use the tilt lever to tilt the column to the UP position.

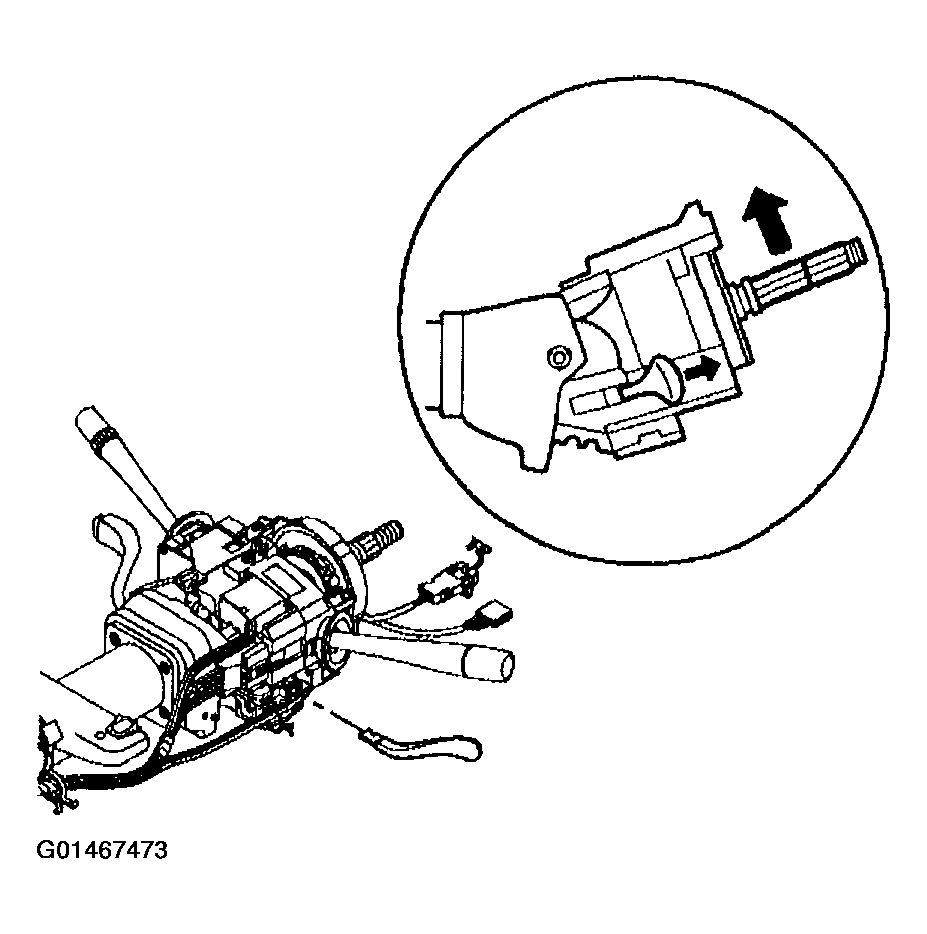

Fig 1: Using Tilt Lever For Lifting Up Tilt Column
Courtesy of GENERAL MOTORS CORP.

CAUTION: The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during removal. Secure the spring with locking pliers during installation. Bodily injury may result during removal and installation of the tilt spring and the spring guide. Always use caution during removal and installation of the tilt spring and the spring guide.
Remove the tilt spring (1) from the steering column support assembly (2) and from the steering column tilt head assembly (3) by using the following procedure:
1. 5.1. Pry up the tilt spring (1) until a bulge occurs and most of the tilt spring tension is removed.
2. 5.2. Secure the tilt spring (1) with locking pliers.
3. 5.3. Continue prying up the tilt spring (1) until the tilt spring disengages from the post on the steering column support assembly (2) and from the steering column tilt head assembly (3).

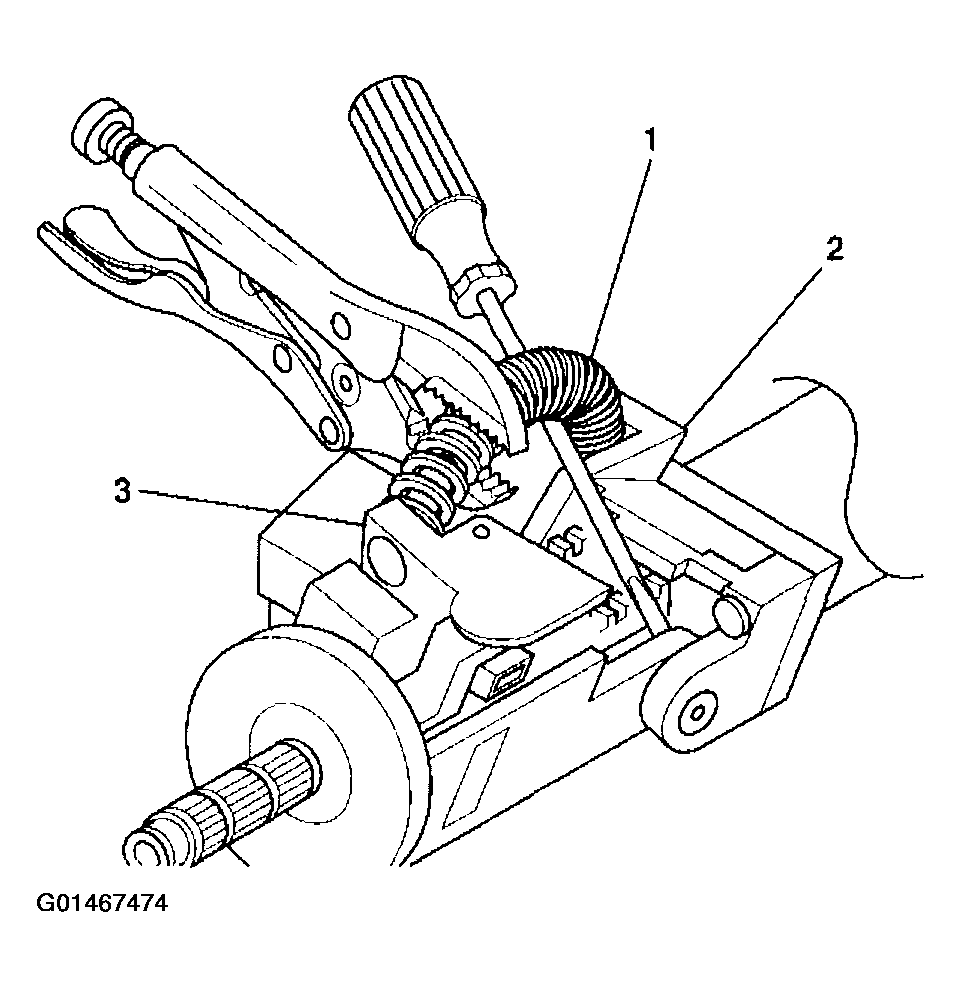

Fig 2: Removing Tilt Spring From Steering Column Support Assembly & Steering Column Tilt Head Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the spring guide (1) from the tilt spring (2).

Fig 3: Removing Spring Guide From Tilt Spring
Courtesy of GENERAL MOTORS CORP.
