Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SIR CAUTION in Cautions and Notices.

Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
Remove the inflator module. Refer to INFLATABLE RESTRAINT STEERING WHEEL MODULE REPLACEMENT in SIR.
Remove the horn plunger from the steering column by pressing inward to the stop and rotating the horn plunger 90 degrees.

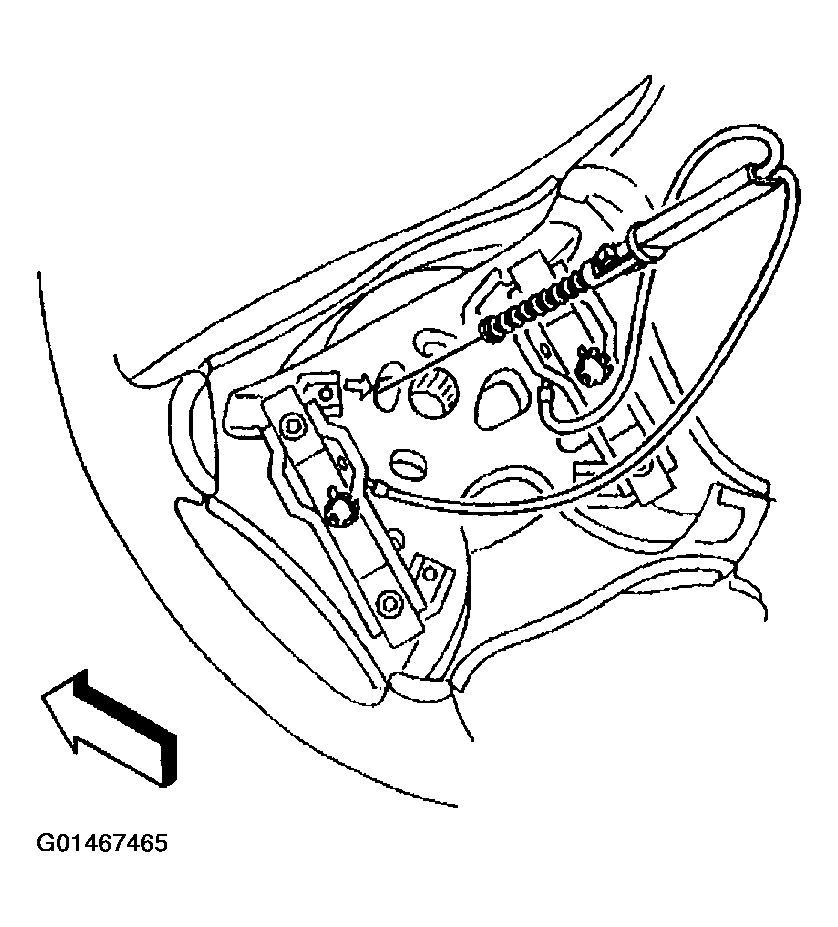

Fig 1: Removing Horn Plunger From Steering Column
Courtesy of GENERAL MOTORS CORP.
On vehicles with redundant steering wheel controls, disconnect the steering wheel electrical connector.

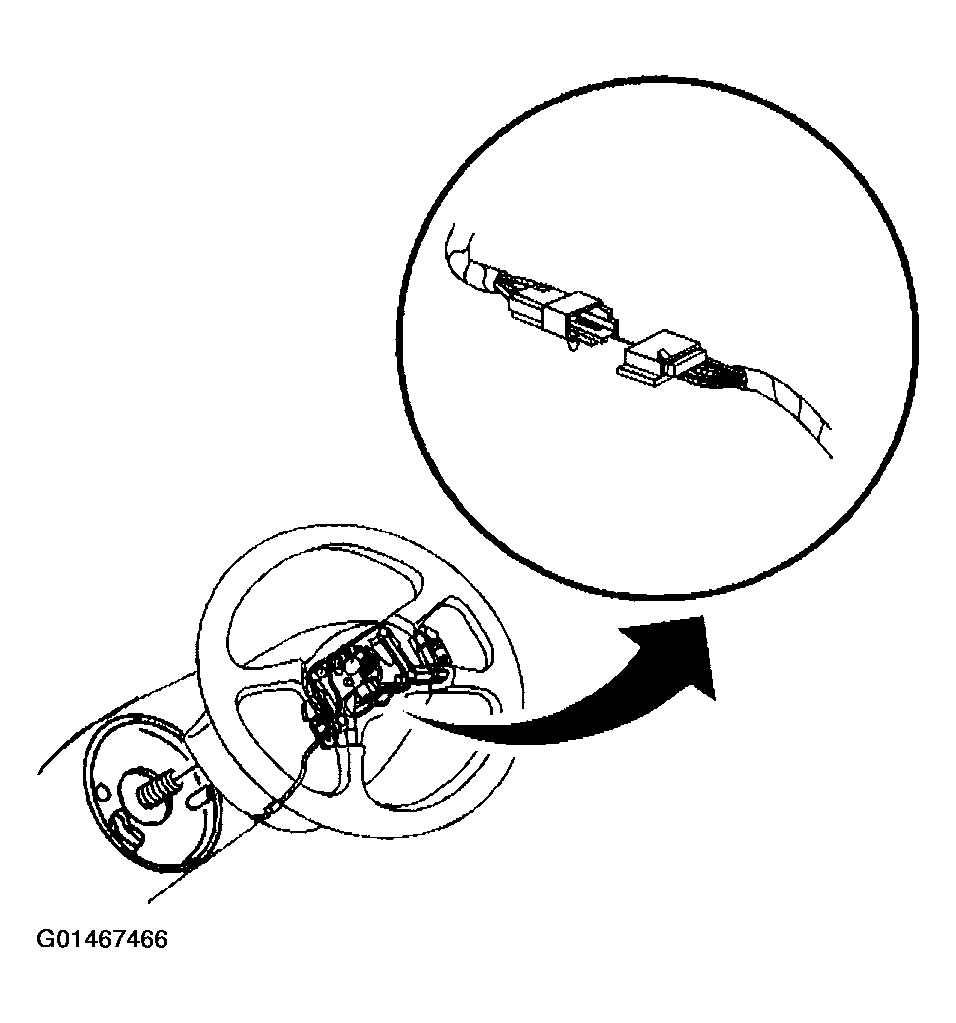

Fig 2: Disconnecting Steering Wheel Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the nut that retains the steering wheel to the steering shaft.
Mark the steering wheel to the steering shaft.
This will ensure proper alignment during installation.

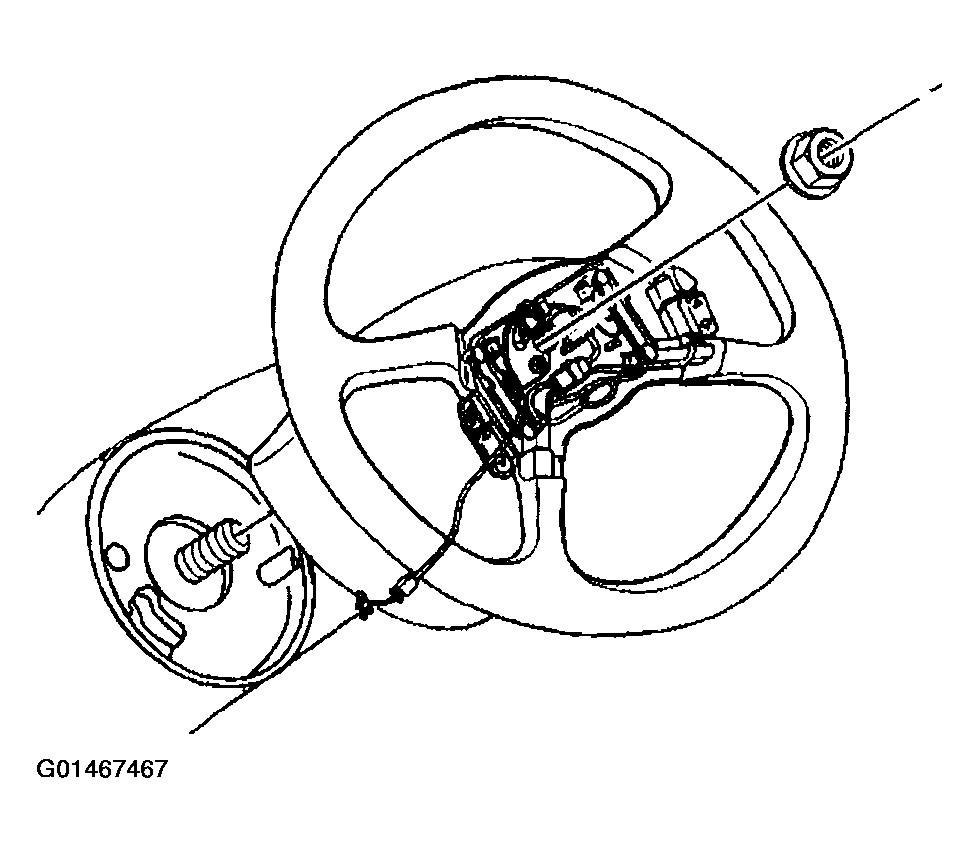

Fig 3: Removing Nut That Retains Steering Wheel To Steering Shaft
Courtesy of GENERAL MOTORS CORP.

NOTE: When removing the steering wheel, use only the specified steering wheel puller. Do not hammer on the end of the steering column shaft. Hammering could loosen the plastic injections which maintain the steering column rigidity.
Install J 1859-A to the steering wheel.
Remove the steering wheel using J 1859-A .
Remove the J 1859-A from the steering wheel.

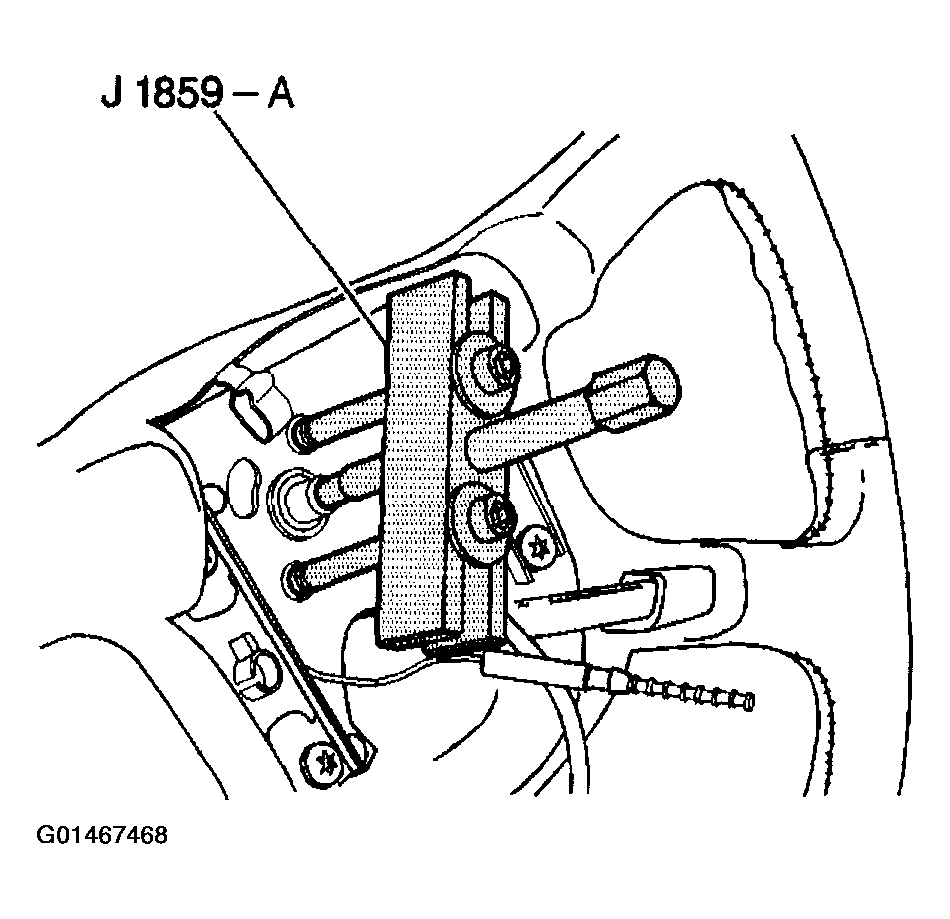

Fig 4: Removing Steering Wheel Using Steering Wheel Puller
Courtesy of GENERAL MOTORS CORP.
