Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SIR CAUTION in Cautions and Notices.

Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
Remove the steering wheel from the column. Refer to STEERING WHEEL REPLACEMENT .
Remove the tilt lever from the lower trim cover. Refer to TILT LEVER REPLACEMENT .
Important: You must check for 2 pan head tapping screws (1,2) in the lower trim cover before removal.
If necessary, remove the 2 pan head tapping screws (1,2) from the lower trim cover (3). Remove the lower trim cover (3).
If screws are not present in the lower trim cover, proceed to the next step.

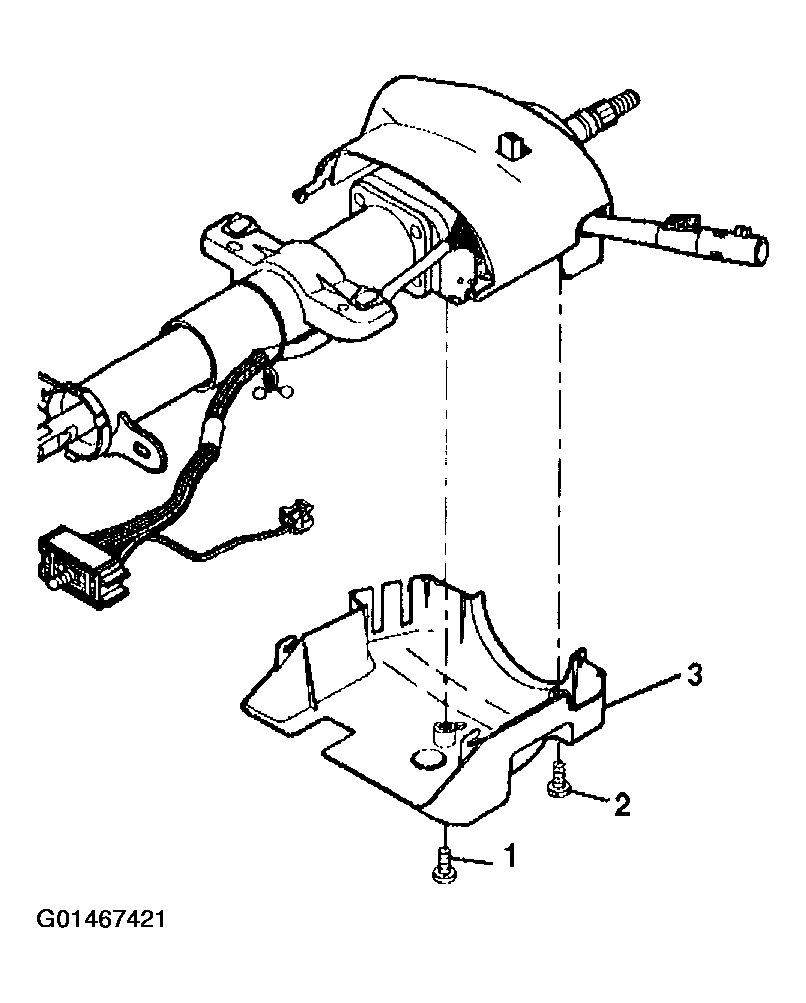

Fig 1: Lower Trim Cover
Courtesy of GENERAL MOTORS CORP.
Gently unsnap the lower trim cover from the upper trim cover.

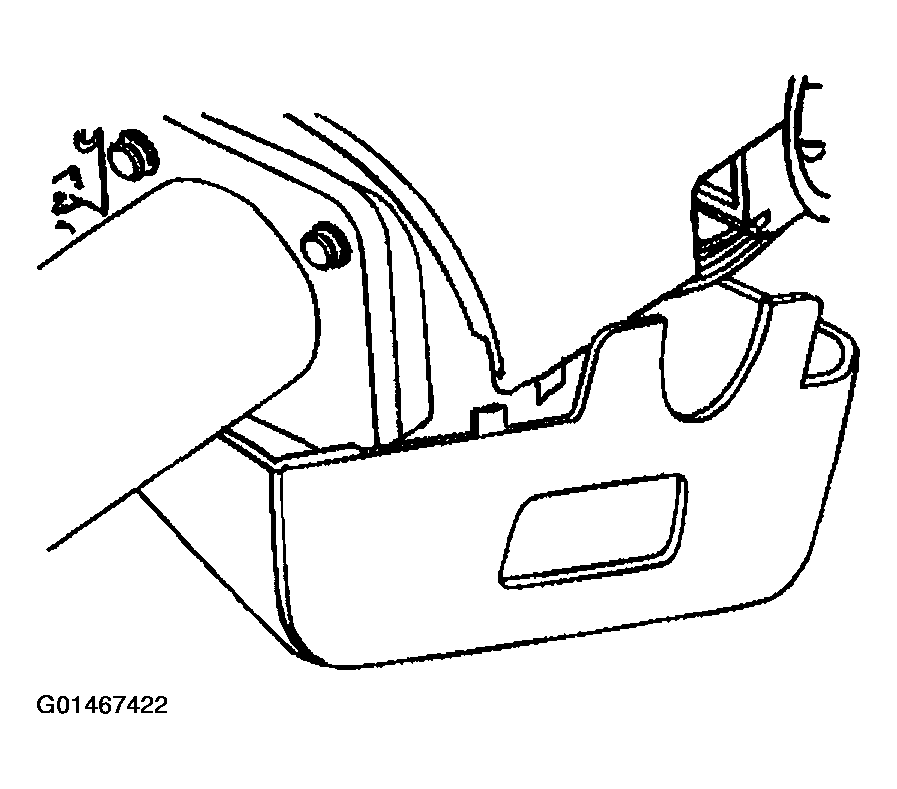

Fig 2: Gently Removing Lower Trim Cover From Upper Trim Cover
Courtesy of GENERAL MOTORS CORP.

Important: You must check for 2 pan head tapping screws (1,2) in the lower trim cover (3) before removal.
If necessary, remove 1 TORX® head screw (1) from the upper trim cover (2).
If a screw is not present, remove the upper trim cover (2).

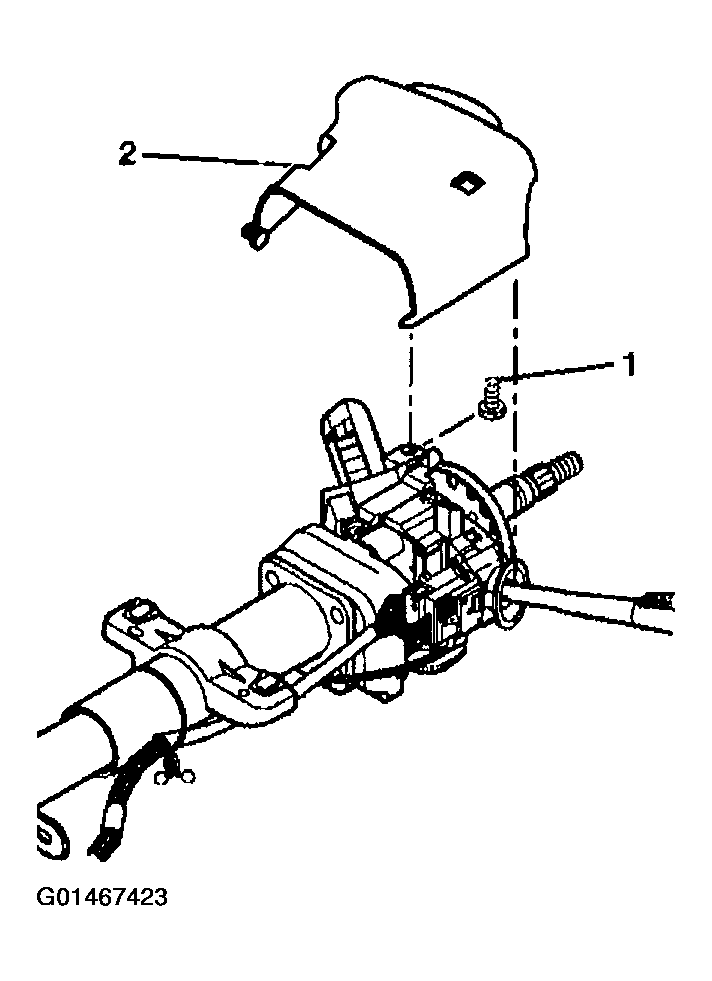

Fig 3: Upper Trim Cover
Courtesy of GENERAL MOTORS CORP.
