Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the shift lever seal away from the upper steering column trim cover.
  2. Remove the screw (2) that retains the shift lever to the steering column.
  3. Remove the shift lever (1) from the steering column.

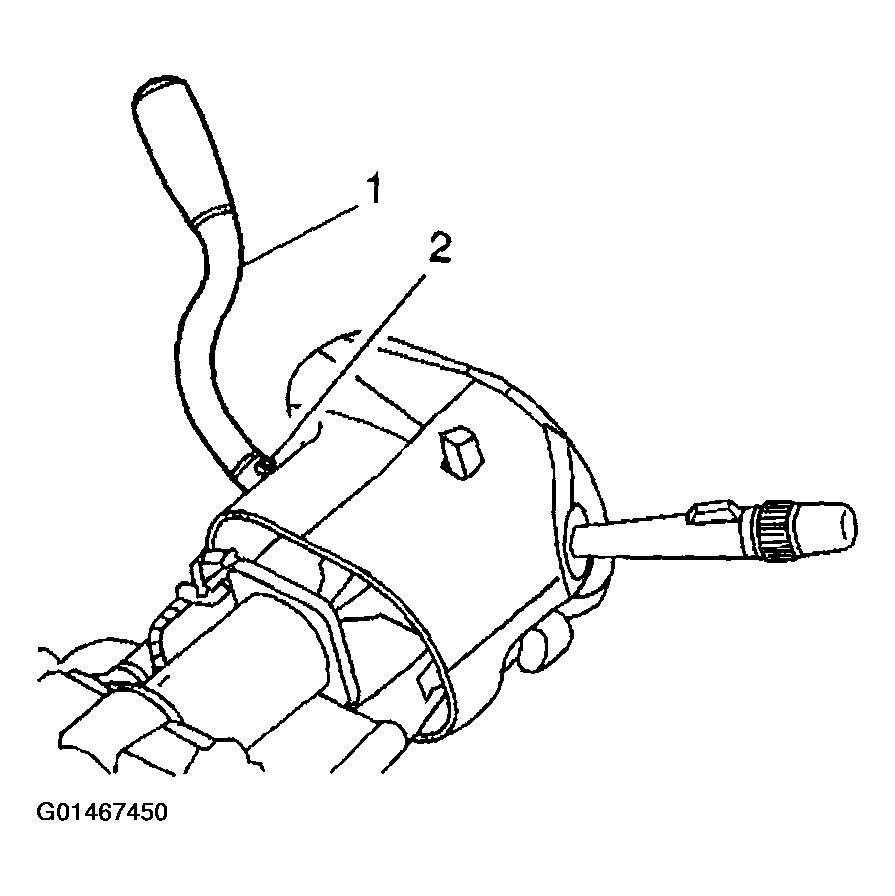

    Fig 1: Removing Shift Lever From Steering Column
    G01467450Courtesy of GENERAL MOTORS CORP.
