Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift lever (1) to the steering column.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screw (2) that retains the shift lever to the steering column.

    Tighten

    1. Tighten the screw to 22 N.m (16 lb ft).
  3. Install the shift lever seal to the upper steering column trim cover.

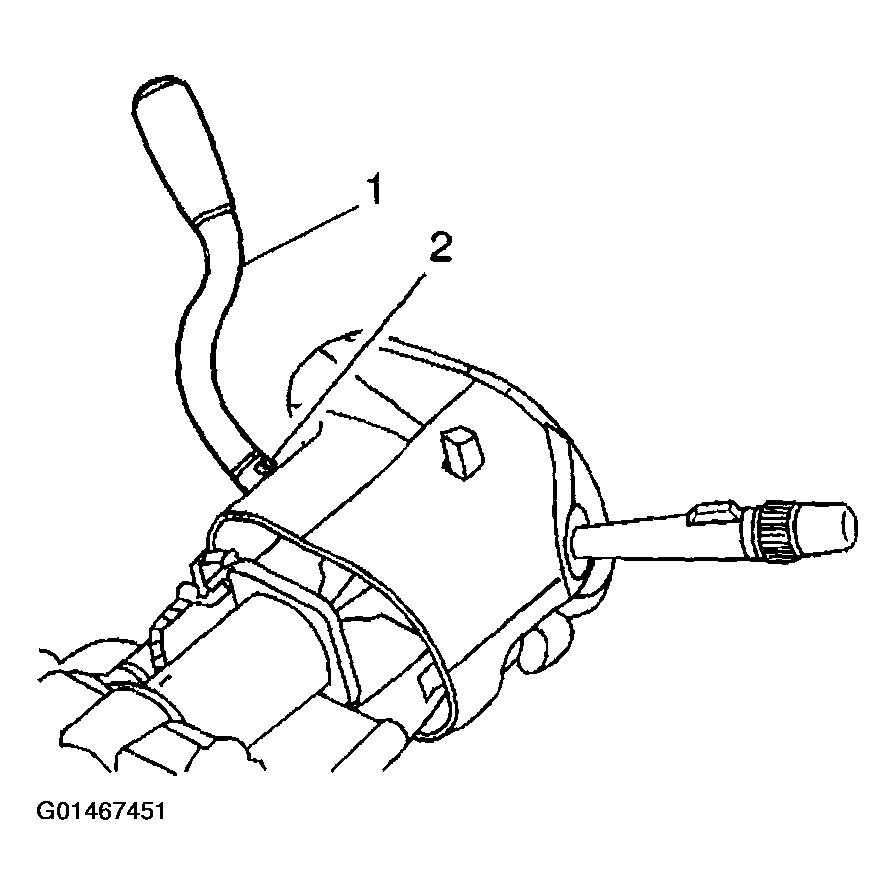

    Fig 1: Installing Shift Lever To Steering Column
    G01467451Courtesy of GENERAL MOTORS CORP.
