Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the intermediate shaft seal to the vehicle.
  2. Install the steering column. Refer to STEERING COLUMN REPLACEMENT .

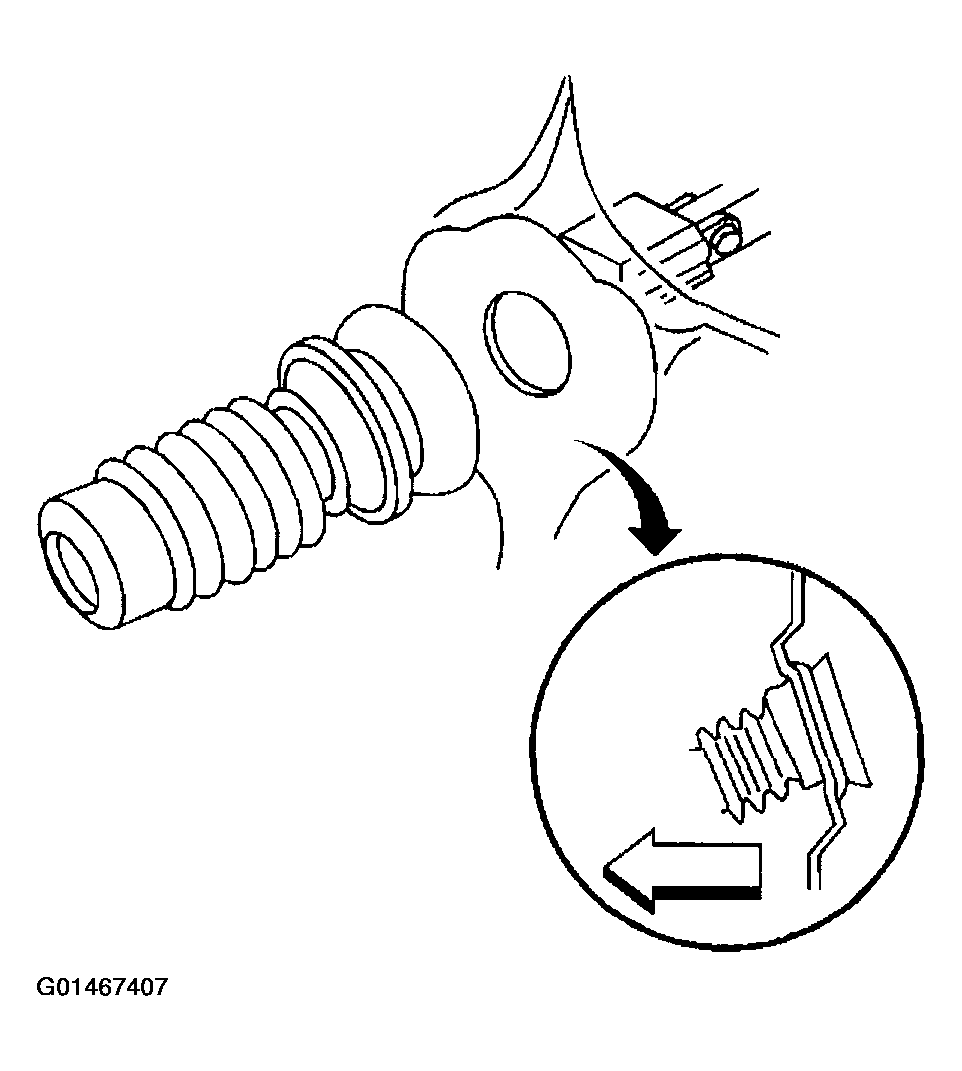

Fig 1: Installing Intermediate Shaft Seal To Vehicle
G01467407Courtesy of GENERAL MOTORS CORP.
