Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .

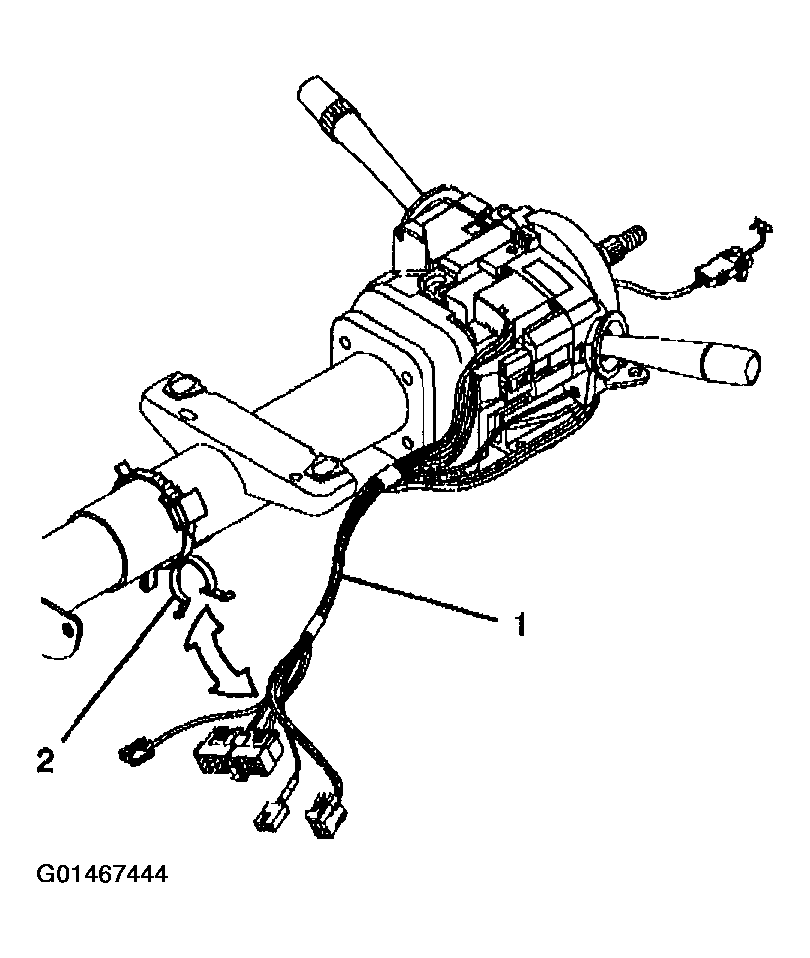

    Fig 1: Turn Signal Switch
    G01467444Courtesy of GENERAL MOTORS CORP.

    Important:  The abrasion sleeve located on the steering column wire harness assembly must be reinstalled. Make note of what connector is coming out of the abrasion sleeve for installation purposes.

  3. Remove the wire harness assembly (1) from the wire harness strap (2).
  4. Disconnect the turn signal and multifunction switch assembly connector from the SIR system coil connector.
  5. Slide the 2 connectors (2) of the turn signal and multifunction switch assembly out of the bulkhead connector (1).

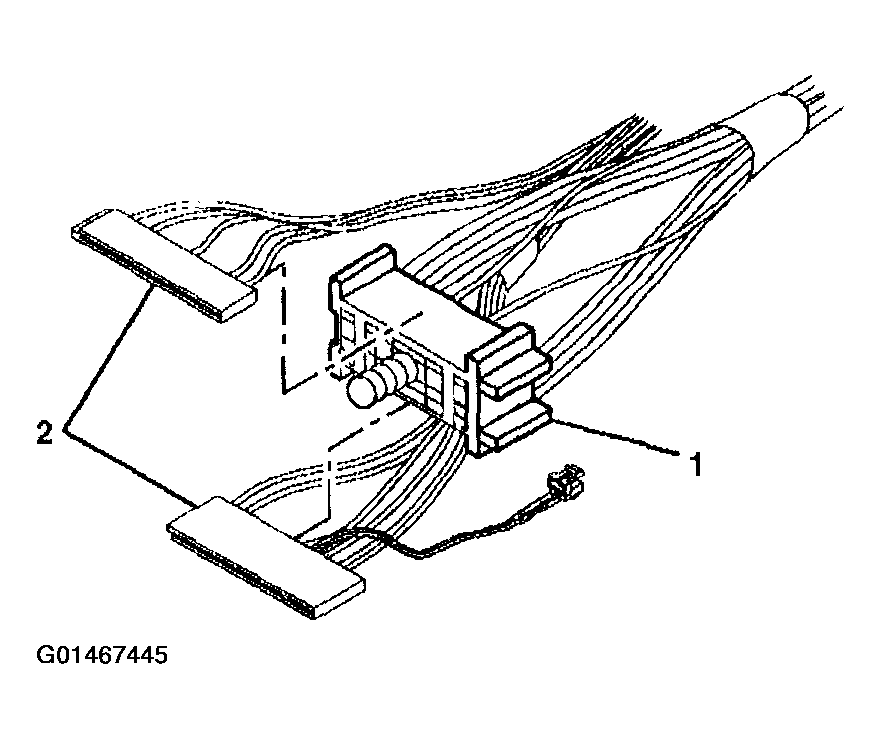

    Fig 2: Sliding Connectors Of Turn Signal & Multifunction Switch Assembly Out Of Bulkhead Connector
    G01467445Courtesy of GENERAL MOTORS CORP.
  6. Remove the 2 pan head tapping screws (1) and (3) from the turn signal and multifunction switch assembly (2).
  7. Remove the turn signal and multifunction switch assembly (2) from the steering column tilt head assembly.

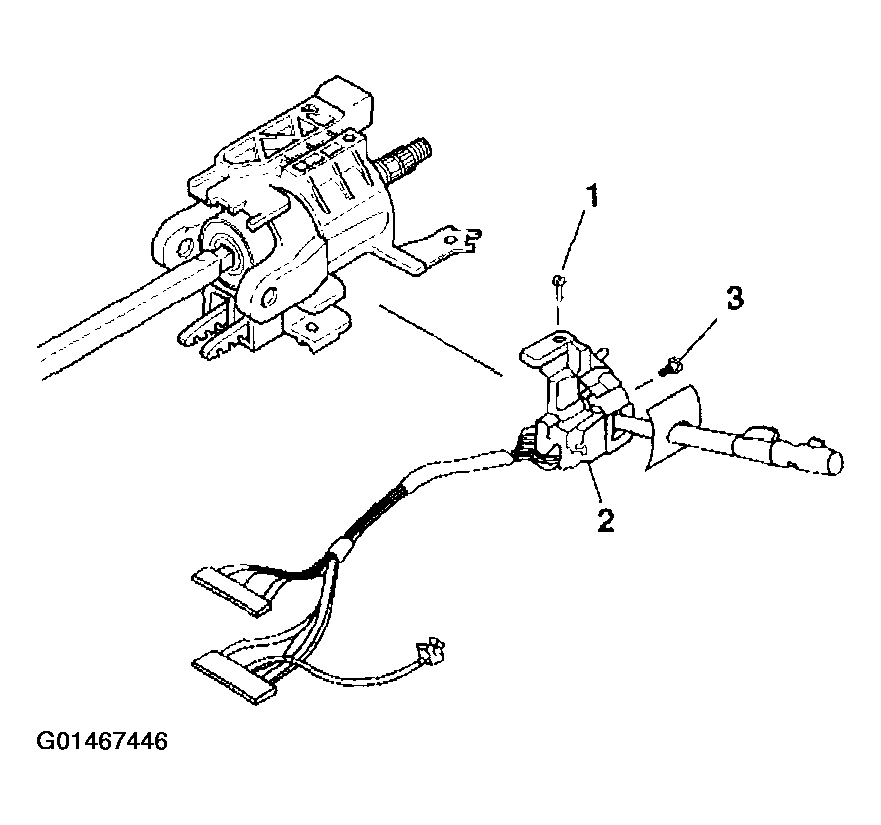

    Fig 3: Removing Turn Signal & Multifunction Switch Assembly From Steering Column Tilt Head Assembly
    G01467446Courtesy of GENERAL MOTORS CORP.
