Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SIR CAUTION in Cautions and Notices.

Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
Remove the shift lever assembly. Refer to SHIFT LEVER REPLACEMENT .
With a screwdriver carefully pry the automatic transmission shift lock control away from the steering column jacket.

Fig 1: Removing Automatic Transmission Shift Lock Control Away From Steering Column Jacket
Courtesy of GENERAL MOTORS CORP.
The lock cylinder should be in the OFF-LOCK position.
Important: Do not remove the tape on the park lock cable. If so, the linear shift assembly must be replaced.

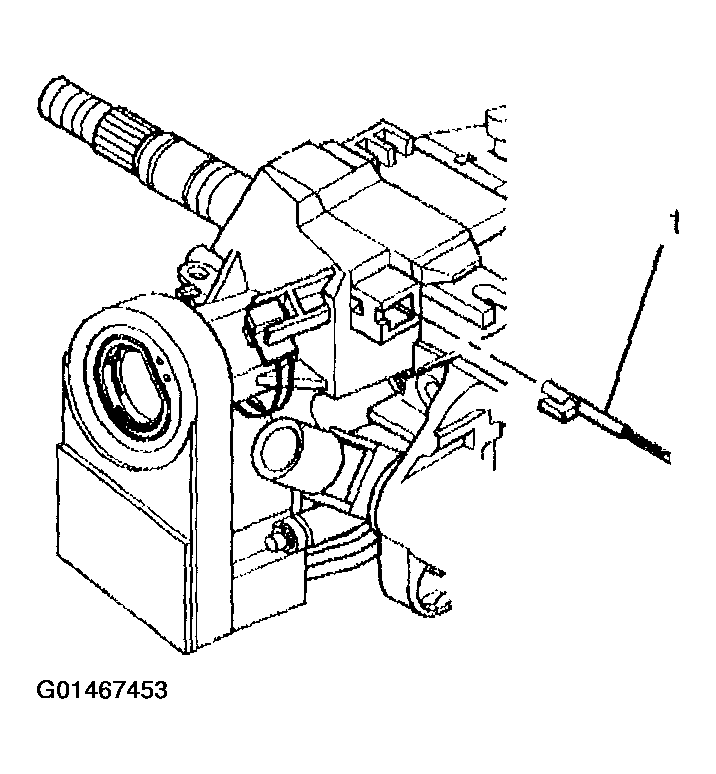

Insert a small screwdriver into the slot on the ignition lock cylinder case and push against the locking tab to remove the park lock cable assembly (1).

Fig 2: Park Lock Cable Assembly
Courtesy of GENERAL MOTORS CORP.

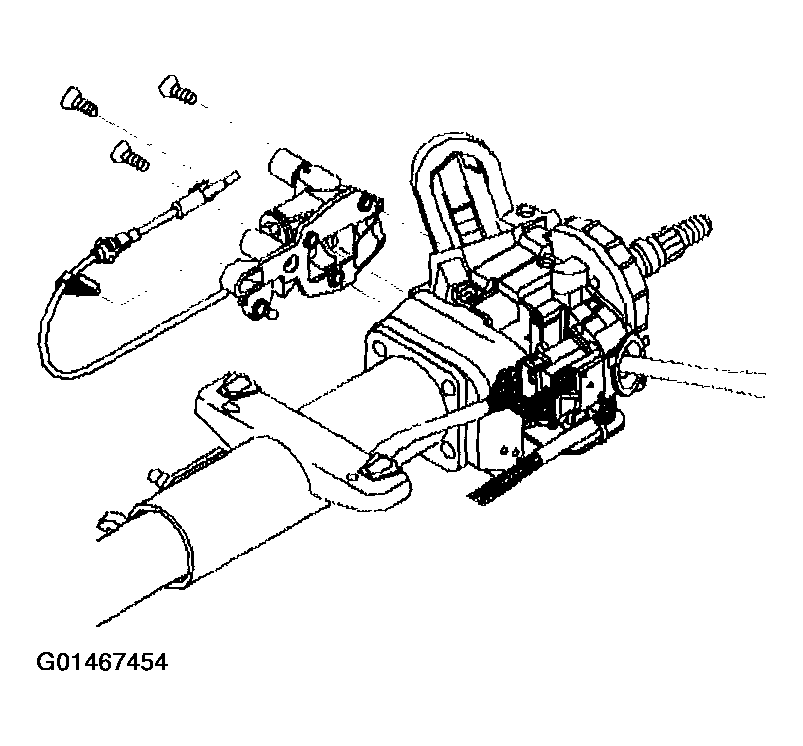

Remove the 3 flat head 6 lobed socket tap screws from the linear shift assembly.
Remove the linear shift assembly.

Fig 3: Removing Linear Shift Assembly
Courtesy of GENERAL MOTORS CORP.
