Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the ignition lock cylinder case (1) with the steering column tilt head assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Screw the 3 TORX® screws (2) into the ignition lock cylinder case (1).

    Tighten

    1. Tighten the screws to 7 N.m (62 lb in).

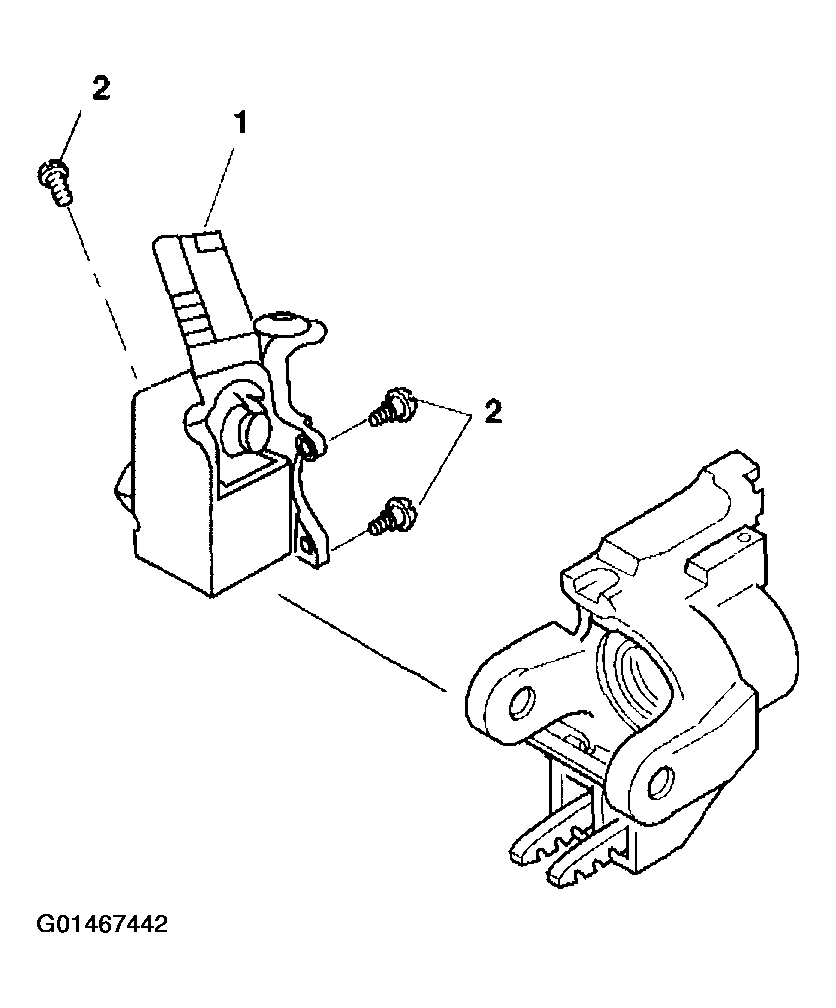

    Fig 1: Installing Ignition Lock Cylinder Case Into Steering Column Tilt Head Assembly
    G01467442Courtesy of GENERAL MOTORS CORP.
  3. Place steering column lock cylinder set into the OFF position.
  4. Place the shift lever clevis into the PARK position.
  5. Press the locking tab on the end of the park lock cable assembly (1) into the slot in the ignition lock cylinder case.
  6. Install the ignition switch. Refer to IGNITION SWITCH REPLACEMENT .

    Important:  The abrasion sleeve must be installed back onto the steering column wire harness assembly. The ignition lock cylinder case wires and connector must be hanging out of the middle of the abrasion sleeve.

  7. Install the steering column tilt head assembly. Refer to Tilt Spring Replacement .
  8. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

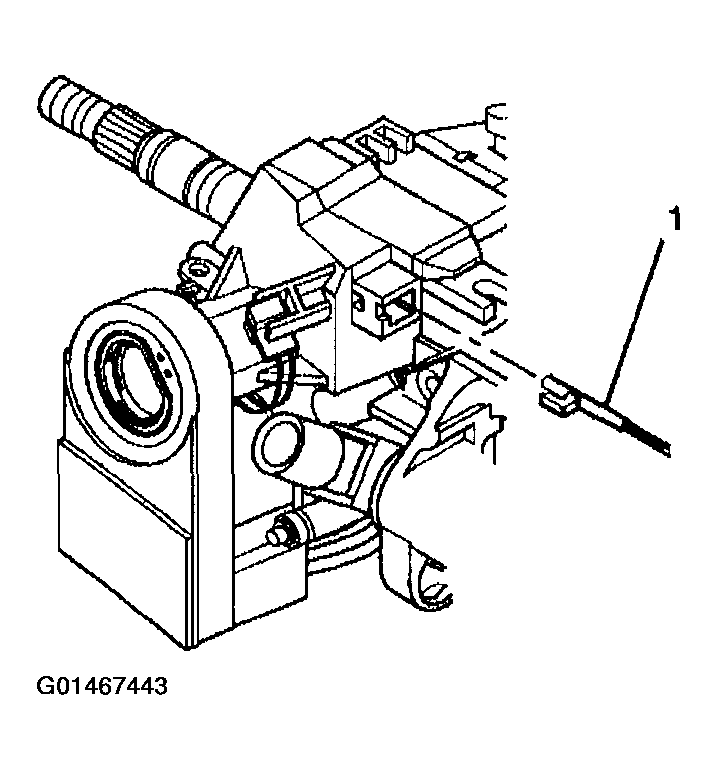

    Fig 2: Installing Locking Tab Into Slot In Ignition Lock Cylinder Case
    G01467443Courtesy of GENERAL MOTORS CORP.
