Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  2. Remove the inflator module. Refer to INFLATABLE RESTRAINT STEERING WHEEL MODULE REPLACEMENT in SIR.
  3. Remove the horn plunger from the steering column by pressing inward to the stop and rotating the horn plunger 90 degrees.

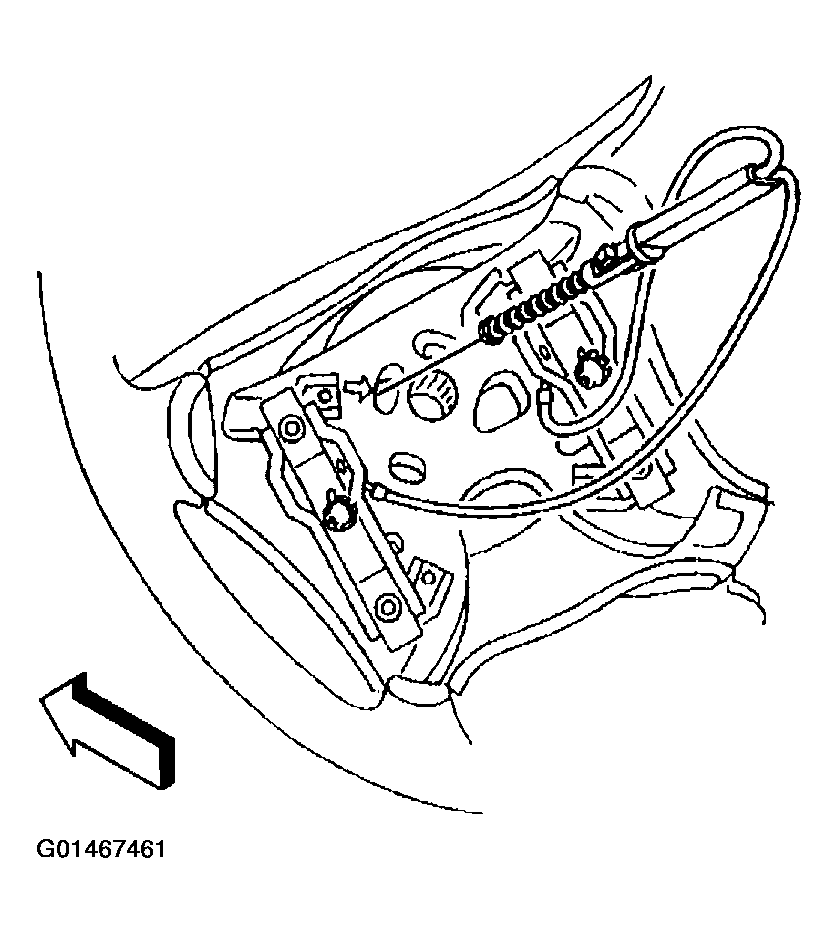

    Fig 1: Removing Horn Plunger From Steering Column
    G01467461Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws which retain the horn contact plate to the steering wheel.
  5. Remove the horn plunger from the steering wheel.

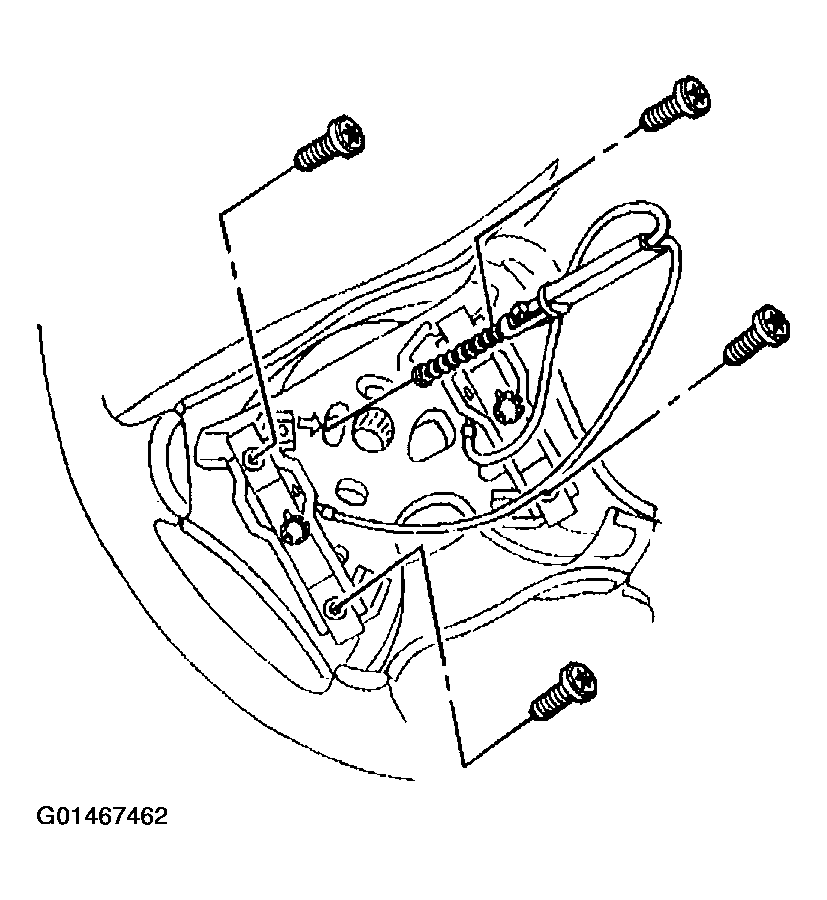

    Fig 2: Removing Screws Which Retain Horn Contact Plate To Steering Wheel
    G01467462Courtesy of GENERAL MOTORS CORP.
