Steering Column Disassembled View (Column Shift and Floor Shift Standard)

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

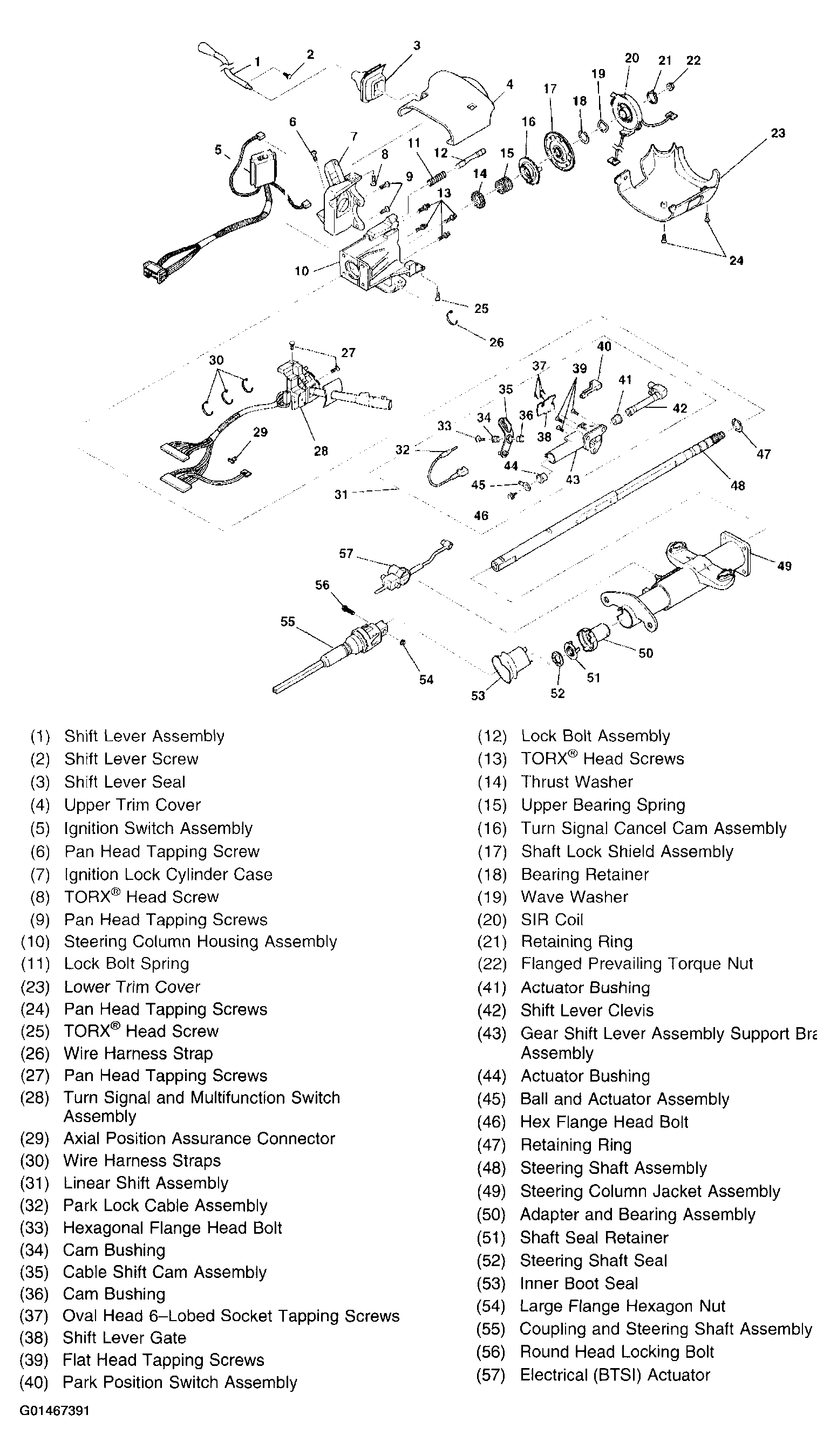

Fig 1: Standard Column Shift

Courtesy of GENERAL MOTORS CORP.

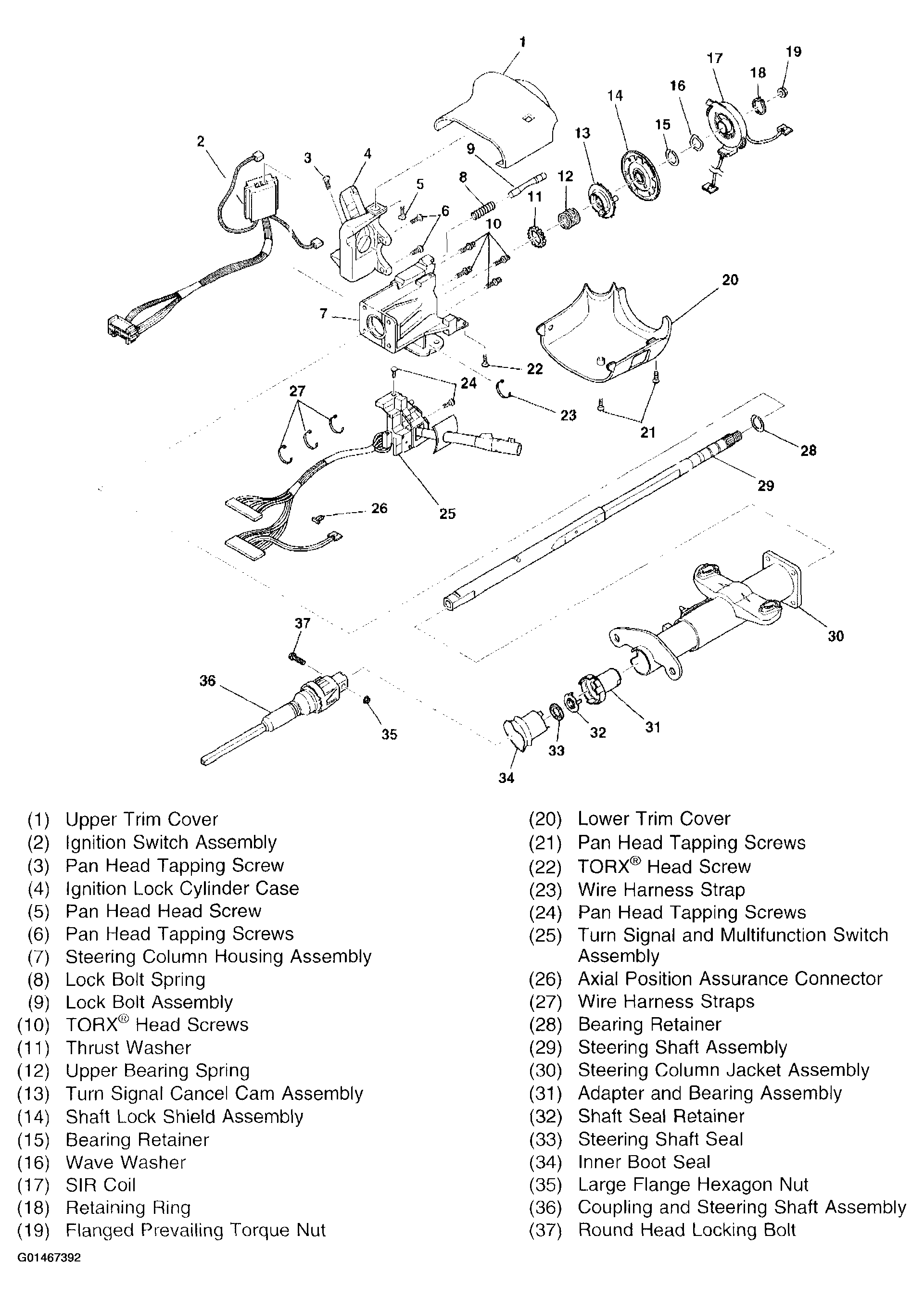

Fig 2: Standard Floor Shift Column

Courtesy of GENERAL MOTORS CORP.
