Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle with safety stands. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the steering linkage shield bolts and the washers.
  3. Remove the steering linkage shield.

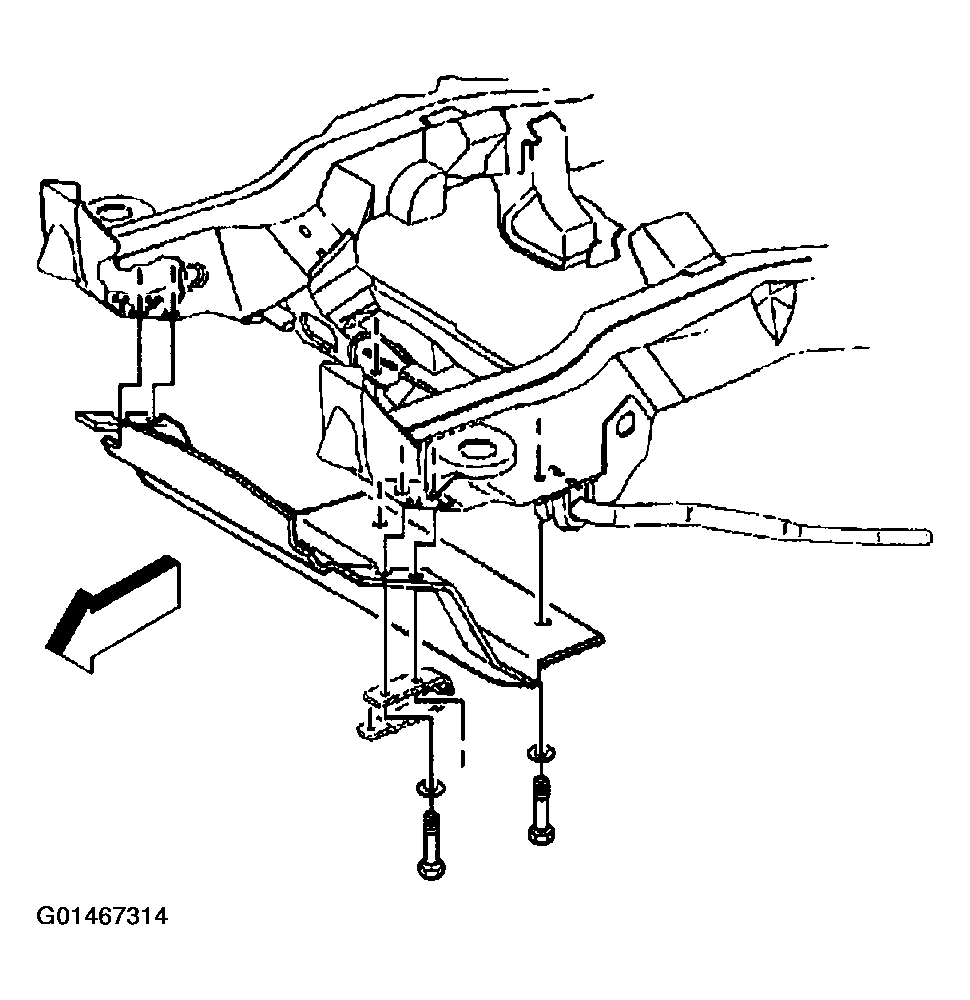

    Fig 1: Steering Linkage Shield Bolts & Washers
    G01467314Courtesy of GENERAL MOTORS CORP.
