Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering linkage shield.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the steering linkage shield bolts and the washers.

    Tighten

    Tighten the steering linkage shield bolts to 32 N.m (24 lb ft).

  3. Lower the vehicle.

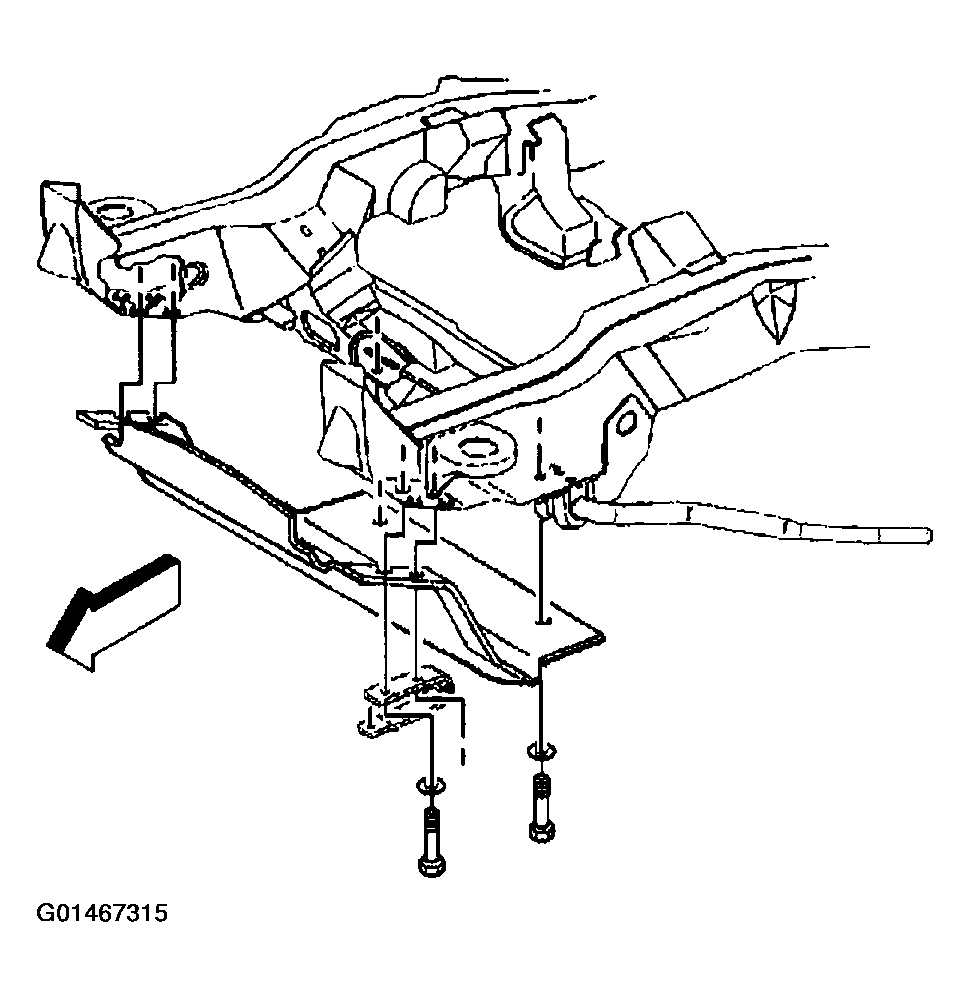

    Fig 1: Steering Linkage Shield Bolts & Washers
    G01467315Courtesy of GENERAL MOTORS CORP.
