Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle with safety stands. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

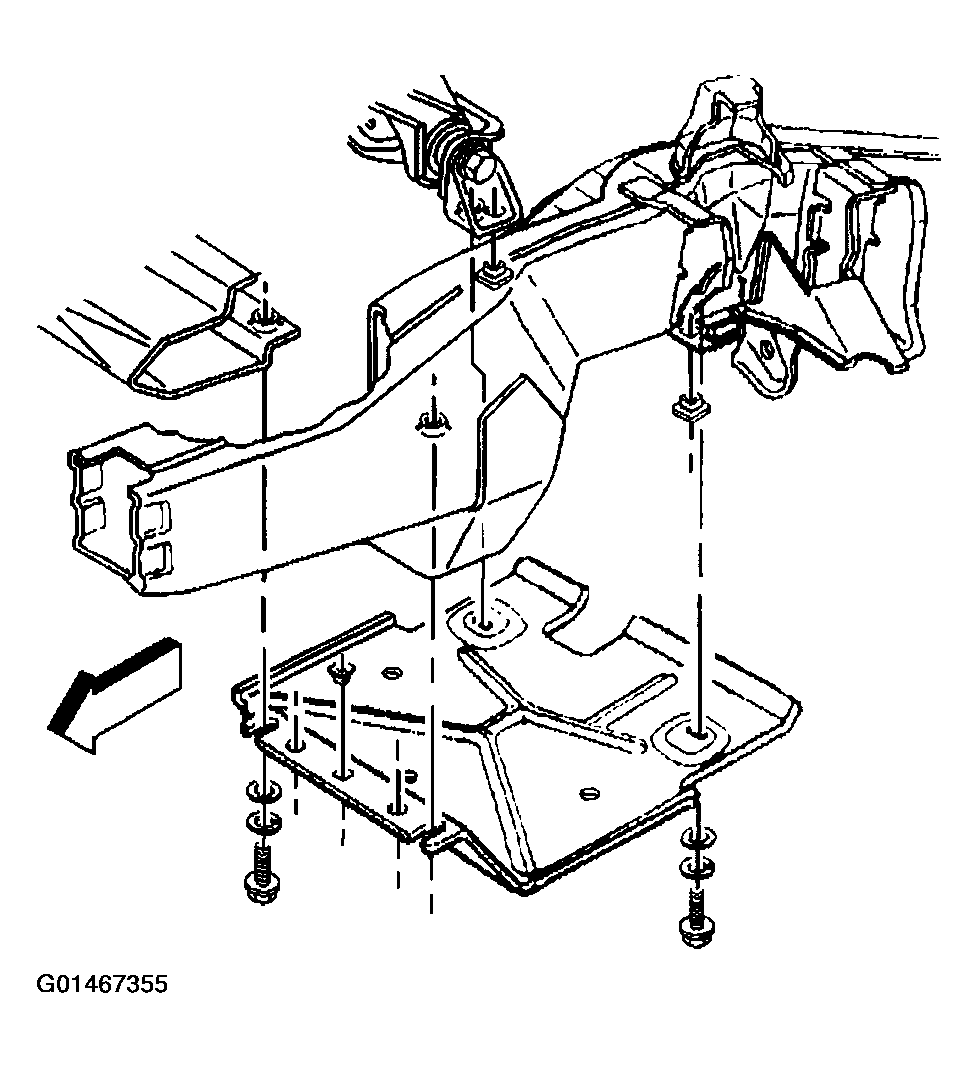

    Fig 1: Differential Carrier Shield Mounting Bolts
    G01467355Courtesy of GENERAL MOTORS CORP.
  2. Remove the steering linkage shield. Refer to STEERING LINKAGE SHIELD REPLACEMENT .
  3. Remove the differential carrier shield mounting bolts.
  4. Remove the differential carrier shield.

    Important:  Use the proper tool in order to separate all ball joints.

  5. Remove inner tie rods ball stud nuts.

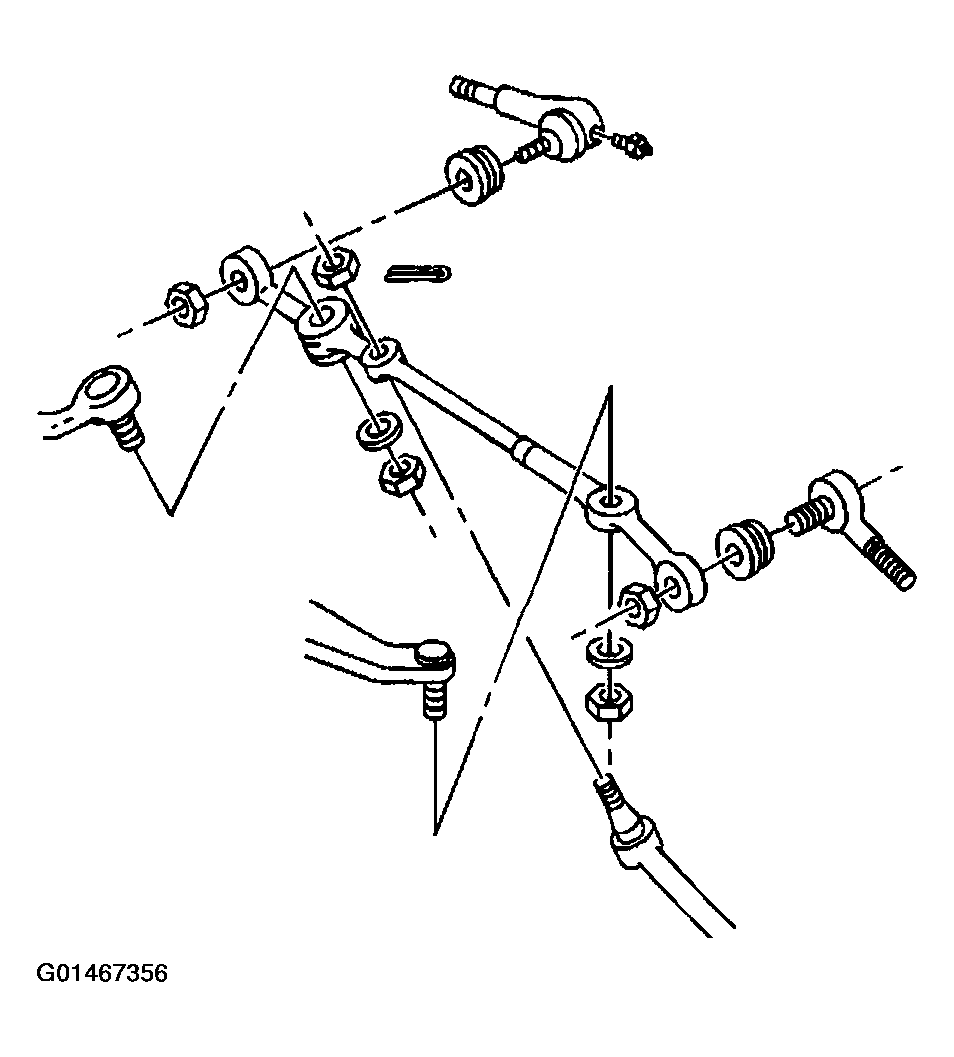

    Fig 2: Inner Tie Rods Ball Stud Nuts
    G01467356Courtesy of GENERAL MOTORS CORP.
  6. Remove the inner tie rods ball studs from the relay rod using J 6627-A.

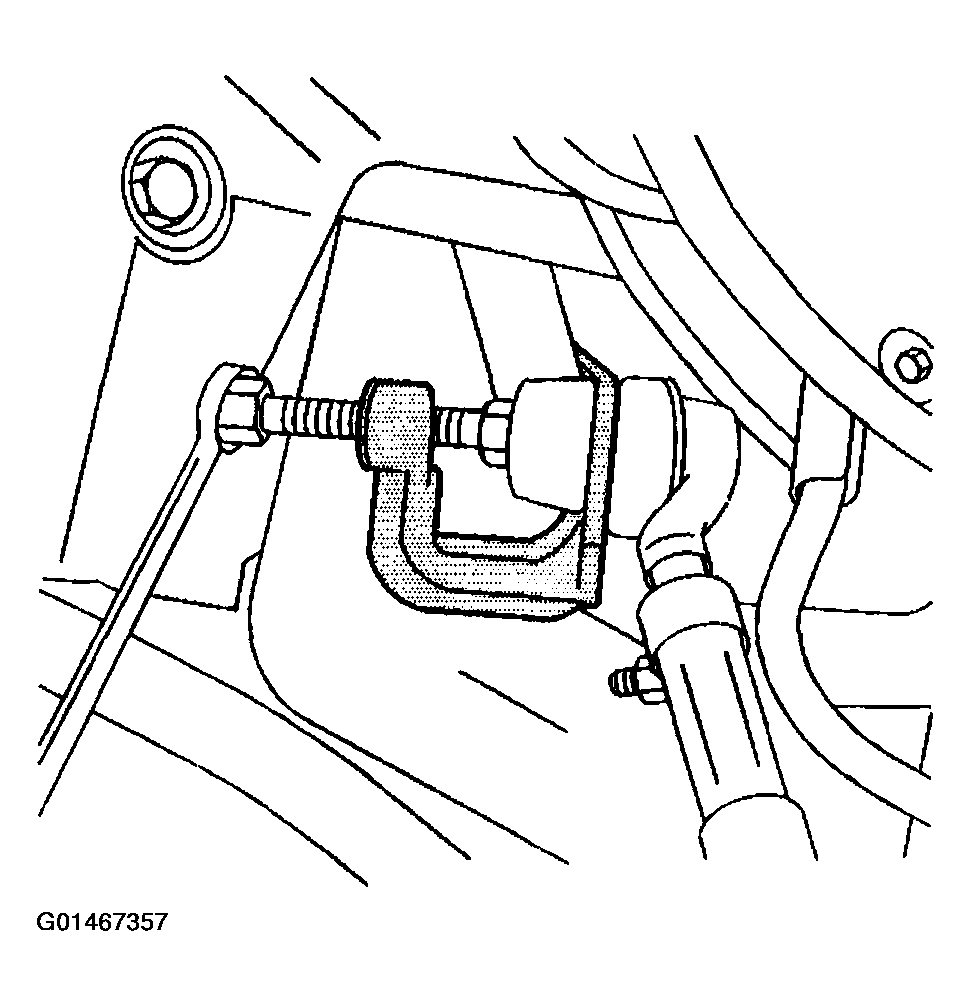

    Fig 3: Removing Inner Tie Rods Ball Studs From Relay Rod
    G01467357Courtesy of GENERAL MOTORS CORP.
  7. Remove the steering shock absorber ball stud nut at the relay rod.
    Fig 4: Removing Steering Shock Absorber Ball Stud Nut At Relay Rod
    G01467358Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the steering shock absorber from the relay rod using J 24319-B  .

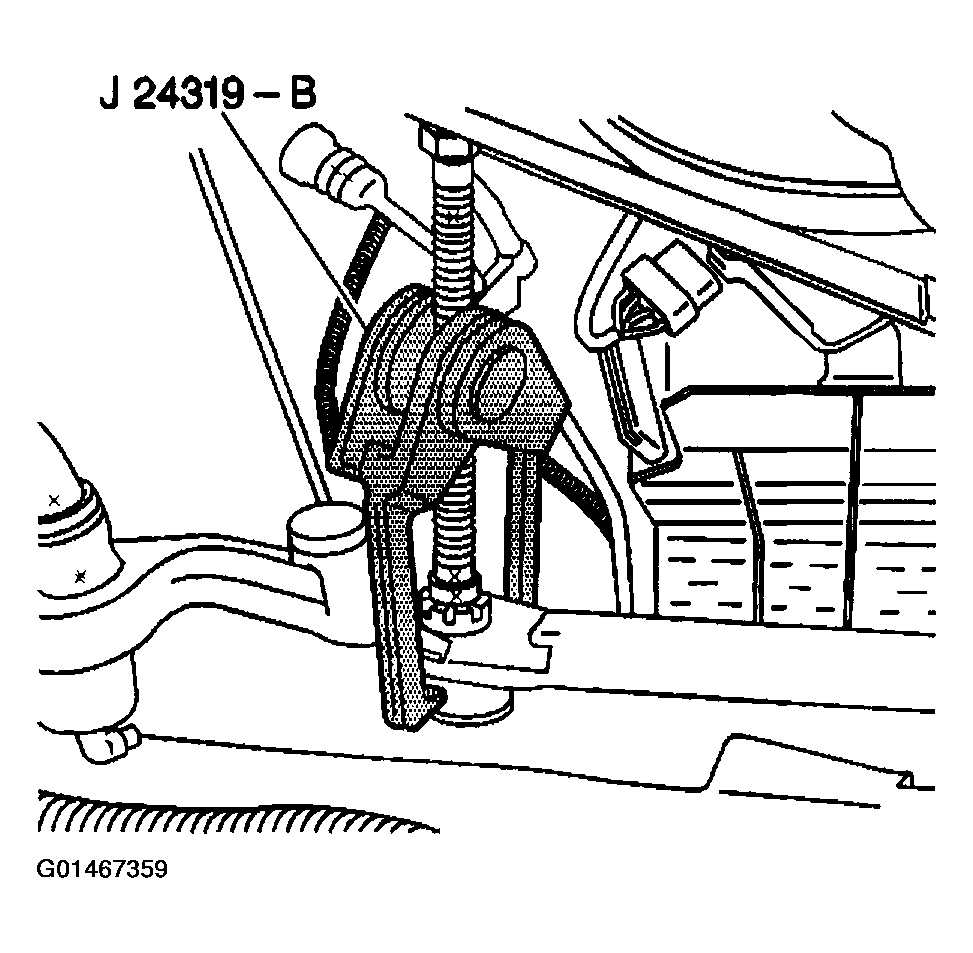

    Fig 5: Disconnecting Steering Shock Absorber From Relay Rod
    G01467359Courtesy of GENERAL MOTORS CORP.
  9. Remove the pitman arm ball stud nut at the relay rod.

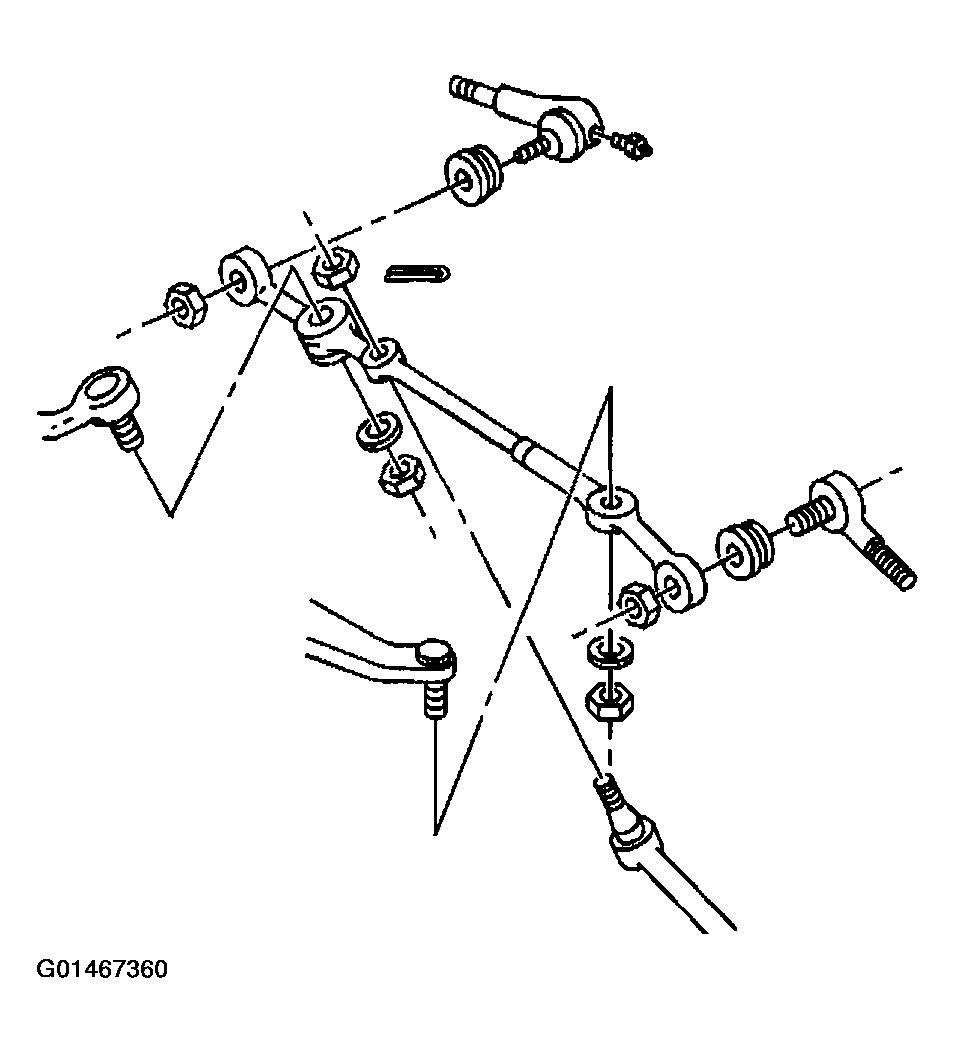

    Fig 6: Removing Pitman Arm Ball Stud Nut At Relay Rod
    G01467360Courtesy of GENERAL MOTORS CORP.
  10. Disconnect the pitman arm ball stud from the relay rod using J24319-B.

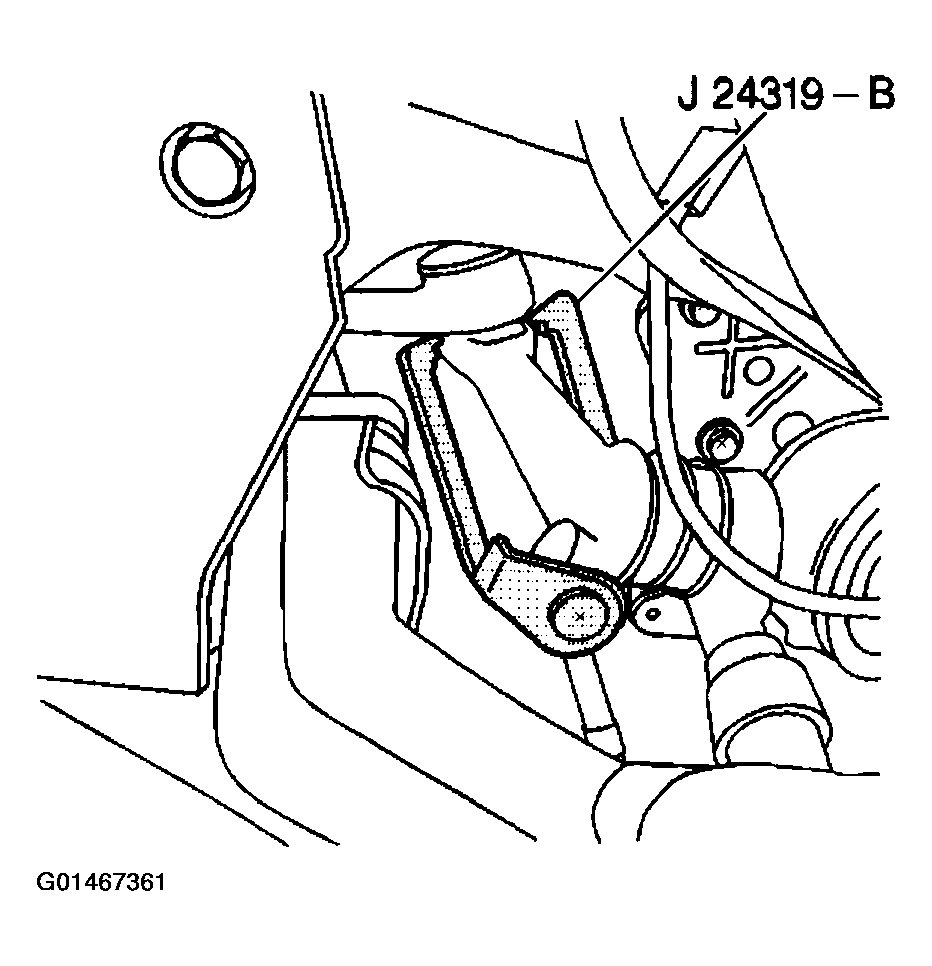

    Fig 7: Disconnecting Pitman Arm Ball Stud From Relay Rod
    G01467361Courtesy of GENERAL MOTORS CORP.
  11. Remove the idler arm ball stud nut at the relay rod.
    Fig 8: Removing Idler Arm Ball Stud Nut At Relay Rod
    G01467362Courtesy of GENERAL MOTORS CORP.
  12. Disconnect the idler arm ball stud from the relay rod using J24319-B.
  13. Remove the relay rod.
  14. Inspect the following components:
    • The threads on the tie rod for damage
    • The threads on the tie rod end for damage
    • The ball stud threads for damage
    • The ball stud seals for excessive wear
  15. Clean the threads on the ball stud and ball stud nut.

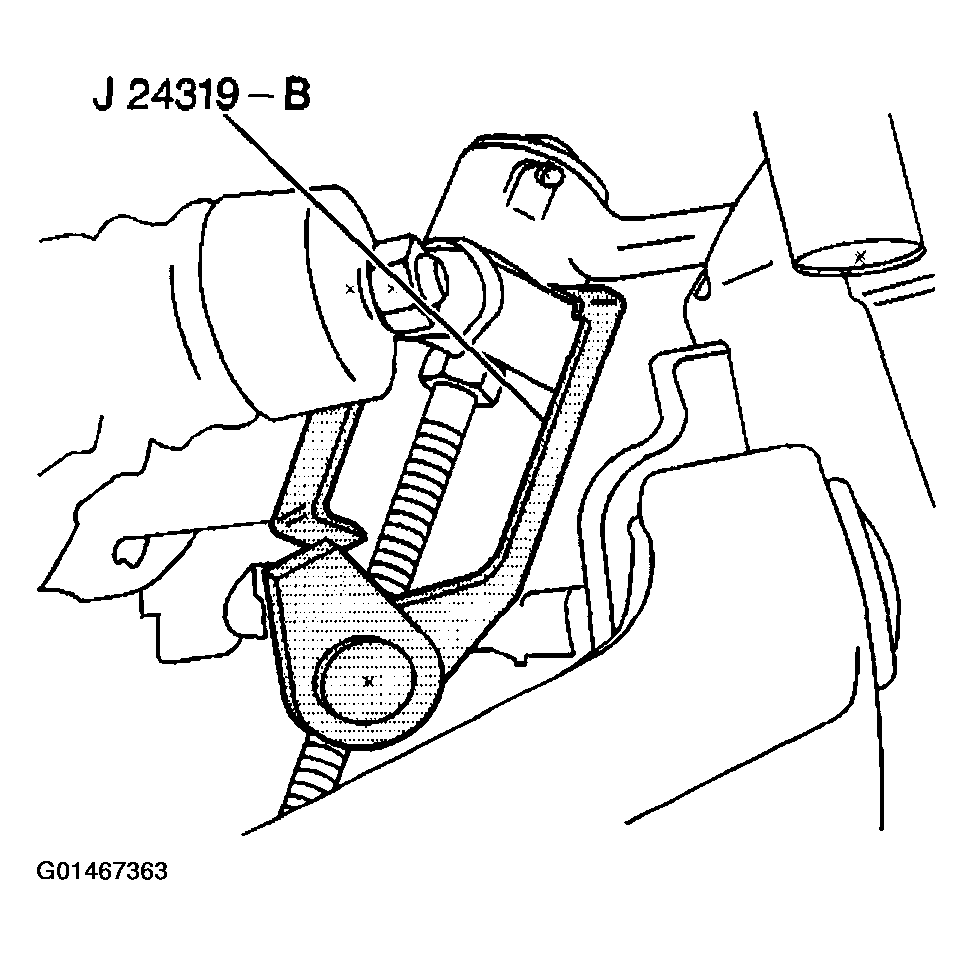

    Fig 9: Disconnecting Idler Arm Ball Stud From Relay Rod
    G01467363Courtesy of GENERAL MOTORS CORP.
