Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the idler arm ball stud to the relay rod. Ensure that the seal is on the stud.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Seat the taper using J 29193 or J 29194.
Tighten

Tighten J 29193 or J 29194 to 54 N.m (40 lb ft).
Remove J 29193 or J 29194 from the idler arm ball stud.
Install the new nut to the idler arm ball stud at the relay rod.
Tighten

Tighten the idler arm ball stud nut to 82 N.m (60 lb ft).

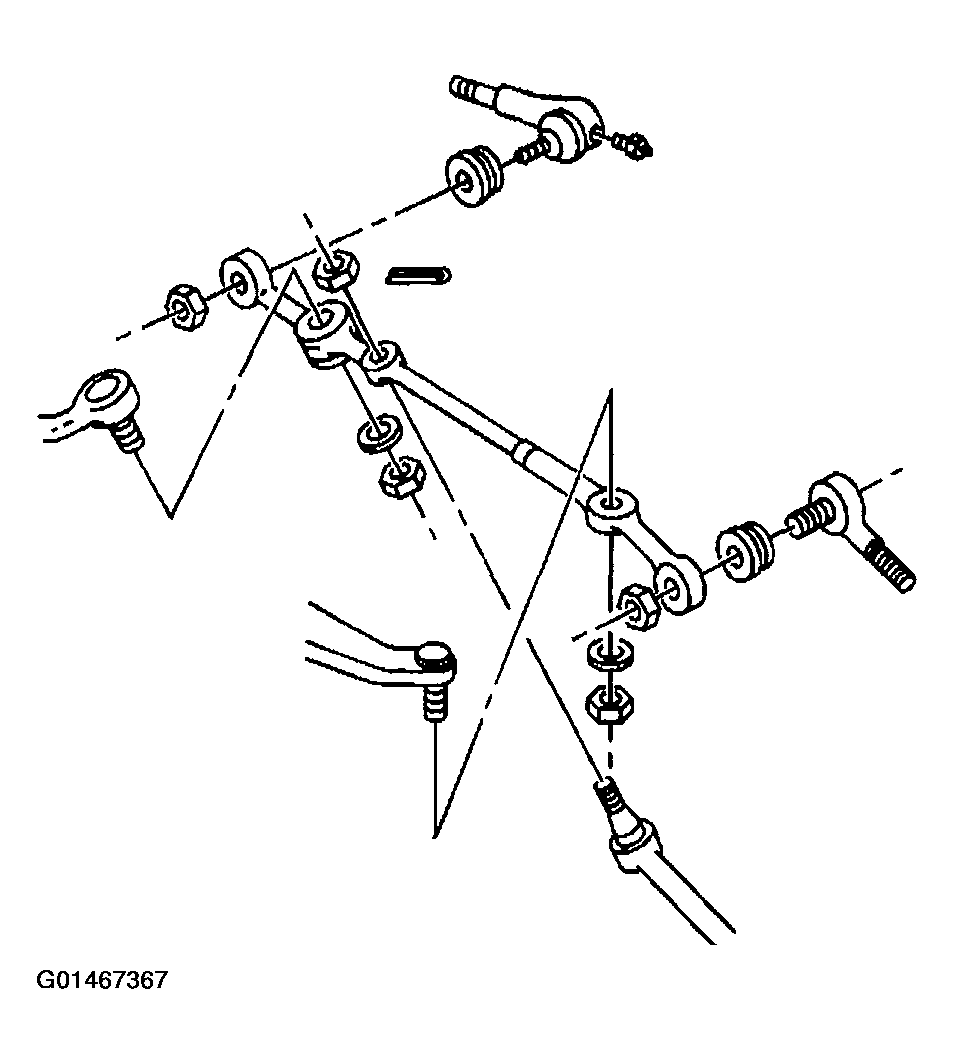

Fig 1: Installing Idler Arm Ball Stud To Relay Rod
Courtesy of GENERAL MOTORS CORP.
Install the relay rod ball stud to the pitman arm. Ensure that the seal is on the stud.
Seat the taper using J 29193 or J 29194.
Tighten

Tighten J29193 or J 29194 to 54 N.m (40 lb ft).
Remove J 29193 or J 29194 from the pitman arm ball stud.
Install the new nut to the pitman arm ball stud at the relay rod.
Tighten

Tighten the pitman arm ball stud nut to 83 N.m (61 lb ft).

Fig 2: Installing Relay Rod Ball Stud To Pitman Arm
Courtesy of GENERAL MOTORS CORP.
Connect the steering shock absorber to the relay rod.
Install the steering shock absorber ball stud nut at the relay rod.
Tighten

Tighten the steering shock absorber ball stud nut to 63 N.m (46 lb ft).

Fig 3: Connecting Steering Shock Absorber To Relay Rod
Courtesy of GENERAL MOTORS CORP.
Install the inner tie rod ball studs to the relay rod. Ensure the seal is on the stud.

Fig 4: Installing Inner Tie Rod Ball Studs To Relay Rod
Courtesy of GENERAL MOTORS CORP.
Seat the tapers using J 29193 or J 29194.
Tighten

Tighten J 29193 or J 29194 to 54 N.m (40 lb ft).
Remove J 29193 or J 29194 from inner tie rod ball stud.
Repeat steps 12 and 13 for the opposite side.
Install the new nuts to the inner tie rod ball studs at the relay rod.
Tighten

Tighten the inner tie rod ball stud nuts to 47 N.m (35 lb ft).

Fig 5: Tightening Inner Tie Rod Ball Stud Nuts
Courtesy of GENERAL MOTORS CORP.
Install the differential carrier shield.
Install the differential carrier shield mounting bolts.
Tighten

Tighten the differential carrier shield mounting bolts to 25 N.m (19 lb ft).
Install the steering linkage shield. Refer to STEERING LINKAGE SHIELD REPLACEMENT .
Lower the vehicle.
Adjust the front toe. Refer to FRONT TOE ADJUSTMENT in Wheel Alignment.

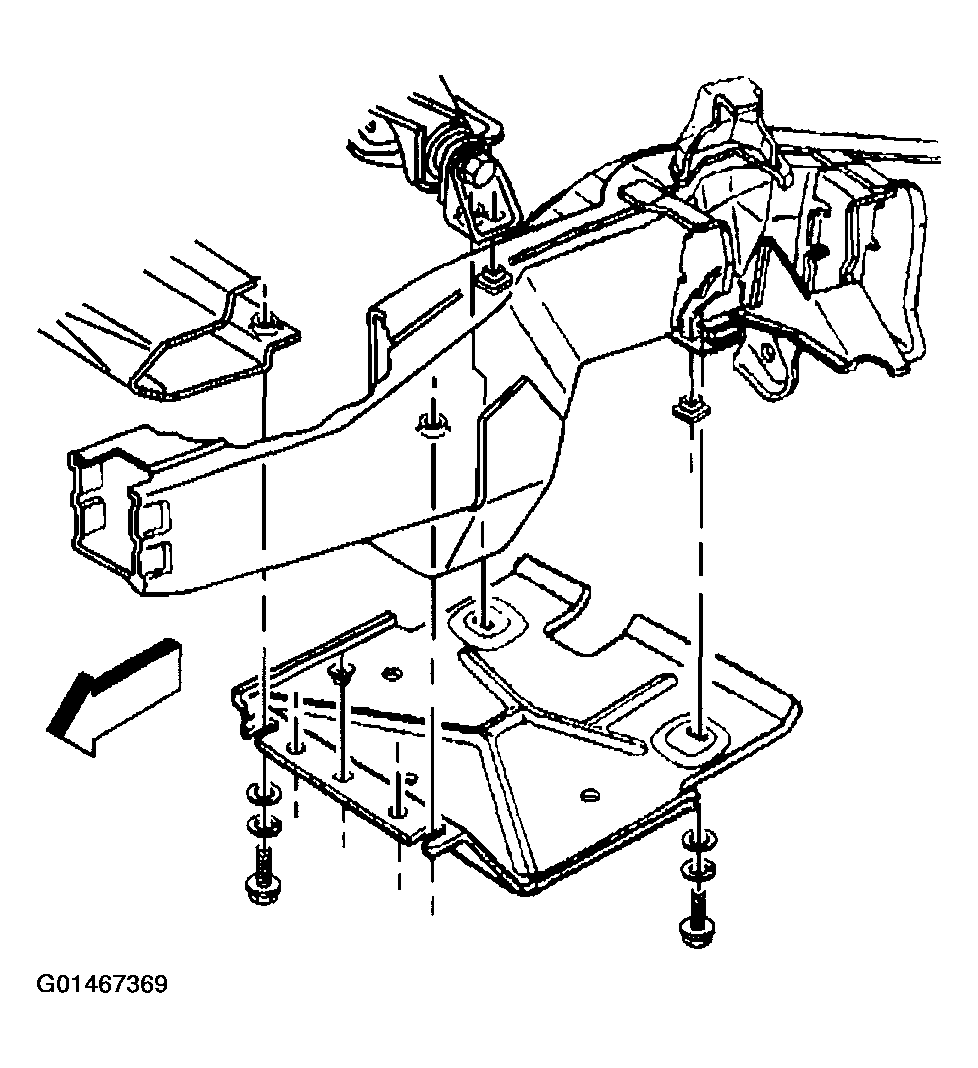

Fig 6: Differential Carrier Shield Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
