Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pitman arm to the pitman arm shaft.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the pitman arm washer and nut to the pitman arm shaft.

    Tighten

    Tighten the pitman arm nut to 250 N.m (185 lb ft).

  3. Remove power steering gear from the vise.
  4. Install the power steering gear. Refer to POWER STEERING GEAR REPLACEMENT (RWD) or POWER STEERING GEAR REPLACEMENT (4WD) in Power Steering System.

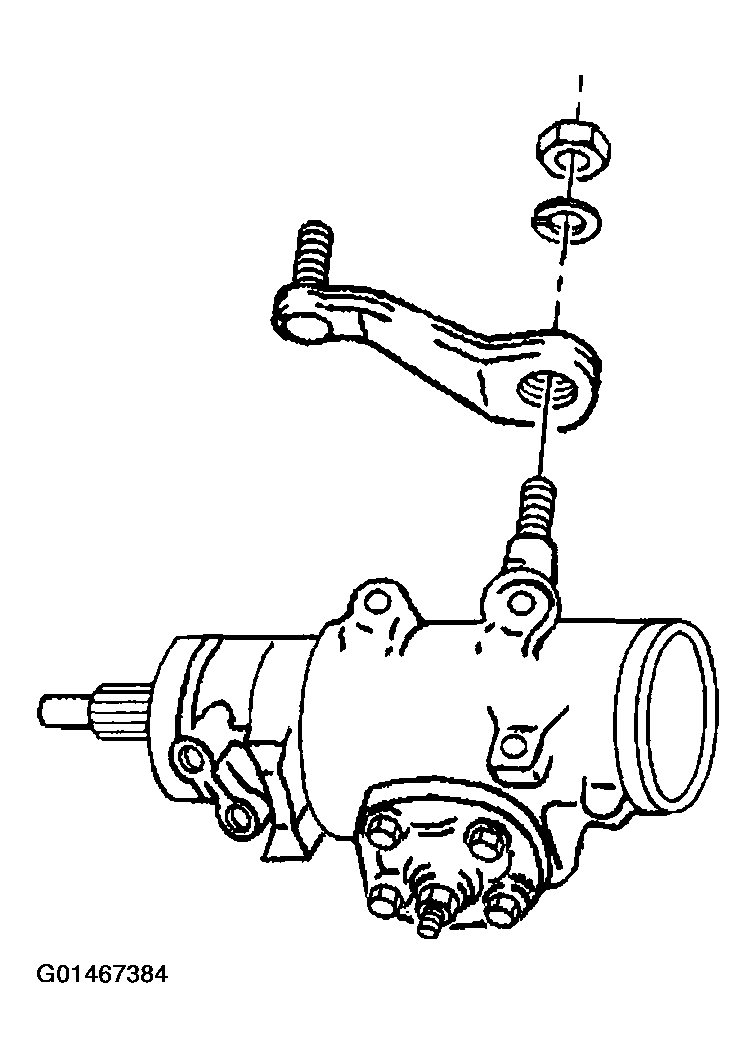

    Fig 1: Installing Pitman Arm Washer & Nut To Pitman Arm Shaft
    G01467384Courtesy of GENERAL MOTORS CORP.
